AXA VHC 2 - XTS
Image: axa-maschinenbau.de, AXA
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the AXA VHC 2 - XTS cost?
Price estimate
We do not have a price for the AXA VHC 2 - XTS that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

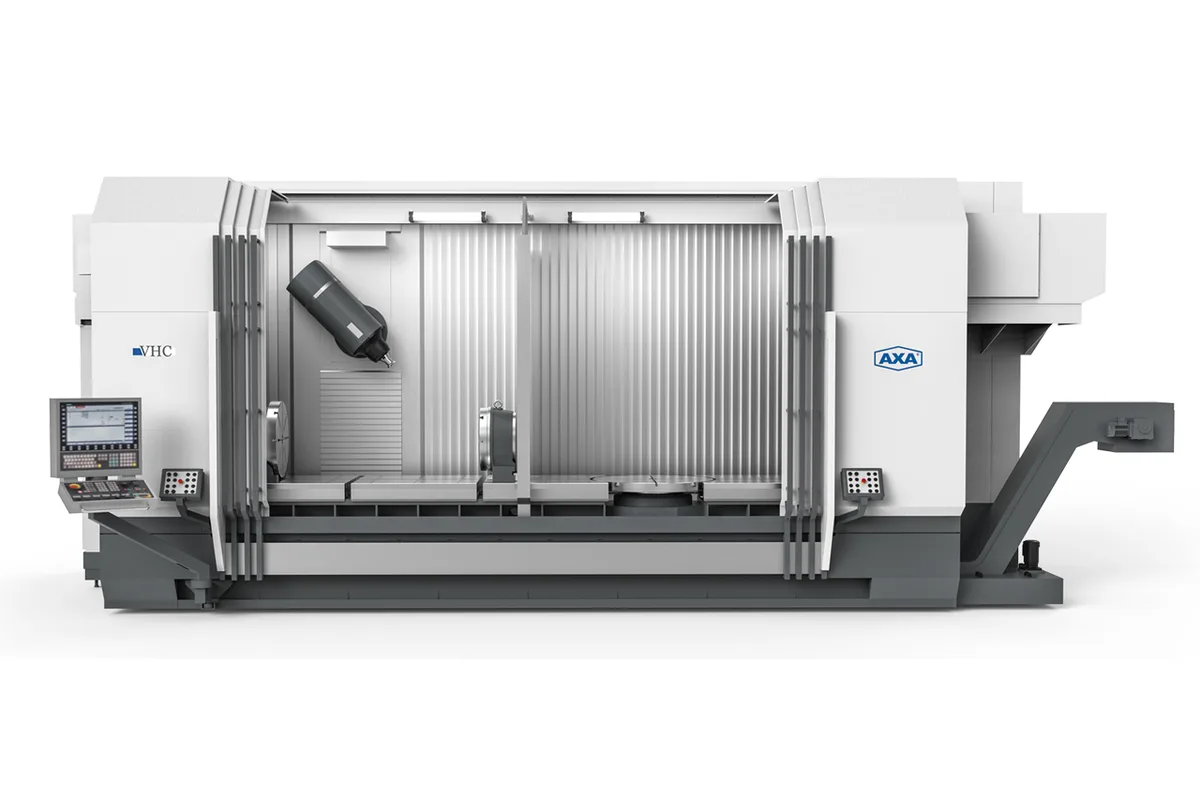

The AXA VHC 2 - XTS is a travelling column machining centre whose spindle head tilts about a B-axis, so the same SK 40 spindle works vertically from above and horizontally from the side. The head swivels ± 90° as standard, ± 100° as an option, in 0.001° increments. Travels are 600 mm (23.6 in) in Y and, in X, anything from 1,760 mm to 9,000 mm with the spindle vertical.
Z travel depends on the head position. AXA lists 850 mm with the spindle horizontal and 820 mm with it vertical. In the vertical position the spindle nose can come right down to the table, 0 to 820 mm, which the fixed-head VSC 2 - XTS with its 180 mm minimum cannot do.
On its own the tilting head gives vertical and horizontal machining of a part in one clamping. AXA states that 5 face machining or 5 axes simultaneous machining needs a rotary table in addition, and that a fully interpolating head is an optional feature. Buyers should therefore specify the rotary table and the interpolating head if simultaneous work is the goal.
The standard drive no. 110 delivers 143 Nm and 30 kW at 40% DC. Drives no. 100, 111 and 113 are optional, the last with 255 Nm. Tools come from an XTS tower magazine with 22 pockets, extendable to 216, in approx. 5 s. The fixed table is rated at 1,000 kg/m² and rapids are 40/40/30 m/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,760 - 9,000 mm (69.3 - 354.3 in) (vertical spindle) |
| Pendulum Travel Optional | (X-axis - 400) / 2 mm (vertical spindle) |
| Y Axis Travel | 600 mm (23.6 in) |
| Z Axis Travel | 850 mm (33.5 in) horizontal / 820 mm (32.3 in) vertical |
| Distance Spindle Nose to Table Vertical | 0 - 820 mm (0 - 32.3 in) |
| Distance Spindle Nose to Table Horizontal | 180 - 1,030 mm (7.1 - 40.6 in) |
| Table Size | (X-axis + 400) x Y-axis mm |
| T-Slot Width | 14 mm H9 (reference slot H7) |
| T Slot Spacing | 160 mm (6.3 in) |
| T Slot Count | 4 |
| Max Table Load | 1,000 kg/m² (205 lb/ft²) |
| Rapid Traverse Xyz | 40/40/30 m/min (1,575/1,575/1,181 ipm) in X/Y/Z |
| Max Feed Force | 9,000 N (2,023 lbf) |
| Spindle Drive Standard | No. 110 |
| Spindle Drives Optional | No. 100, 111, 113 |
| Max Spindle Speed | 6,000 rpm; optional up to 12,000 rpm (standard drive no. 110) |
| Spindle Torque | 143 Nm (105.5 lb-ft) max. at 40% DC (standard drive no. 110) |
| Spindle Motor Power | 30 kW (40.2 hp) max. at 40% DC (standard drive no. 110) |
| Optional Spindle Drive 100 | 6,000 rpm (optional up to 15,000 rpm), 95 Nm (70.1 lb-ft), 20 kW (26.8 hp) max. at 40% DC |
| Optional Spindle Drive 111 | 6,000 rpm (optional up to 12,000 rpm), 191 Nm (140.9 lb-ft), 40 kW (53.6 hp) max. at 40% DC |
| Optional Spindle Drive 113 | 6,000 rpm (optional up to 10,000 rpm), 255 Nm (188.1 lb-ft), 40 kW (53.6 hp) max. at 40% DC |
| Spindle Taper | SK 40 (DIN ISO 7388-1 AD / DIN ISO 7388-3 AD); optional BT 40, HSK A63, C6 |
| B Axis Range | ± 90°; optional ± 100° |
| B Axis Indexing | 0.001°; fully interpolating optional |
| Tool Capacity | 22; optional expandable up to 216 (e.g. 3 fully equipped towers) |
| Max Tool Diameter (full magazine) | 85 mm (3.3 in); 135 mm (5.3 in) with free adjacent pockets |
| Max Tool Length | 400 mm (15.7 in) |
| Tool Change Time | approx. 5 s |
| Positioning Accuracy | ± 0.015 mm per 1,000 mm per axis X/Y/Z with vertical spindle; optional ± 0.0075 mm |
| Repeatability | ± 0.005 mm |
Specifications sourced from axa-maschinenbau.de — verified 2026-10-05
Strengths & Limitations
Strengths
- Tilting spindle head with ± 90° B-axis swivel (± 100° optional) and 0.001° indexing
- Vertical and horizontal machining with one SK 40 spindle in one clamping
- Spindle nose reaches the table surface in the vertical position: 0 to 820 mm
- X travel to order from 1,760 mm to 9,000 mm, with optional pendulum travel
- XTS magazine with 22 pockets, expandable up to 216
Limitations
- A fully interpolating head is an optional feature; the standard head positions in 0.001° steps
- 5-axis simultaneous machining also requires a rotary table, which is not in the data sheet's standard scope
- Z travel drops from 850 mm to 820 mm with the spindle vertical
- Y travel is 600 mm with no wider option on this model
Best For
Frequently Asked Questions
01
It has three linear axes and a tilting spindle head (B-axis). According to AXA, 5 face machining or 5 axes simultaneous machining is achieved in combination with a rotary table. The head indexes in 0.001° increments as standard, and a fully interpolating head is listed as an optional feature.
02
The swivelling range of the B-axis is ± 90°, with ± 100° as an optional feature. That covers vertical machining, horizontal machining to either side and any angle between. Indexing is 0.001°.
03
X is 1,760 mm to 9,000 mm with the spindle vertical and Y is 600 mm. Z is 850 mm horizontal and 820 mm vertical. The distance between table and spindle nose is 0 to 820 mm in the vertical position and 180 mm to 1,030 mm in the horizontal position.
04
The VHC 2 - XTS50 carries an SK 50 spindle with 286 Nm and 45 kW as standard and changes tools in approx. 7 s. The VHC 2 - XTS has SK 40 with 143 Nm and 30 kW and changes tools in approx. 5 s. Y travel is 600 mm on both.
