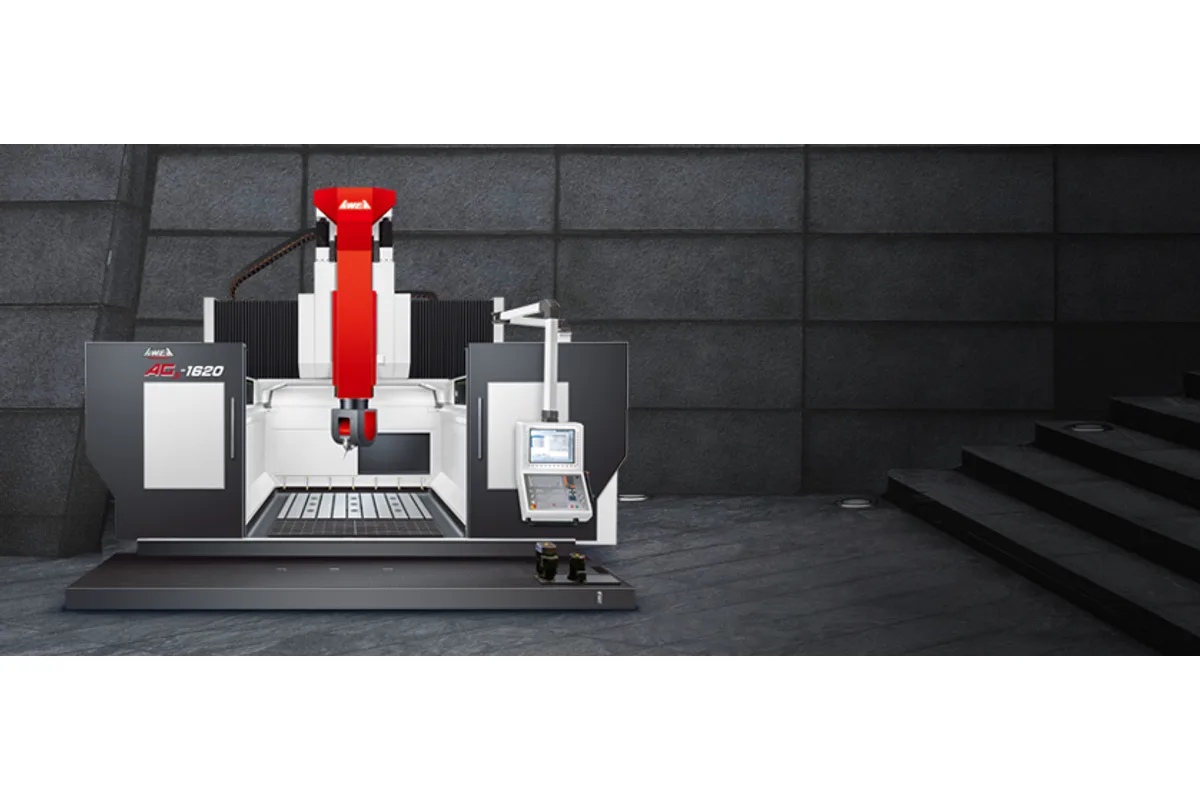

AWEA AG5-1620
Image: awea.com, AWEA
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
x axis travel
y axis travel
How much does the AWEA AG5-1620 cost?
Price estimate
We do not have a price for the AWEA AG5-1620 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The AWEA AG5-1620 is a gantry type five-axis machining center whose X and Y axes run on linear motors instead of ball screws. Travels are 1,600 mm (63.0 in) in X, 2,000 mm (78.7 in) in Y and 1,000 mm (39.4 in) in Z over a fixed 1,600 x 2,000 mm (63.0 x 78.7 in) table, so the working area is wider than it is long. The cross beam does the moving. The part stays put.
Speed is the reason to pick this machine. X and Y rapid at 60 m/min (2,362 ipm) and Z at 50 m/min (1,969 ipm). AWEA describes the linear motors as giving low wear, zero backlash and high acceleration, and HEIDENHAIN linear scales are standard. Z is built differently: two servo motors and ballscrews, arranged symmetrically, carry the headstock. The RG5-1625 covers the same X and Z strokes with 24 m/min (945 ipm) rapids, which shows how much of the AG5's character comes from its drives.
At the tool end sits an Italian made two axes head, its fork cast in GGG40 graphite iron, with B and C turned by three direct drive motors. The built-in spindle takes HSK-A63 holders, reaches 24,000 rpm and is rated 42 / 55 kW (56.3 / 73.8 hp). That combination points at aluminium, composites and finishing passes in mould steel with small cutters, not at heavy roughing. According to the maker, the spindle is thermally stable within 10 minutes of a cold start and then grows by less than 0.01 mm.
Being the short model has measurable benefits. X positioning under the VDI standard is listed as P = 0.016 over full travel with repeatability of Ps = 0.012 mm, and the machine weighs 35,000 kg (77,160 lb). The AG5-3220 is listed at P = 0.025, Ps = 0.018 mm and 45,000 kg (99,206 lb). Before ordering, check the stacked height of fixture and part against the 50 ~ 1,050 mm (2.0 ~ 41.3 in) spindle nose to table distance, and heavy tooling plates against the 3,000 kg/m² table rating.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,600 mm (63.0 in) |
| Y Axis Travel | 2,000 mm (78.7 in) |
| Z Axis Travel | 1,000 mm (39.4 in) |
| Table Size | 1,600 x 2,000 mm (63.0 x 78.7 in) |
| Max Table Load | 3,000 kg/m² |
| Distance Between Columns with Water Eliminator | 3,000 (2,805) mm |
| Distance Spindle Nose to Table | 50 ~ 1,050 mm (2.0 ~ 41.3 in) |
| Distance 90 Deg Spindle Center to Table | 373 ~ 1,373 mm (14.7 ~ 54.1 in) |
| Positioning Accuracy Jis B 6338 | ± 0.010 mm / Full Travel |
| Positioning Accuracy X VDI 3441 | P = 0.016 / Full Travel |
| Positioning Accuracy Y VDI 3441 | P = 0.020 mm / Full Travel |
| Positioning Accuracy Z VDI 3441 | P = 0.016 mm / Full Travel |
| Repeatability Jis B 6338 | ± 0.003 mm / Full Travel |
| Repeatability X VDI 3441 | Ps = 0.012 mm |
| Repeatability Y VDI 3441 | Ps = 0.015 mm |
| Repeatability Z VDI 3441 | Ps = 0.012 mm |
| Rapid Traverse Xy | 60 m/min (2,362 ipm) |
| Rapid Traverse Z | 50 m/min (1,969 ipm) |
| Cutting Feed Rate | 1 ~ 20 m/min (39 ~ 787 ipm) |
| Coolant Tank Capacity | 900 L |
| Lubrication Tank Capacity | 4.6 L |
| Hydraulic Tank Capacity | 2.7 L |
| Air Pressure Requirement | 6 ~ 8 (6) kg/cm² |
| Machine Weight | 35,000 kg (77,160 lb) |
| Max Workpiece Dimensions | 1,600 x 2,000 x 1,000 mm (63.0 x 78.7 x 39.4 in) |
| Tool Capacity | 24 T |
| Max Tool Length | 300 mm (11.8 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Max Tool Diameter (full magazine) | Ø100 / Ø125 mm (Ø3.9 / Ø4.9 in) |
| Spindle Taper | HSK-A63 |
| Spindle Power S1 S6 40 | 42 / 55 kW (56.3 / 73.8 hp) |
| Max Spindle Speed | Built-in 24,000 rpm |
| T-Slots | 28 x 200 mm |
Specifications sourced from awea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- X and Y rapids of 60 m/min (2,362 ipm) from linear motors, against 24 m/min (945 ipm) on the ball screw RG5-1625
- HEIDENHAIN linear scales are standard, and the JIS positioning accuracy is ± 0.010 mm over full travel
- 24,000 rpm built-in HSK-A63 spindle rated 42 / 55 kW (56.3 / 73.8 hp)
- Tightest X figures of the two AG5 sizes: P = 0.016 positioning and Ps = 0.012 mm repeatability under the VDI standard
- Tool magazine fully isolated from the work area, behind an auto door that opens during tool changes only
- 900 L coolant tank, larger than the 700 L tank of the RG5-1625
Limitations
- Y travel stops at 2,000 mm (78.7 in); the RG5-1625 offers 2,500 mm (98.4 in)
- HSK-A63 is the only taper in the table, while the RG5-1625 can be ordered with an HSK-A100 head
- Tools are limited to 300 mm (11.8 in) in length and 7 kg (15 lb), which restricts long-reach cutters for deep cavities
- X travel of 1,600 mm (63.0 in) is half that of the AG5-3220, so long parts need the larger machine
- At 35,000 kg (77,160 lb), foundation and rigging have to be planned before delivery
Best For
Frequently Asked Questions
01
X and Y are driven by linear motors, with rapids of 60 m/min (2,362 ipm). Z uses two symmetrically arranged servo motors and ballscrews and rapids at 50 m/min (1,969 ipm). The X axis is supported by 4 linear guideways and 12 sliding blocks, and roller type linear guide ways are used on X, Y and Z. HEIDENHAIN linear scales are standard.
02
Both have 1,600 mm (63.0 in) of X and 1,000 mm (39.4 in) of Z and both weigh 35,000 kg (77,160 lb). The AG5-1620 has 2,000 mm (78.7 in) of Y and 60 m/min (2,362 ipm) X and Y rapids. The RG5-1625 has 2,500 mm (98.4 in) of Y, 24 m/min (945 ipm) rapids and a choice of an HSK-A63 or an HSK-A100 head. Pick the AG5 for traverse speed, the RG5 for width and the bigger taper.
03
A built-in spindle in the two axes head, with an HSK-A63 taper, a top speed of 24,000 rpm and 42 / 55 kW (56.3 / 73.8 hp) at S1 / S6 40%. AWEA says other milling heads are available optionally, in high rotation speed, high torque or compact structure versions. The spindle, the B and C direct drive motors and the X and Y linear motors share a cooling system.
04
The table lists 24 T, a maximum tool length of 300 mm (11.8 in), a maximum tool weight of 7 kg (15 lb) and a maximum diameter of Ø100 / Ø125 mm (Ø3.9 / Ø4.9 in). The maker describes a 24T / 30T chain type ATC that puts no force on the spindle bearings during a change.
05
The distance between columns is given as 3,000 (2,805) mm, the figure in brackets applying with the water eliminator. AWEA states that the gantry layout needs 40% less floor space than other bridge type machines with similar travel ranges, because the tool moves on every axis and the table stays fixed.
