AWEA AT-510

Q: How much does the AWEA AT-510 cost?

The price estimate for the AWEA AT-510 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/awea-at-510#price; the request is passed to AWEA or an authorised dealer.

Specs verified 2026-10-04 · awea.com Updated 2026-10-04

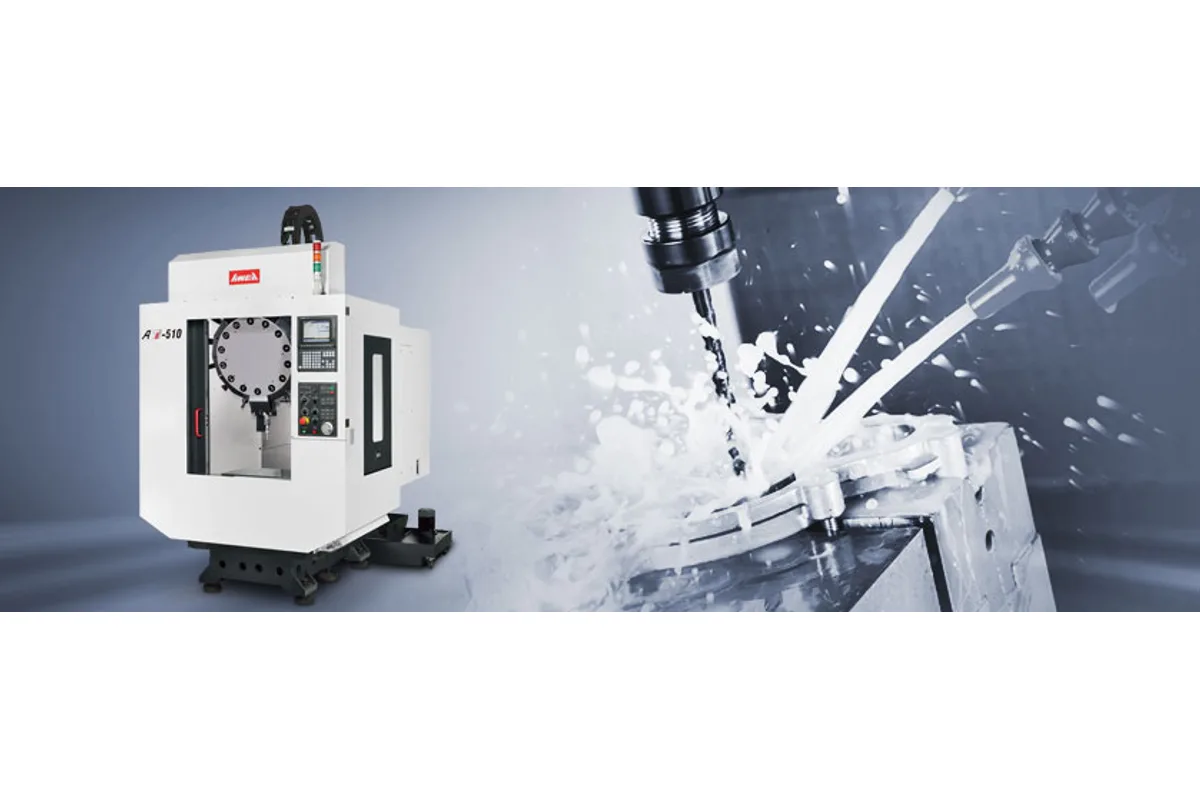

Image: awea.com, AWEA

Key Specifications

Max Spindle

12,000 rpm

Spindle Taper

BT 30

Tool Capacity

14 T

Table Size

610 x 400 mm (24.0 x 15.7 in)

Spindle Power

3.7 / 5.5 kW (5.0 / 7.4 hp)

x axis travel

510 mm (20.1 in)

How much does the AWEA AT-510 cost?

Price estimate

Uncertain

We do not have a price for the AWEA AT-510 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The AWEA AT-510 is a BT 30 drilling and tapping center with travels of 510 mm (20.1 in) in X, 400 mm (15.7 in) in Y and 330 mm (13.0 in) in Z. It is the only 30-taper machine in AWEA's listing and by far the smallest: 2,000 kg (4,409 lb), on a floor area of 1,520 x 2,180 mm according to the dimension row, with a 15 kVA supply.

Everything about it is tuned for short cycles on small parts. The direct drive spindle runs at 12,000 rpm on a 3.7 / 5.5 kW (5.0 / 7.4 hp) motor, and AWEA offers 15,000 and 20,000 rpm versions. All three axes ride on roller type linear guide ways. AWEA states an X and Y feed rate of up to 50 m/min, with 60 m/min available as an option; the specification table prints the rapid figures without a unit, so the statement in the maker's text is the one to rely on. Cutting feed is 20 m/min (787 ipm).

The tool changer holds 14 tools and uses a synchronous unclamping design that picks the shortest path between pockets. Tool limits are small, as expected at this taper: 3 kg (7 lb), 200 mm (7.9 in) long, Ø90 mm with neighbours in place. The table is 610 x 400 mm (24.0 x 15.7 in) and carries 250 kg (551 lb).

Three controls are listed: FANUC Oi -MD, MITSUBISHI M-70 and SIEMENS 828D. Chips are washed out by a high pressure water jet system into a rear chip collector, and both the collector and the coolant tank detach for cleaning. The tank holds 160 liter.

Full Specifications

Parameter	Value
X Axis Travel	510 mm (20.1 in)
Y Axis Travel	400 mm (15.7 in)
Z Axis Travel	330 mm (13.0 in)
Table Size	610 x 400 mm (24.0 x 15.7 in)
Max Table Load	250 kg (551 lb)
Distance Spindle Nose to Column	473 mm (18.6 in)
Distance Spindle Nose to Table Center	100 ~ 450 mm (3.9 ~ 17.7 in)
Cutting Feed Rate	20 m/min (787 ipm)
Tool Capacity	14 T
Max Tool Length	200 mm (7.9 in)
Max Tool Weight	3 kg (7 lb)
Max Tool Diameter (full magazine)	Ø90 / Ø150 mm (Ø3.5 / Ø5.9 in)
Positioning Accuracy Jis B 6338	± 0.003 mm / 300 mm
Positioning Accuracy Jis 6336 2	P = 0.01 mm
Repeatability Jis 6336 2	± 0.002 mm
Repeatability VDI 3441	Ps ≤ 0.008 mm
CNC Control	FANUC Oi -MD / MITSUBISHI M-70 / SIEMENS 828D
Power Requirement	15 kVA
Air Pressure Requirement	6 kg/cm²
Coolant Tank Capacity	160 liter (1 HP)
Machine Weight	2,000 kg (4,409 lb)
Machine Dimensions	1,520 x 2,180 x 2,770 mm (59.8 x 85.8 x 109.1 in)
Spindle Taper	BT 30
Spindle Motor Power	3.7 / 5.5 kW (5.0 / 7.4 hp)
Max Spindle Speed	12,000 rpm

Specifications sourced from awea.com — verified 2026-10-04

Strengths & Limitations

Strengths

Direct drive 12,000 rpm BT 30 spindle, with 15,000 and 20,000 rpm versions offered
X and Y feed up to 50 m/min on roller type linear guide ways, 60 m/min optional
Small installation: 2,000 kg (4,409 lb) and 15 kVA
Choice of FANUC Oi -MD, MITSUBISHI M-70 or SIEMENS 828D control
Positioning accuracy of ± 0.003 mm / 300 mm and repeatability of ± 0.002 mm to JIS standards

Limitations

Only 14 tool pockets in the magazine
Tools limited to 3 kg (7 lb) and 200 mm (7.9 in) in length
Spindle motor of 3.7 / 5.5 kW (5.0 / 7.4 hp) rules out heavy milling
Z travel of 330 mm (13.0 in) and a 250 kg (551 lb) table load restrict part and fixture height
The specification table gives the rapid feed row without a unit

Best For

Drilling and tapping of small aluminium and die-cast parts Electronics and automotive components in volume Cells where floor space per spindle is the constraint Light milling at 12,000 rpm and above

Frequently Asked Questions

01 What are the travels and table size of the AWEA AT-510?

Travels are 510 mm (20.1 in) in X, 400 mm (15.7 in) in Y and 330 mm (13.0 in) in Z. The table is 610 x 400 mm (24.0 x 15.7 in) with a load capacity of 250 kg (551 lb). The machine measures 1,520 x 2,180 x 2,770 mm (59.8 x 85.8 x 109.1 in) and weighs 2,000 kg (4,409 lb).

02 What spindle speeds are available on the AT-510?

The table lists 12,000 rpm with a BT 30 taper and a 3.7 / 5.5 kW (5.0 / 7.4 hp) motor. AWEA states that the direct drive spindle is offered at 12,000 / 15,000 / 20,000 rpm. The maker says the direct drive layout blocks motor heat to reduce thermal deformation.

03 How many tools does the AT-510 hold?

14. The synchronous unclamping type tool changer calculates the shortest tool change path. Tools can be up to 200 mm (7.9 in) long from the gauge line and 3 kg (7 lb); maximum diameter is Ø90 mm, or Ø150 mm with adjacent pockets empty.

04 Which CNC controls can the AT-510 be ordered with?

AWEA lists FANUC Oi -MD, MITSUBISHI M-70 and SIEMENS 828D. Whichever is chosen, the three axes are driven by absolute servo motors coupled directly to the screws, according to the maker's description.

05 How does the AT-510 handle chips?

A high pressure water jet chip removal system clears the working zone, and a large chip trough carries chips to a collector at the back of the machine. The chip collector and the 160 liter coolant tank are detachable for maintenance. A chips flush coolant system is an option.
