AWEA HTP-6041

Q: How much does the AWEA HTP-6041 cost?

The price estimate for the AWEA HTP-6041 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/awea-htp-6041#price; the request is passed to AWEA or an authorised dealer.

Specs verified 2026-10-04 · awea.com Updated 2026-10-04

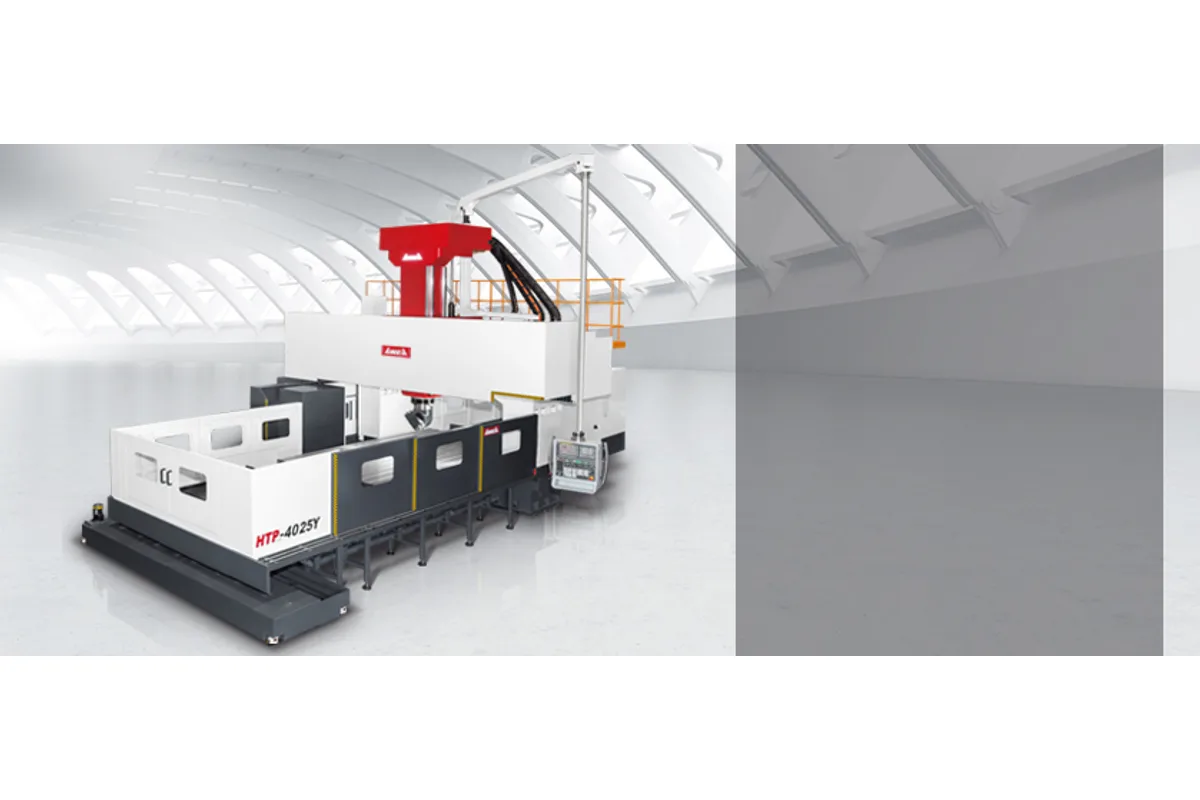

AWEA HTP series bridge type machining center (HTP-4025 shown)

Image: awea.com, AWEA

Key Specifications

Max Spindle

Gear Spindle 4,000 rpm

Spindle Taper

BBT50 (ISO 50)

Tool Capacity

32 T (Opt. 40 / 60 / 90 / 120)

Table Size

6,020 x 3,000 mm (237.0 x 118.1 in)

Spindle Power

22 / 26 kW (29.5 / 34.9 hp) (Opt. 30 / 37)

x axis travel

6,000 mm (236.2 in)

How much does the AWEA HTP-6041 cost?

Price estimate

Uncertain

We do not have a price for the AWEA HTP-6041 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Among the wide-frame HTP machines, the AWEA HTP-6041 is the first to reach the series' top table rating: 20,000 kg (44,092 lb) on a 6,020 x 3,000 mm (237.0 x 118.1 in) table, with 6,000 mm (236.2 in) of X travel and 4,300 mm (169.3 in) between the columns. It weighs 53,000 kg (116,843 lb).

Big work means big tooling, and the tool rows set firm limits. Each tool may weigh 20 kg (44 lb) and measure 350 mm (13.8 in) in length, with "Opt. 400" printed beside the length. Diameter is given as Ø127 / Ø215 mm (Ø5.0 / Ø8.5 in). The magazine holds 32 T as delivered; 40, 60, 90 and 120 are the listed alternatives. A face mill or boring bar beyond those limits has to be loaded by hand, which on a machine with 1,000 mm (39.4 in) of Z travel is worth planning for.

The spindle that drives those tools is a gear head type rated 22 / 26 kW (29.5 / 34.9 hp) at up to 4,000 rpm, with a BBT50 (ISO 50) nose. AWEA points to a short transmission shaft in the gear head as the reason it suits heavy cutting.

Expect unhurried axis motion. All three rapids are 10 m/min (394 ipm) and cutting feed is 1 ~ 5 m/min (39 ~ 197 ipm). Accuracy under VDI is P ≤ 0.050 mm over full travel with Ps ≤ 0.035 mm.

Full Specifications

Parameter	Value
X Axis Travel	6,000 mm (236.2 in)
Y Axis Travel	Opt.4,100 mm (4,800)
Z Axis Travel	1,000 mm (39.4 in) (Opt. 1,200 / 1,400)
Table Size	6,020 x 3,000 mm (237.0 x 118.1 in)
Max Table Load	20,000 kg (44,092 lb)
Distance Between Columns	4,300 mm (169.3 in)
Distance Spindle Nose to Table	200 ~ 1,200 mm (7.9 ~ 47.2 in) (Opt. 200 ~ 1,400 / 200 ~ 1,600)
Spindle Taper	BBT50 (ISO 50)
Spindle Motor Power	22 / 26 kW (29.5 / 34.9 hp) (Opt. 30 / 37)
Max Spindle Speed	Gear Spindle 4,000 rpm
Rapid Traverse X	10 m/min (394 ipm)
Rapid Traverse Yz	10 m/min (394 ipm)
Cutting Feed Rate	1 ~ 5 m/min (39 ~ 197 ipm)
Tool Capacity	32 T (Opt. 40 / 60 / 90 / 120)
Max Tool Length	350 mm (13.8 in) (Opt. 400)
Max Tool Weight	20 kg (44 lb)
Max Tool Diameter (full magazine)	Ø127 / Ø215 mm (Ø5.0 / Ø8.5 in)
Positioning Accuracy Jis B 6338	± 0.015 mm / Full Travel
Positioning Accuracy VDI 3441	P ≤ 0.050 mm / Full Travel
Repeatability Jis B 6338	± 0.003 mm
Repeatability VDI 3441	Ps ≤ 0.035 mm
Coolant Tank Capacity	1,300 liter
Lubrication Tank Capacity	6 liter
Hydraulic Tank Capacity	100 liter
Air Pressure Requirement	5 ~ 8 kg/cm²
Machine Weight	53,000 kg (116,843 lb)

Specifications sourced from awea.com — verified 2026-10-04

Strengths & Limitations

Strengths

20,000 kg (44,092 lb) table load with 4,300 mm (169.3 in) between the columns
32 T magazine as standard, with 40 / 60 / 90 / 120 as options
Tools up to 20 kg (44 lb) and Ø127 / Ø215 mm (Ø5.0 / Ø8.5 in)
Gear head spindle with a short, highly rigid transmission shaft and BBT50 (ISO 50) dual contact taper
53,000 kg (116,843 lb), against 64,000 kg (141,093 lb) for the HTP-7041 with the same table load

Limitations

Standard tool length is 350 mm (13.8 in), short for deep boring under 1,000 mm (39.4 in) of Z
P ≤ 0.050 mm and Ps ≤ 0.035 mm under VDI, the widest figures of the series
Rapids of 10 m/min (394 ipm) on X, Y and Z
Y travel is listed only as "Opt.4,100 mm (4,800)"

Best For

Large-diameter face milling in steel with 50-taper cutters up to Ø215 mm Wide, heavy parts up to 20,000 kg (44,092 lb) Jobs with long tool lists, using the larger magazine options Frames and bases about 6,000 x 3,000 mm

Frequently Asked Questions

01 What are the tool limits of the HTP-6041?

Maximum tool weight is 20 kg (44 lb). Maximum length is 350 mm (13.8 in), with "Opt. 400" in the table. Maximum diameter is printed as Ø127 / Ø215 mm (Ø5.0 / Ø8.5 in); the table does not label the two values, so check with AWEA which pocket conditions each applies to.

02 How many tools can the HTP-6041 carry?

The standard magazine holds 32 tools. AWEA lists 40T / 60T / 90T / 120T magazines as optional. If the machine is ordered with the vertical / horizontal ATC system, tools can be changed in both head positions; that system is an option too.

03 How does the HTP-6041 compare with the HTP-6033?

The table, 6,020 x 3,000 mm (237.0 x 118.1 in), and its 20,000 kg (44,092 lb) rating are the same. The HTP-6041 has 4,300 mm (169.3 in) between the columns, 10 m/min (394 ipm) Y and Z rapids, a 1,300 liter coolant tank and weighs 53,000 kg (116,843 lb). The HTP-6033 has 3,500 mm (137.8 in), 12 m/min (472 ipm), 1,050 liter and 51,000 kg (112,434 lb).

04 What does BBT50 mean on the HTP-6041?

It is the dual contact form of the 50 taper. AWEA explains that the BBT spindle keeps both the taper and the face in contact with the tool holder, which stiffens the joint for heavy cutting. The table gives the taper as BBT50 (ISO 50).
