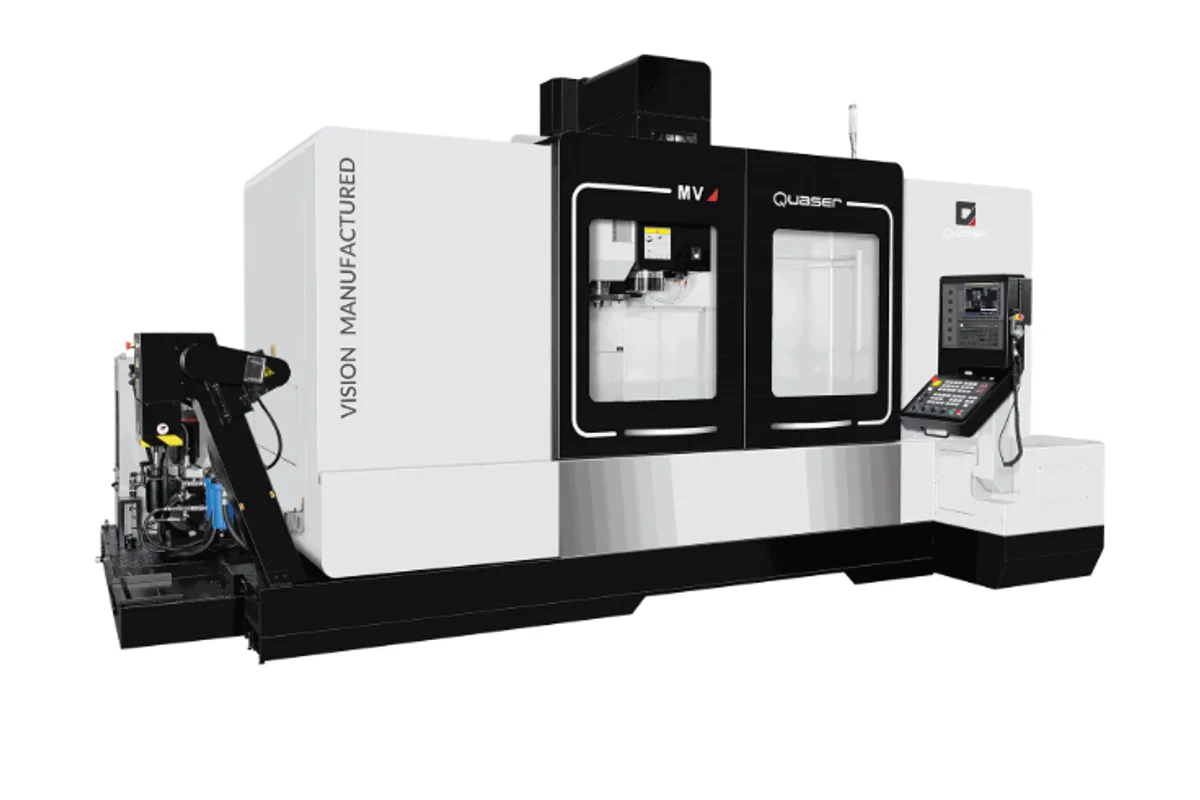

Quaser MV6 (#50)
Image: quaser.com, Quaser
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
x axis travel
y axis travel
How much does the Quaser MV6 (#50) cost?
Price estimate
We do not have a price for the Quaser MV6 (#50) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Quaser describes the MV6 as a machine for both high-speed work and high strength material. The Quaser MV6 (#50) is the half of that statement that deals with strength: a 50 taper vertical machining center with 2,040 mm (80.3") of X travel, the largest travel in the MV family.
Its spindle range reaches lower than any other MV. The 50 taper column is listed at 6K ~ 15K, where the MV5 (#50) and MV4 (#50) begin at 7.5K. A lower-speed option on a machine this size points at large-diameter cutters in tough alloys, though without published torque figures that remains an inference to confirm with Quaser.
The structure is described in more detail than on most of the maker's pages. The Y-axis runs on 4 large linear guides installed on a one piece base. The column is extra wide, with a shoulder meant to keep its rigidity and geometric accuracy against the weight of the tool magazine. That matters more here than on the MV6 (#40), because 50 taper tools up to 350 mm (13.8") long and 200 mm (7.9") across put real weight in that magazine.
Work range: an 800 mm (31.5") Y travel, 661 mm (26.0") of Z, and a 2,250 x 800 mm (88.6" x 31.5") table carrying 2,000 kg (4,409 lbs). The standard magazine has 30 positions. Chips leave through a 6 piece auger system and an external lift up conveyor.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 2,250 x 800 mm (88.6" x 31.5") |
| X Axis Travel | 2,040 mm (80.3") |
| Y Axis Travel | 800 mm (31.5") |
| Z Axis Travel | 661 mm (26.0") |
| Max Table Load | 2,000 kg (4,409 lbs) |
| Spindle Taper | 50 taper |
| Max Spindle Speed | 6K ~ 15K |
| Tool Capacity | 30(std.) |
| Max Tool Diameter (full magazine) | 125 mm (4.9") |
| Max Tool Diameter Neighbor Pots Empty | 200 mm (7.9") |
| Max Tool Length | 350 mm (13.8") |
Specifications sourced from quaser.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 50 taper spindle on the longest MV: 2,040 mm (80.3") of X travel
- Spindle range listed from 6K, the lowest starting point among the 50 taper MV models
- Tools up to 350 mm (13.8") long and 200 mm (7.9") in diameter with neighboring pots empty
- Extra wide column and a one piece base carrying 4 large Y-axis linear guides
- 800 mm (31.5") of Y travel across a 2,250 x 800 mm (88.6" x 31.5") table
Limitations
- Only 30 tools as standard, against 48 on the MV6 (#40)
- 2,000 kg (4,409 lbs) table load is spread over a table more than two metres long
- 661 mm (26.0") of Z travel restricts tall workpieces under long tools
- Torque and power are not published, so the low-speed spindle cannot be judged from the page
Best For
Frequently Asked Questions
01
A 50 taper spindle with a maximum speed listed as 6K ~ 15K. Quaser says the MV6 combines high speed, high torque and high chip removal rates, but the product page gives no torque or power figures, so request the chart for the spindle quoted.
02
Maximum tool diameter is 125 mm (4.9") with all pots filled and 200 mm (7.9") when the neighboring pots are empty. Maximum tool length is 350 mm (13.8"). The magazine holds 30 tools as standard.
03
The table is 2,250 x 800 mm (88.6" x 31.5") and the load capacity is 2,000 kg (4,409 lbs). Travels are 2,040 mm (80.3") in X, 800 mm (31.5") in Y and 661 mm (26.0") in Z.
04
The MV6 (#50) is longer and wider: 2,040 mm (80.3") of X against 1,524 mm (60.0") on the MV5 (#50), and 800 mm (31.5") of Y against 700 mm (27.6"). Z is 661 mm (26.0"), where the MV5 (#50) has 610 mm (24.0"). Table load is 2,000 kg (4,409 lbs) on both.
