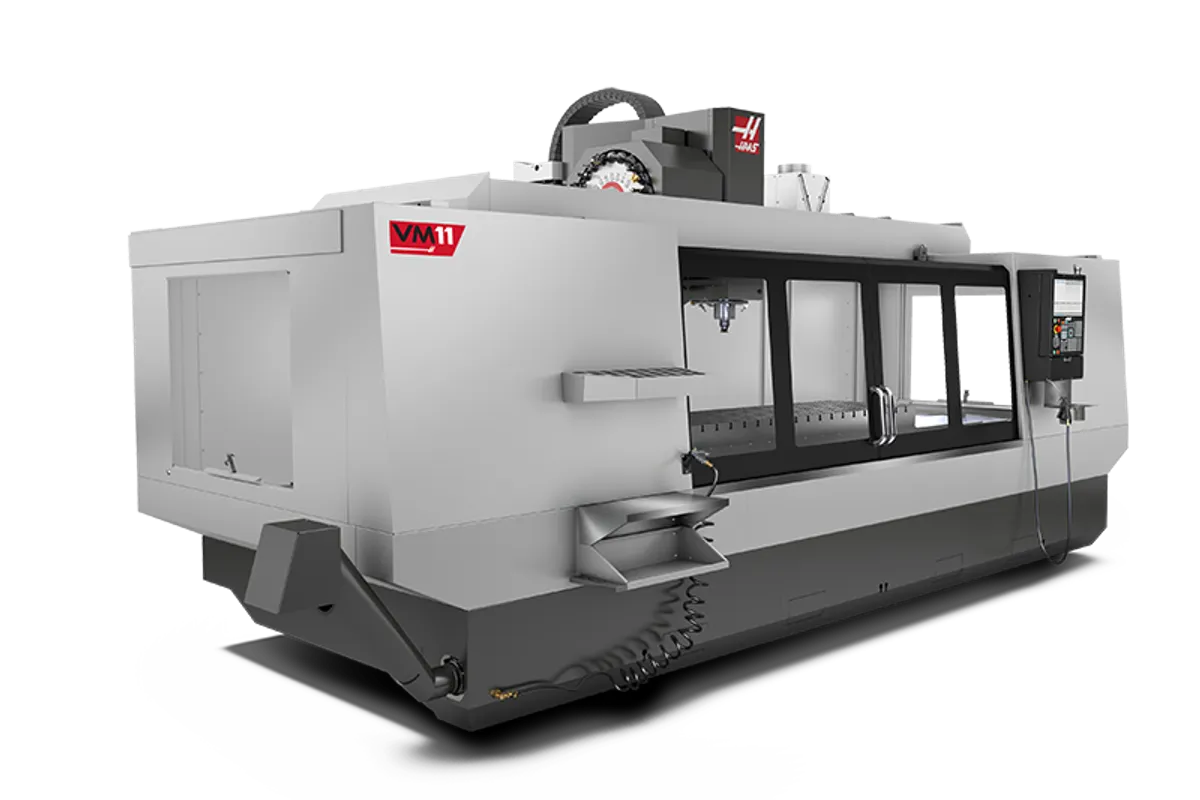

Haas VM-11
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Haas VM-11 cost?
Manufacturer list price
As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.
Overview
The Haas VM-11 is a 120 in (3,048 mm) mold machine with more Y travel than table: 40 in (1,016 mm) of Y over a table 28 in (711 mm) wide. X travel matches the table length at 120 in, Z is 30 in (762 mm), and the spindle is a 30 hp (22.4 kW), 12,000 rpm inline direct-drive 40-taper.
That Y figure is the whole difference from the VM-10, which has the same 120 × 28 in (3,048 × 711 mm) table and 32 in (813 mm) of Y. With 40 in of stroke across a 28 in table, the spindle can work on plates and fixture sub-plates that overhang the table edges, or get to both sides of a tall fixture without the part being re-clamped. Check how an overhanging part is supported before counting on it, because the 4,000 lb (1,814 kg) table load applies to everything the table carries.
X and Y thrust are both 4,100 lbf (18,238 N), with 5,600 lbf (24,910 N) on Z. The cutting feed limit is 360 ipm (9.1 m/min) and X rapids are held to the same figure; Y and Z rapid at 600 ipm (15.2 m/min). Tool changes take 1.83 s tool-to-tool and 3.28 s chip-to-chip, from a 30+1 side-mount changer that accepts tools up to 16 in (406 mm) long.
The wider Y travel comes with more machine. Shipping weight is 33,400 lb (15,150 kg) against 30,100 lb (13,654 kg) for the VM-10, and the domestic pallet measures 288 × 120 × 128.5 in (732 × 305 × 326 cm). With the EC option or the optional 50+1 tool changer Haas lists 33,700 lb (15,287 kg). The starting price is US$377,995.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 120 in (3,048 mm) |
| Y-Axis Travel | 40 in (1,016 mm) |
| Z-Axis Travel | 30 in (762 mm) |
| Spindle Nose to Table (max) | 34 in (864 mm) |
| Spindle Nose to Table (min) | 4 in (102 mm) |
| Spindle Motor Power | 30 hp (22.4 kW) |
| Max Spindle Speed | 12,000 rpm |
| Spindle Torque | 90 ft-lbf @ 2,000 rpm (122 N·m @ 2,000 rpm) |
| Spindle Drive | Inline Direct-Drive |
| Spindle Taper | CT40 / BT40 / HSK-A63 |
| Spindle Bearing Lubrication | Air / Oil Injection |
| Spindle Cooling | Coolant Jacket |
| Table Size | 120 × 28 in (3,048 × 711 mm) |
| T-Slot Width | 0.626 in to 0.63 in (15.9 mm to 16 mm) |
| T-Slot Center Distance | 4.92 in (125 mm) |
| T-Slots | 5 in X and 24 in Y |
| Max Table Load | 4,000 lb (1,814 kg) |
| Max Cutting Feedrate | 360 ipm (9.1 m/min) |
| Rapid Traverse X | 360 ipm (9.1 m/min) |
| Rapid Traverse Y | 600 ipm (15.2 m/min) |
| Rapid Traverse Z | 600 ipm (15.2 m/min) |
| Max Thrust X | 4,100 lbf (18,238 N) |
| Max Thrust Y | 4,100 lbf (18,238 N) |
| Max Thrust Z | 5,600 lbf (24,910 N) |
| Tool Changer Type | SMTC |
| Tool Capacity | 30+1 |
| Max Tool Diameter (full magazine) | 2.5 in (64 mm) |
| Max Tool Diameter (adjacent pockets empty) | 5 in (127 mm) |
| Max Tool Diameter Extra Large Adjacent Empty | 6 in (152 mm) |
| Max Tool Length | 16 in (406 mm) |
| Max Tool Weight | 12 lb (5.4 kg) |
| Tool Change (tool-to-tool) | 1.83 s |
| Tool Change (chip-to-chip) | 3.28 s |
| Coolant Capacity | 95 gal (360 L) |
| Air Required | 4 scfm @ 100 psi (113 L/min @ 6.9 bar) |
| Inline Air Hose | 3/8 in |
| Air Coupler | 3/8 in |
| Air Pressure Min | 80 psi (5.5 bar) |
| Electrical Service (low voltage) | 220 VAC 3-phase, 70 A |
| Electrical Service (high voltage) | 440 VAC 3-phase, 35 A |
| Shipping Domestic Pallet | 288 × 120 × 128.5 in (732 × 305 × 326 cm) |
| Shipping Export Crate | 288 × 123 × 130.5 in (732 × 312 × 331 cm) |
| Machine Weight | 33,400 lb (15,150 kg) |
| Shipping Domestic Pallet with Ec Option | 288 × 120 × 135 in (732 × 305 × 343 cm) |
| Shipping Export Crate with Ec Option | 288 × 123 × 139 in (732 × 312 × 352 cm) |
| Machine Weight with Ec Option | 33,700 lb (15,287 kg) |
| Shipping Domestic Pallet with 50 plus 1 SMTC | 288 × 120 × 138 in (732 × 305 × 351 cm) |
| Shipping Export Crate with 50 plus 1 SMTC | 288 × 123 × 139 in (732 × 312 × 352 cm) |
| Machine Weight with 50 plus 1 SMTC | 33,700 lb (15,287 kg) |
| Shipping Domestic Pallet with Ec Option 50 plus 1 SMTC | 288 × 120 × 141 in (732 × 305 × 358 cm) |
| Shipping Export Crate with Ec Option 50 plus 1 SMTC | 288 × 123 × 143 in (732 × 313 × 364 cm) |
| Machine Weight with Ec Option 50 plus 1 SMTC | 33,700 lb (15,287 kg) |
Specifications sourced from haascnc.com — verified 2026-10-02
Strengths & Limitations
Strengths
- 40 in (1,016 mm) of Y travel over a 28 in (711 mm) wide table, so the spindle covers more than the full table width
- 4,100 lbf (18,238 N) of thrust on both X and Y
- 1.83 s tool-to-tool and 3.28 s chip-to-chip with a 30+1 side-mount changer
- 120 in (3,048 mm) of X travel, with 24 slots in Y and 5 in X for locating fixtures
- Air/oil injection bearing lubrication and a coolant jacket on a 12,000 rpm spindle
Limitations
- The table is still 28 in (711 mm) wide, so the extra Y travel works beyond the edges rather than over more table
- X rapids are limited to 360 ipm (9.1 m/min)
- Heavier than the VM-10 at 33,400 lb (15,150 kg) against 30,100 lb (13,654 kg), which matters for rigging and floor loading
- Table load is 4,000 lb (1,814 kg), the same as the VM-10 and the VM-12
- Peak torque of 90 ft-lbf (122 N·m) at 2,000 rpm; the VM-11/50 has 350 ft-lbf (475 N·m) at 900 rpm
Best For
Frequently Asked Questions
01
The table is 120 × 28 in (3,048 × 711 mm) and Y travel is 40 in (1,016 mm), so the spindle's working range is wider than the surface under it. In practice that means full coverage of the table plus reach onto work or sub-plates that overhang the edges. The 4,000 lb (1,814 kg) table load still applies, and anything hanging off the table needs its own support against cutting forces.
02
Y travel and weight. The VM-11 has 40 in (1,016 mm) of Y and ships at 33,400 lb (15,150 kg); the VM-10 has 32 in (813 mm) of Y and ships at 30,100 lb (13,654 kg). X and Z travel, the 120 × 28 in (3,048 × 711 mm) table, the 30 hp (22.4 kW) 12,000 rpm spindle, the feed rates and the 4,000 lb (1,814 kg) table load are listed the same for both.
03
The VM-12 is longer and narrower in travel: 150 in (3,810 mm) of X with 32 in (813 mm) of Y on a 150 × 28 in (3,810 × 711 mm) table. The VM-11 has 120 in (3,048 mm) of X with 40 in (1,016 mm) of Y. Spindle, table load and feed rates are listed the same, and the VM-12 ships at 36,300 lb (16,466 kg) against 33,400 lb (15,150 kg).
04
Base shipping weight is 33,400 lb (15,150 kg). Haas lists 33,700 lb (15,287 kg) for the machine with the EC option, with the optional 50+1 side-mount tool changer, or with both. The standard domestic pallet is 288 × 120 × 128.5 in (732 × 305 × 326 cm); with the 50+1 changer the pallet height rises to 138 in (351 cm).
05
Haas lists three taper choices: CT40, BT40 or HSK-A63. The changer holds 30+1 tools up to 16 in (406 mm) long and 12 lb (5.4 kg). Diameter is limited to 2.5 in (64 mm) with a full magazine and 5 in (127 mm) with adjacent pockets empty, and Haas gives 6 in (152 mm) for extra-large tools with adjacent pockets empty.
