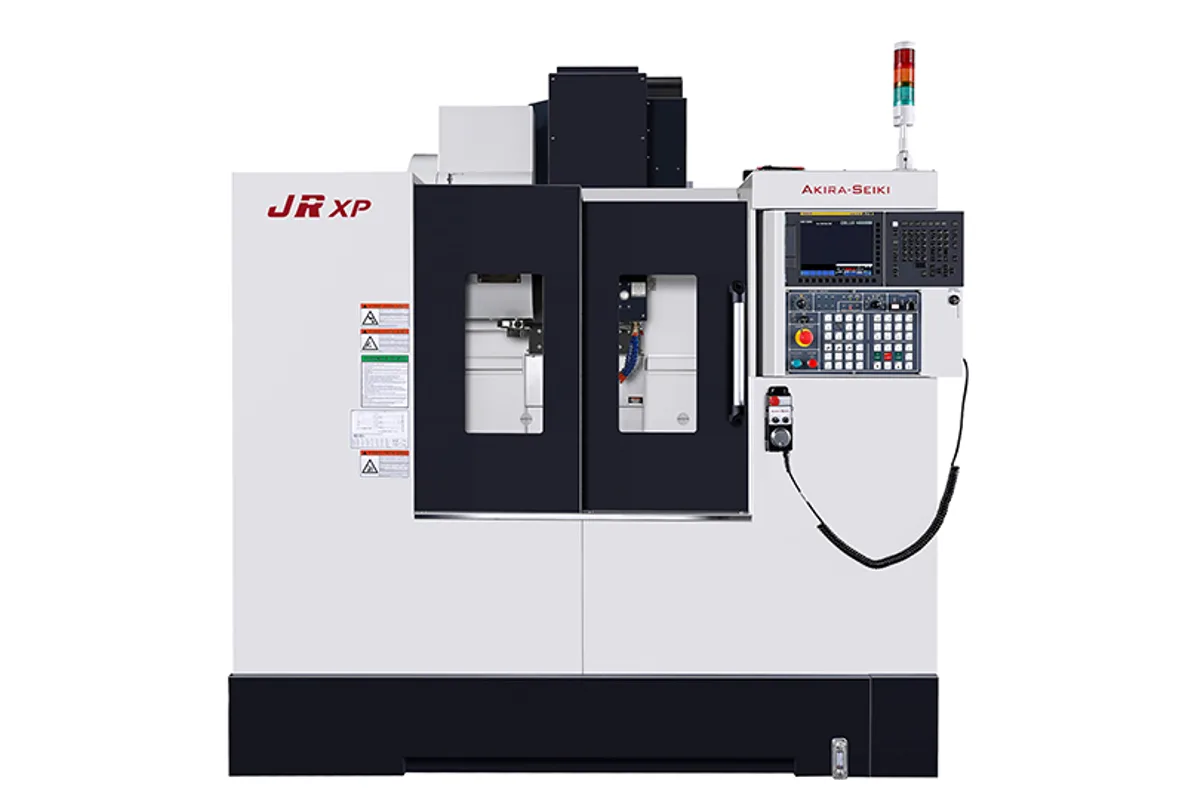

Akira Seiki JR XP
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Akira Seiki JR XP cost?
Price estimate
We do not have a price for the Akira Seiki JR XP that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Akira Seiki JR XP is the smallest vertical machining center in the maker's JR / SR family: 410 mm (16.1 in) of X travel, 430 mm (16.9 in) of Y and 460 mm (18.1 in) of Z over a 560 x 380 mm (22 x 15 in) table. Y is longer than X here, which is unusual and says what the machine is for. It takes one vise or one small fixture, not a row of them.
The spindle is a BT40 unit that runs to 11,000 rpm on 12 HP (8.9 kW) peak. That is the lowest power figure in the family; the SR2 XP, on the same Y and Z travels, has 15 HP (11.2 kW). A 40-taper spindle on a machine this small still means standard tooling and reasonable rigidity for steel, but the motor sets the limit on roughing.
Tool storage is 16T, with tools up to 75 mm (3 in) in diameter, 250 mm (9.8 in) long and 7 kg (15 lb), and a 2.2 s tool change. Table load is listed twice: 360 kg (794 lb) standard and 432 kg (953 lb) maximum.
Floor space is 2,400 x 1,935 mm (94 x 76 in), and the machine asks for 20 kVA and 0.5 MPa (72.5 psi) of air. The control is the AKIRA Mi:845, which the maker describes as Fanuc G code compatible. Chips leave by chip screw into a 150 L (39.6 gal) coolant system.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 (Fanuc G code compatible) |
| X Axis Travel | 410 mm (16.1 in) |
| Y Axis Travel | 430 mm (16.9 in) |
| Z Axis Travel | 460 mm (18.1 in) |
| Distance Spindle Nose to Table | 75~535 mm (3~21 in) |
| Spindle Center to Column Cover | 435 mm (17 in) |
| Table Size | 560 x 380 mm (22 x 15 in) |
| T-Slots | 16 mm x 80 mm pitch x 4 slots |
| Max Table Load | 432 kg (953 lb) |
| Standard Table Load | 360 kg (794 lb) |
| Spindle Motor Power | 12 HP (8.9 kW) |
| Max Spindle Speed | 11,000 rpm |
| Spindle Taper | BT40 |
| Cutting Feed Rate | 12 / 12 / 10 m/min (472 / 472 / 394 ipm) |
| Positioning Accuracy | 0.01 mm (0.00039 in) |
| Repeatability | ±0.003 mm (±0.00012 in) |
| Tool Capacity | 16T |
| Max Tool Diameter (full magazine) | 75 mm (3 in) |
| Max Tool Diameter Without Adjacent Tools | 150 mm (5.9 in) |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Tool Change Time | 2.2 s |
| Coolant Tank Capacity | 150 L (39.6 gal) |
| Chip Disposal | Chip Screw |
| Air Pressure Requirement | 0.5 MPa (72.5 psi) |
| Power Requirement | 20 kVA |
| Machine Dimensions | 2,400 x 1,935 mm (94 x 76 in) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- BT40 spindle at 11,000 rpm on a machine with only 410 mm (16.1 in) of X travel
- Y travel of 430 mm (16.9 in) exceeds the X travel, so deep parts fit a short machine
- Footprint of 2,400 x 1,935 mm (94 x 76 in) on a 20 kVA supply
- Positioning accuracy listed at 0.01 mm (0.00039 in) with repeatability of ±0.003 mm (±0.00012 in)
Limitations
- 12 HP (8.9 kW) peak is the lowest spindle power in the JR / SR family
- The magazine holds 16T, fewer than the 20T of the SR2 XP
- Maximum table load is 432 kg (953 lb), and the standard figure is 360 kg (794 lb)
- The same floor space, 2,400 x 1,935 mm (94 x 76 in), buys 550 mm (21.7 in) of X on the SR2 XP
Best For
Frequently Asked Questions
01
Travels are 410 mm (16.1 in) in X, 430 mm (16.9 in) in Y and 460 mm (18.1 in) in Z. The table measures 560 x 380 mm (22 x 15 in), and the distance from spindle nose to table runs 75~535 mm (3~21 in).
02
A BT40 spindle with a maximum speed of 11,000 rpm and 12 HP (8.9 kW) of peak power. The maker's table gives no torque figure, so ask for the power curve if the work involves heavy cuts in steel.
03
The two share Y and Z travels and the same 2,400 x 1,935 mm (94 x 76 in) floor space. The SR2 XP has 550 mm (21.7 in) of X travel, a 700 x 380 mm (28 x 15 in) table, 15 HP (11.2 kW) and 20T. The JR XP is the shorter, lighter-duty version.
04
The table lists a standard loading of 360 kg (794 lb) and a maximum loading of 432 kg (953 lb). Plan fixtures against the standard figure and treat the maximum as the ceiling for an evenly spread load.
