Haas Automation Vertical Machining Centers

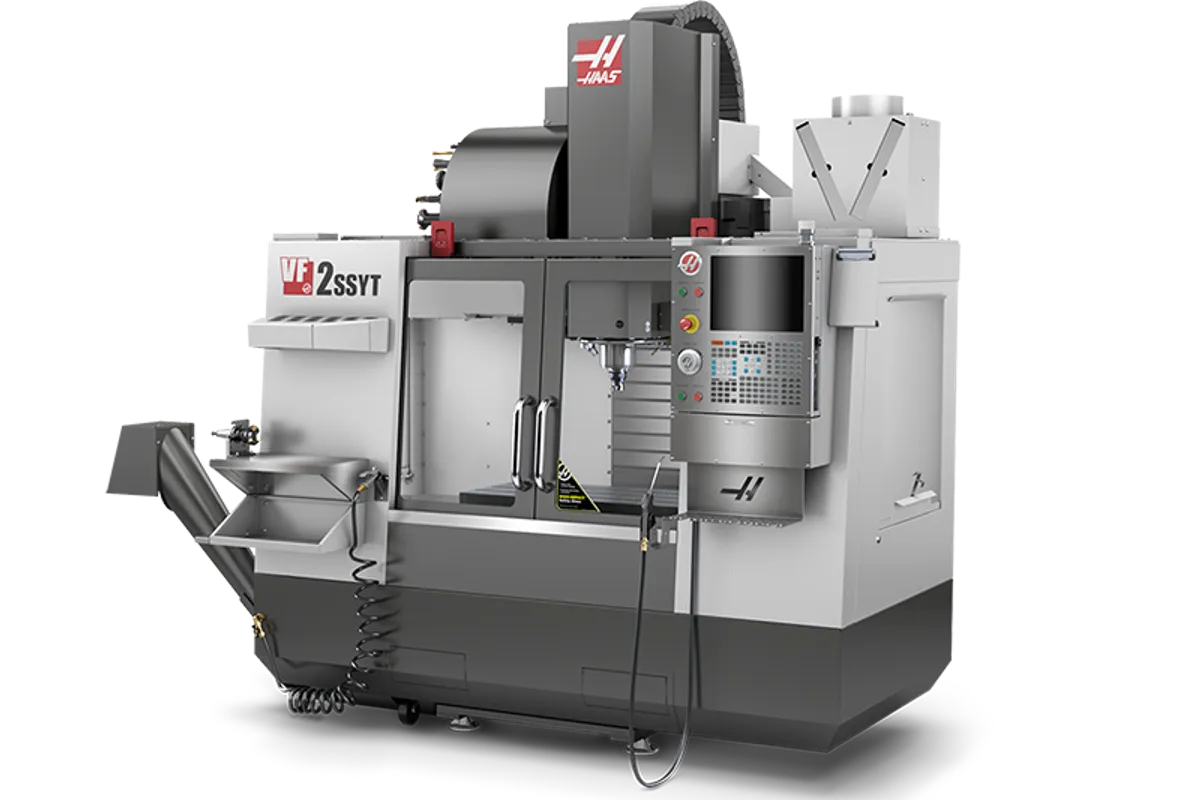

Haas VF-2SSYT

$109,000 - $140,000 Updated 2026-03-19

Key Specifications

X Travel

762 mm (30 in)

Y Travel

406 mm (16 in)

Z Travel

508 mm (20 in)

Max Spindle

12,000 RPM

Spindle Taper

CT40 / BT40

Tool Capacity

24+1 SMTC

Overview

The Haas VF-2SSYT is a Super Speed variant of the VF-2 with an extended Y-axis table, combining the high-speed 12,000 RPM inline direct-drive spindle with a larger table work area. The SSYT designation breaks down to Super Speed (SS), Y-axis extended (Y), and extended Table (T) — giving you a machine that runs faster than a standard VF-2 while providing significantly more fixturing room.

The 12,000 RPM inline direct-drive spindle delivers 22.4 kW (30 hp) with 122 Nm (90 ft-lbf) of peak torque through a CT40 taper. The Super Speed spindle is optimized for high-speed machining of aluminum, brass, and non-ferrous materials where surface speed directly drives productivity. Compared to the standard VF-2's 8,100 RPM, the 48% speed increase enables significantly higher surface footage on small-diameter tools and reduces cycle time on aluminum-intensive programs.

Travels are 762 x 406 x 508 mm (30 x 16 x 20 in), identical to the standard VF-2. The extended table measures approximately 914 x 460 mm (36 x 18 in), providing more usable work area for multi-vise setups and larger fixture plates without increasing the machine's overall footprint. The 24+1 side-mount tool changer delivers 1.6-second tool-to-tool and 2.2-second chip-to-chip times — fast enough that frequent tool changes don't significantly impact cycle time.

Rapids of 35.6 m/min (1,400 ipm) on all axes are roughly 40% faster than the standard VF-2, further reducing non-cutting time. At a base price around $109,000-$140,000, the VF-2SSYT occupies a sweet spot for shops running high-mix aluminum work, prototype operations, and production jobs where spindle speed and table area both matter. The SS spindle upgrade costs less than the price difference between a VF-2 and VF-3 while delivering a significant speed advantage.

Full Specifications

Parameter	Value
X-Axis Travel	762 mm (30 in)
Y-Axis Travel	406 mm (16 in)
Z-Axis Travel	508 mm (20 in)
Max Spindle Speed	12,000 RPM
Spindle Taper	CT40 / BT40
Spindle Motor Power	30.0 hp
Spindle Torque Max	122 Nm (90 ft-lbf)
Spindle Drive	Inline Direct-Drive
Spindle Cooling	Liquid Cooled
Tool Capacity	24+1 SMTC
Tool To Tool	1.80 s
Chip To Chip	2.40 s
Max Tool Diameter	2.5 in
Max Tool Weight	12.0 lb
Table Size	914 x 460 mm (36 x 18 in)
Table Load Max	1,361 kg (3,000 lb)
Rapid Traverse X	35.6 m/min (1,400 ipm)
Rapid Traverse Y	35.6 m/min (1,400 ipm)
Rapid Traverse Z	35.6 m/min (1,400 ipm)
Machine Weight	3,674 kg (8,100 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	55 gal
Travels	S.A.E
X Axis	30.00 in
Y Axis	20.00 in
Z Axis	20.00 in
Spindle Nose To Table	4.0 in
Spindle	S.A.E
Max Rating	30.0 hp
Max Speed	12000 rpm
Max Torque	90.0 ft-lbf @ 2000 rpm
Drive System	Inline Direct-Drive
Taper	CT40 \| BT40 \| HSK-A63
Bearing Lubrication	Air / Oil Injection
Cooling	Liquid Cooled
Table	S.A.E
Length	36.0 in
Width	18.0 in
T Slot Width	0.626 in to 0.630 in
T Slot Center Distance	4.92 in
Number Of Std T Slots	3
Max Weight On Table	1500 lb
Feedrates	S.A.E
Max Cutting	833 ipm
Rapids On X	1400 ipm
Rapids On Y	1400 ipm
Rapids On Z	1400 ipm
Axis Motors	S.A.E
Max Thrust X	1995 lbf
Max Thrust Y	1995 lbf
Max Thrust Z	3085 lbf
Tool Changer	S.A.E
Type	SMTC
Capacity	30+1
Max Tool Diameter Large	5.4 in
Max Tool Length	11.00 in
General	S.A.E
Air Requirements	S.A.E
Air Required	4 scfm @ 100 psi
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A
Dimensions Shipping	S.A.E
Domestic Pallet	106.0 in x 102.0 in x 101.0 in
Export Pallet	91.5 in x 100.0 in x 101.0 in
Machine Weight	7800 lb
Domestic Pallet W Conveyor	129 in x 102 in x 105 in
Export Pallet W Conveyor	124 in x 92 in x 101 in
Weight W Conveyor	9360 lb
Domestic Pallet W 501 Smtc	106 in x 102 in x 110 in
Export Crate W 501 Smtc	106 in x 102 in x 117 in
Weight W 501 Smtc	8100 lb
Domestic Pallet W 701 Smtc	109.0 in x 102.0 in x 124.5 in
Export Crate W 701 Smtc	109.0 in x 102.0 in x 132.5 in
Weight W 701 Smtc	9,920 lb
Domestic Pallet W Conveyor 701 Smtc	124.0 in x 102.5 in x 128.0 in
Weight W Conveyor 701 Smtc	9,660 lb
Haas Rotary	HAAS MACHINE
Ha2ts	VF-2SSYT
Ha5c	VF-2SSYT
Ha5c T	VF-2SSYT
Ha5c2	VF-2SSYT
Ha5c2 T	VF-2SSYT
Ha5c3	VF-2SSYT
Ha5c3 T	VF-2SSYT
Ha5c4	VF-2SSYT
Ha5c4 T	VF-2SSYT
Ha5cs	VF-2SSYT
Hqda5	VF-2SSYT
Hrc160	VF-2SSYT
Hrc210	VF-2SSYT
Hrt100	VF-2SSYT
Hrt160	VF-2SSYT
Hrt160 2	VF-2SSYT
Hrt160sp	VF-2SSYT
Hrt160ss	VF-2SSYT
Hrt210	VF-2SSYT
Hrt210 2	VF-2SSYT
Hrt210ht	VF-2SSYT
Hrt210sp	VF-2SSYT
Hrt210ss	VF-2SSYT
Hrta5	VF-2SSYT
Hrta6	VF-2SSYT
Lt260	VF-2SSYT
T5c	VF-2SSYT
T5c2	VF-2SSYT
T5c3	VF-2SSYT
Th240	VF-2SSYT
Tr160	VF-2SSYT
Tr160 2	VF-2SSYT
Tr200y	VF-2SSYT
Trt100	VF-2SSYT
Trt160	VF-2SSYT
Trt210	VF-2SSYT
Trt70	VF-2SSYT

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

12,000 RPM inline direct-drive spindle provides 48% more speed than standard VF-2 for high-speed aluminum machining
Extended table provides more fixturing area for multi-vise setups without increasing the machine footprint
1.6-second tool-to-tool time keeps frequent tool change overhead minimal on complex programs
35.6 m/min rapids are 40% faster than standard VF-2, significantly reducing non-cutting positioning time
30 hp spindle maintains strong material removal capability even at high-speed aluminum cutting parameters
Base price around $109K offers excellent value for a high-speed VMC with extended table

Limitations

12,000 RPM maximum speed is still below the 15,000-20,000 RPM of dedicated high-speed machines for aluminum
CT40 taper limits torque for heavy steel roughing compared to 50-taper machines
762 x 406 mm travel is the same as the standard VF-2 — the extended table adds fixturing room but not axis travel
24+1 tool capacity may constrain complex programs that need 30+ tools
Inline direct-drive spindle has less low-end torque than geared spindle options for steel work

Best For

Aerospace prototype and production shops running high-mix aluminum component programs Job shops processing predominantly aluminum and non-ferrous workpieces where spindle speed drives productivity Shops upgrading from a standard VF-2 that need more speed and table area without a larger footprint Medical device manufacturers machining aluminum and brass instrument components at high speed Shops running multi-vise setups on aluminum work where the extended table enables more parts per load

Frequently Asked Questions

01 What does a new Haas VF-2SSYT cost?

Base price starts around $109,000. With through-spindle coolant, probing, and common options, expect $125,000-$140,000. The SS spindle upgrade represents excellent value for shops that run aluminum-heavy work.

02 What does SSYT stand for?

SS = Super Speed (12,000 RPM spindle), Y = Extended Y-axis table width, T = Extended Table length. The combination gives you higher speed, more table area, and the same proven VF-2 travel envelope.

03 Should I choose the VF-2SSYT or VF-2SS?

If you regularly run multi-vise setups or need more fixturing room, the YT extended table is worth the premium. If your work fits on the standard VF-2 table, save the cost and go with the VF-2SS. Both share the same 12,000 RPM spindle and travel.

04 Is the VF-2SSYT good for steel?

The VF-2SSYT can machine steel capably, but its inline direct-drive spindle is optimized for high-speed aluminum work. For shops that primarily cut steel and cast iron, the standard VF-2 with gearbox spindle option or a 50-taper machine provides more torque at low RPM. The SS models shine when spindle speed is the limiting factor.
