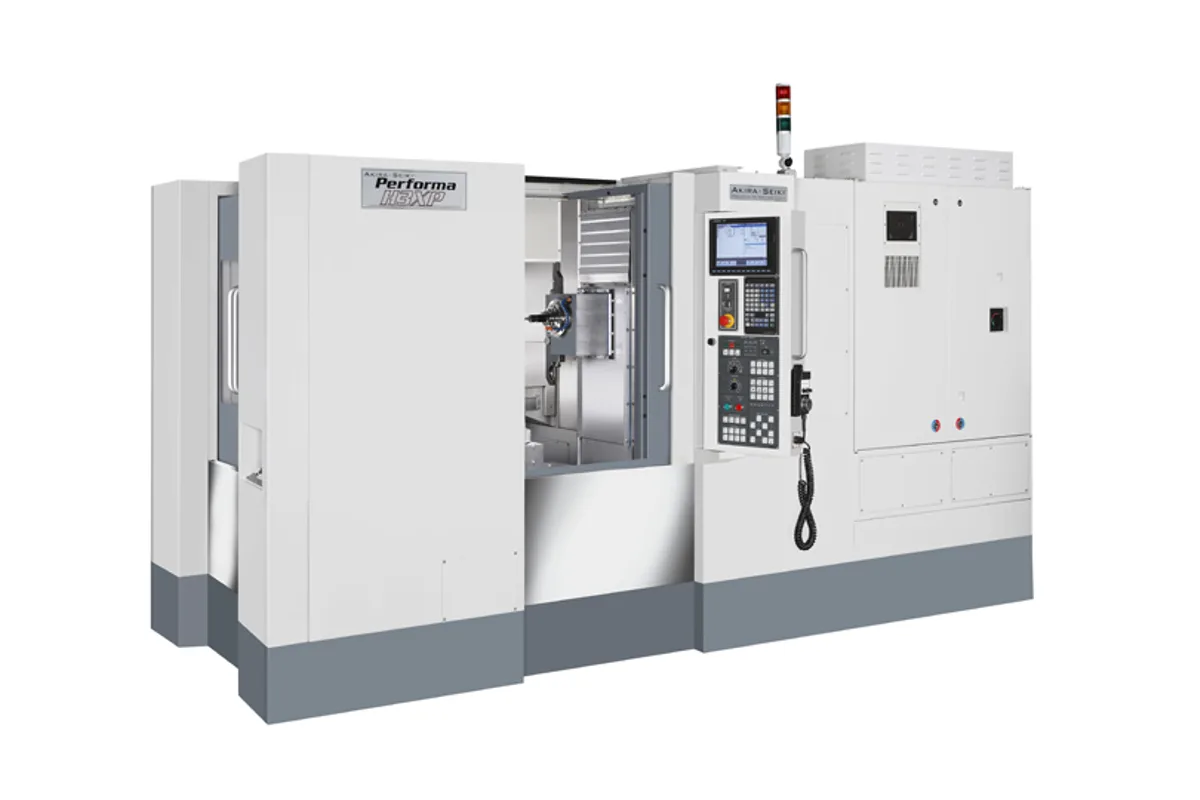

Akira Seiki H3XP
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Akira Seiki H3XP cost?
Price estimate
We do not have a price for the Akira Seiki H3XP that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Akira Seiki H3XP is a compact horizontal machining center with a twin pallet changer. Pallets are 320 x 320 mm (12.6 x 12.6 in), each rated for 300 kg (661 lb), and the change takes 8 s. Two pallets are standard and a six-pallet arrangement is listed as an option.
Travels are 350 mm (13.8 in) in X, 400 mm (15.7 in) in Y and 350 mm (13.8 in) in Z. The B axis indexes in 0.001° steps, so the table is a full fourth axis and not a one-degree indexer. That matters on a horizontal: angled features and helical work can be cut without special fixtures.
The machine is built for short cycles. Rapid feed is 48 / 48 / 48 m/min (1,890 / 1,890 / 1,890 ipm), the tool change is 1.6 s, and the belt-type BT40 spindle reaches 12,000 rpm with 17.7 HP (13.2 kW) peak. Coolant through the spindle is listed as standard. The magazine is 36T, or 60T as an option.
Chips fall away from the work and are removed by a chain type conveyor with dual spiral screws along X. Weight is 5,623 kg (12,397 lb). The stated dimensions, 2,700 x 5,075 mm (106 x 199 in), show a machine that is narrow but long, so check the depth of the bay. Supply is 35 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 350 mm (13.8 in) |
| Y Axis Travel | 400 mm (15.7 in) |
| Z Axis Travel | 350 mm (13.8 in) |
| Distance Spindle Nose to Table | 50~400 mm (1.97~15.75 in) |
| Number of Pallets | 2 / 6 (OPT) |
| Table Size | 320 x 320 mm (12.6 x 12.6 in) |
| Max Table Load | 300 kg (661 lb) |
| Pallet Change Time | 8 s |
| B Axis Indexing | 0.001° |
| Spindle Motor Power | 17.7 HP (13.2 kW) |
| Max Spindle Speed | 12,000 rpm |
| Spindle Drive | Belt Type |
| Spindle Taper | BT40 |
| Coolant Through Spindle | Standard |
| Rapid Traverse Xyz | 48 / 48 / 48 m/min (1,890 / 1,890 / 1,890 ipm) |
| Cutting Feed Rate | 12 / 12 / 12 m/min (472 / 472 / 472 ipm) |
| Tool Capacity | 36T / 60T (OPT) |
| Max Tool Diameter (full magazine) | ∅65 mm (2.6 in) |
| Max Tool Diameter Without Adjacent Tools | ∅130 mm (5.1 in) |
| Max Tool Length | 200 mm (7.87 in) |
| Tool Change Time | 1.6 s |
| Coolant Tank Capacity | 200 L (52.8 gal) |
| Air Pressure Requirement | 0.5 MPa (72.5 psi) |
| Power Requirement | 35 kVA |
| Machine Dimensions | 2,700 x 5,075 mm (106 x 199 in) |
| Machine Weight | 5,623 kg (12,397 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Twin 320 x 320 mm (12.6 x 12.6 in) pallets with an 8 s change; six pallets optional
- B axis indexing of 0.001°
- 48 / 48 / 48 m/min (1,890 / 1,890 / 1,890 ipm) rapids and a 1.6 s tool change
- Coolant through the spindle is standard
Limitations
- 17.7 HP (13.2 kW) peak limits heavy milling
- Small envelope: 350 mm (13.8 in) in X and Z
- Tools no longer than 200 mm (7.87 in)
- The machine is 5,075 mm deep
Best For
Frequently Asked Questions
01
Two as standard, with six listed as an option. Each pallet is 320 x 320 mm (12.6 x 12.6 in) and carries up to 300 kg (661 lb). Pallet change time is 8 s.
02
350 mm (13.8 in) in X, 400 mm (15.7 in) in Y and 350 mm (13.8 in) in Z. The distance from spindle nose to table surface is given as 50~400 mm (1.97~15.75 in).
03
A belt-type BT40 spindle with a maximum speed of 12,000 rpm and 17.7 HP (13.2 kW) of peak power. The CTS function, coolant through the spindle, is listed as standard.
04
Size and power. The H5XP has 720 mm (28.3 in) of travel in each axis, 500 x 500 mm (20 x 20 in) pallets and a 42 HP (31.3 kW) spindle, and weighs 11,589 kg (25,549 lb). The H5XP B axis indexes in 1° steps, where the H3XP offers 0.001°.
