Akira Seiki SL35MC
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
axes configuration
swing over bed
How much does the Akira Seiki SL35MC cost?
Price estimate
We do not have a price for the Akira Seiki SL35MC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Akira Seiki SL35MC pairs the highest-torque belt-drive headstock in the SL line with a driven-tool turret. The A2-8 spindle gives 727 Nm (536 lb-ft) and 30 HP (22.4 kW) at peak, up to 3,500 rpm, and the application row lists X+Z+C.
A 10" chuck is standard and a 12" chuck optional, over a 78 mm (3.1 in) draw tube bore. Maximum cutting diameter is 360 mm (14.2 in) and cutting length 540 mm (21.26 in). Those are smaller than the two-axis SL35 figures, the usual effect of a live turret taking up room in the work area.
The turret itself is the same VDI40, 12-station unit as on the SL30MC, with ER32 live holders, a 4,000 rpm power-tool speed and a 0.52 s index. So the two machines mill alike. The difference is on the turning side, where the SL35MC has well over twice the spindle torque and a larger bore.
That makes this the mill-turn choice for heavier parts: gear blanks, large couplings, valve bodies in tough material, where the roughing is serious and the milled features are secondary. X travel is 235 + 5 mm (9.2 + 0.2 in), Z travel 600 mm (23.6 in). The tailstock has an MT4 quill and 570 mm (22.4 in) of travel. Weight is 6,100 kg (13,448 lb), footprint 3,050 x 1,844 mm (120 x 73 in), supply 30 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 (Fanuc G code compatible) |
| Axes Configuration | X+Z+C |
| Swing Over Bed | 650 mm (25.6 in) |
| Swing Over Cross Slide | 450 mm (17.7 in) |
| Max Turning Diameter | 360 mm (14.2 in) |
| Max Turning Length | 540 mm (21.26 in) |
| Chuck Size | 10" STD; 12" OPT |
| Draw Tube Bore | 78 mm (3.1 in) |
| Max Spindle Speed | 3,500 rpm |
| Spindle Motor Power | 30 HP (22.4 kW) |
| Spindle Torque | 727 Nm (536 lb-ft) |
| Spindle Nose | A2-8 |
| X Axis Travel | 235 + 5 mm (9.2 + 0.2 in) |
| Z Axis Travel | 600 mm (23.6 in) |
| Rapid Traverse Xz | 36 m/min (1,417 ipm) |
| Cutting Feed Rate | 10 m/min (394 ipm) |
| Turret Stations | 12 |
| OD Tool Size | VDI40 |
| Boring Bar Shank | ER32 |
| Live Tool Speed | 4,000 rpm |
| Turret Index Time | 0.52 s |
| Quill Travel | 100 mm (3.9 in) |
| Tailstock Travel | 570 mm (22.4 in) |
| Quill Taper | MT4 |
| Chip Disposal | Drawer (STD); Conveyor (OPT) |
| Power Requirement | 30 kVA |
| Machine Dimensions | 3,050 x 1,844 mm (120 x 73 in) |
| Machine Weight | 6,100 kg (13,448 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 727 Nm (536 lb-ft) of peak torque with C axis and driven tools
- 78 mm (3.1 in) draw tube bore; 10" chuck with 12" option
- VDI40 turret with power tooling at 4,000 rpm
- Tailstock with MT4 quill as part of the machine
Limitations
- Maximum cutting diameter of 360 mm (14.2 in), against 450 mm (17.7 in) on the SL35
- 3,500 rpm maximum spindle speed
- No Y axis: the application row lists X+Z+C
- Driven-tool power row on the maker's page is inconsistent and is not shown
Best For
Frequently Asked Questions
01
An A2-8 spindle with a maximum speed of 3,500 rpm, 30 HP (22.4 kW) peak power and 727 Nm (536 lb-ft) peak torque. The draw tube bore is 78 mm (3.1 in).
02
They share the VDI40 turret and the 4,000 rpm power-tool speed. The SL30MC has 305 Nm (225 lb-ft) and a 65 mm (2.6 in) bore; the SL35MC has the 727 Nm (536 lb-ft) spindle, the larger bore and a 10" chuck.
03
360 mm (14.2 in) in diameter and 540 mm (21.26 in) in cutting length. For longer parts the SL35LMC offers a 940 mm (37 in) cutting length.
04
6,100 kg (13,448 lb). Dimensions are 3,050 x 1,844 mm (120 x 73 in) and the power requirement is 30 kVA. Rapid feed is 36 m/min (1,417 ipm).
More from Akira Seiki
Other CNC Lathes / Turning Centers
Mazak QT-PRIMOS 150

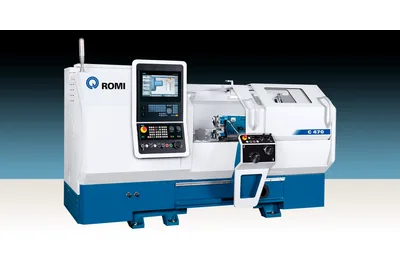

ROMI C 470
