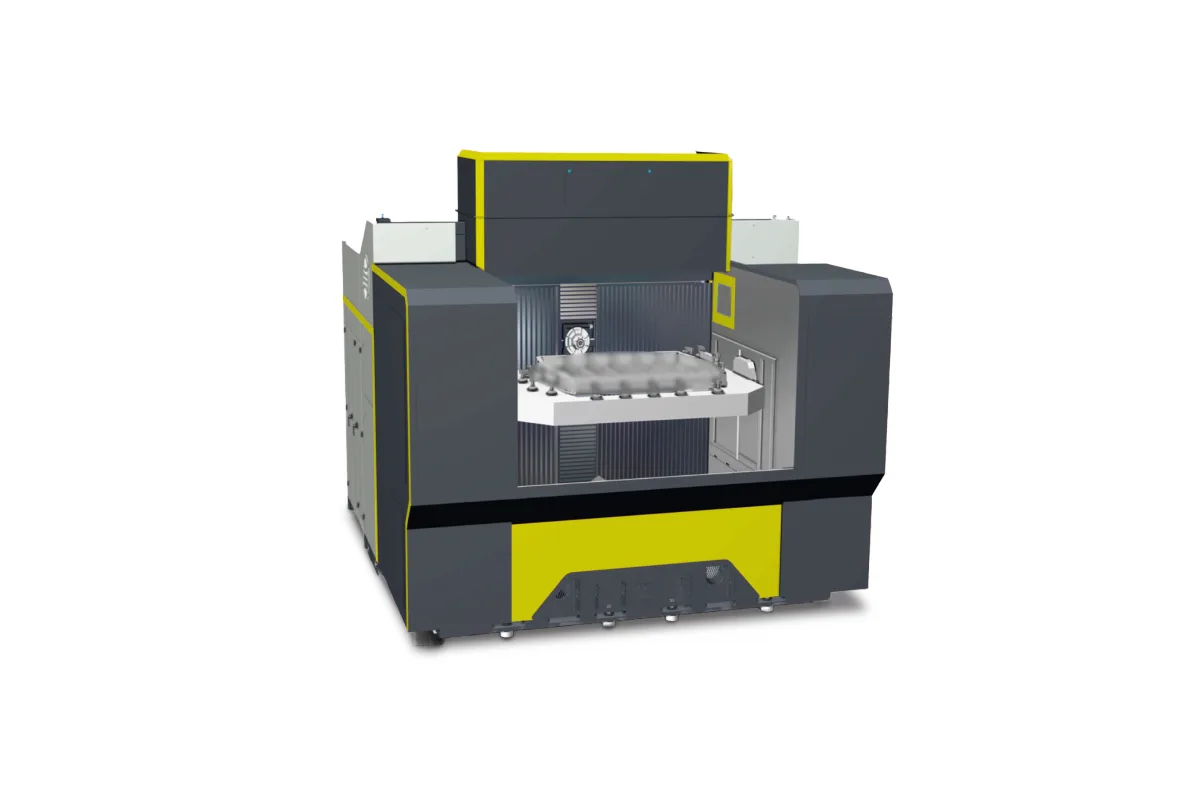

Anger Machining Meteor TS3000V-W
Image: anger-machining.com, Anger Machining
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Spindle Power
Repeatability
number of axes
How much does the Anger Machining Meteor TS3000V-W cost?
Price estimate
We do not have a price for the Anger Machining Meteor TS3000V-W that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Two independently driven spindles on one 3,000 mm X-axis: that is the Anger Machining Meteor TS3000V-W. The spindles can work on one large part at the same time or on two symmetrical parts side by side, with a spindle distance in X that the table gives as 620-2,400 mm (24.4-94.5 in).
Twin spindles on this kind of machine are a cycle-time decision. Each one is the series spindle, HSK63 with 0-18,000 rpm, 30/50 kW and 50/80 Nm (S1/S6-30%), and each has its own disc magazine of 29 tools. Left and right parts of an electric-vehicle structure are the obvious pairing; a single large part can also be machined by both spindles simultaneously.
Everything around the spindles matches the Meteor 3000-W: 1,600 mm of Y, 630 mm of Z and 630 mm of W travel, an A-axis rated at 3,500 kg including the bridge with a 1.4 s half turn, and repeatability of 0.002 mm as per VDI 3441 / VDI 2617. The second spindle adds mass, 30,500 kg against 29,000 kg for the Meteor 3000-W, on the same 9,000/6,200/4,000 mm footprint.
Total connected power is listed as 110 kVA at 3x400 V, the same as for the single-spindle machine, and the control is Fanuc with minimum quantity lubrication. Tools are limited to 600 mm in length and 8 kg. Check with Anger how close the two spindles may run when both carry long tools, since 620 mm is the minimum distance.
Full Specifications
| Parameter | Value |
|---|---|
| Number of Axes | 4 (5, 6) |
| X Axis Travel | 3,000 mm (118.1 in) |
| Y Axis Travel | 1,600 mm (63.0 in) |
| Z Axis Travel | 630 mm (24.8 in) |
| W Axis Travel | 630 mm (24.8 in) |
| Axis Acceleration | 5/8/15/5 m/s² |
| A Axis 180 Rotation Time | 1.4 s for 180° |
| Repeatability | 0.002 mm (0.00008 in), as per VDI 3441 / VDI 2617 |
| Number of Spindles | 2 |
| Spindle Distance X Axis | 620-2,400 mm (24.4-94.5 in) |
| Max Spindle Speed | 0-18,000 rpm |
| Spindle Motor Power | 30/50 kW (40.2/67.1 hp), S1/S6-30% |
| Spindle Torque | 50/80 Nm (36.9/59.0 lb-ft), S1/S6-30% |
| Spindle Taper | HSK63 |
| Tool Capacity | 2x29 pcs. |
| Tool Length | 600 mm (23.6 in) |
| Tool Weight | 8 kg (18 lb) |
| Max Load A Axis | 3,500 (including bridge) kg |
| Machine Weight | 30,500 kg (67,240 lb) |
| Machine Dimensions | 9,000/6,200/4,000 mm (354.3/244.1/157.5 in) |
| Operating Voltage | 3x400 V |
| Power Requirement | 110 kVA |
| CNC Control | Fanuc |
| Lubrication | MQL |
Specifications sourced from anger-machining.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Two independent spindles for one large part or two symmetrical parts
- Spindle distance from 620 mm to 2,400 mm in X
- Two magazines of 29 tools, listed as 2x29
- W-axis of 630 mm for deep drilling
- Same 9,000/6,200/4,000 mm footprint as the single-spindle Meteor 3000-W
Limitations
- Each spindle has 50/80 Nm of torque, which suits aluminium more than heavy cuts
- Both spindles share one A-axis and its 3,500 kg limit including the bridge
- Machine weight rises to 30,500 kg
- Only a Fanuc control is listed
Best For
Frequently Asked Questions
01
Yes. Anger describes them as two independently driven spindles that can simultaneously machine either a single large part or two symmetrical components. The spindle distance in X is listed as 620-2,400 mm.
02
Each spindle takes HSK63 tools and runs from 0 to 18,000 rpm. Power is 30/50 kW and torque 50/80 Nm, both as S1/S6-30% ratings. Anger mentions HSK100-A or HSK80-A spindle options for the series without listing figures for them.
03
Tool capacity is listed as 2x29, one 29-tool disc magazine per spindle. Tool length is up to 600 mm and tool weight up to 8 kg. Anger quotes chip-to-chip times as low as 5 seconds for the disc-type tool changer.
04
No. Both are listed at 9,000/6,200/4,000 mm (L/W/H). The twin-spindle machine is heavier, 30,500 kg (67,240 lb) against 29,000 kg for the Meteor 3000-W, and the travels of 3,000 mm, 1,600 mm, 630 mm and 630 mm in X, Y, Z and W are identical.
05
The table gives 4 axes, with 5 and 6 as bracketed options, for both models of the series. The standard rotary axis is the A-axis that carries the bridge; it is rated for 3,500 kg including the bridge and turns 180° in 1.4 s.
