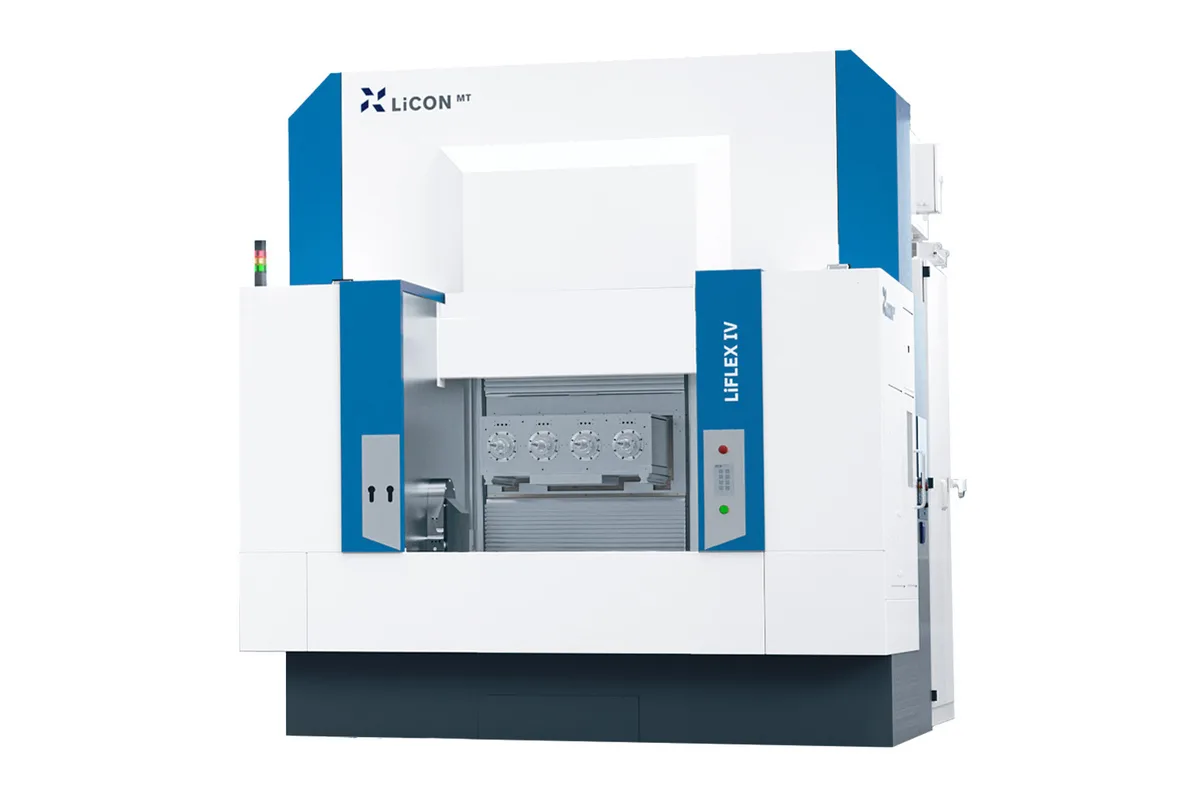

LiCON LiFLEX IV 366
This model was not found in LiCON's current lineup when we checked on 2026-10-03 . It may be a superseded or older model; the specifications below are as we last recorded them.
Image: licon.com, LiCON
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
axis configuration
spindle count
spindle distance
How much does the LiCON LiFLEX IV 366 cost?
Price estimate
We do not have a price for the LiCON LiFLEX IV 366 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The LiCON LiFLEX IV 366 is a four-spindle horizontal machining center with the spindles 375 mm (15 in) apart, 375 mm (15 in) of X travel, 660 mm (26 in) of Y and 650 mm (26 in) of Z. LiCON's current lineup does not show this model, and the listed figures have not been checked against a maker page. Read them as a reference for an existing machine and confirm them against its documents.
It is the larger of the two four-spindle sizes. The LiFLEX IV 244 has a 225 mm (9 in) spindle distance and a single 12,000 rpm, 100 Nm (74 ft-lb) spindle on HSK 63. Here the listed figures show spindle options of 8,000 - 16,000 rpm with 100 / 200 Nm (74 / 148 ft-lb) and HSK 63 or HSK 100, so which spindle a given machine carries has to be checked.
The interference cube for the A / B axes is 1,000 / 374 mm (39 / 15 in), which holds each part and fixture inside the spindle distance. Loading is listed as direct loading or double trunnion; no pallet changer appears in that row. Tool capacity is 72 / 156, rapid traverse 75 m/min (2,953 in/min) and acceleration 9 m/s² (354 in/s²). The machine is listed in 4- or 5-axis configuration for dry, coolant or MQL machining, and the precision technology row reads i-Technology by LiCON.
Full Specifications
| Parameter | Value |
|---|---|
| Axis Configuration | 4 / 5 |
| Spindle Count | 4 |
| Spindle Distance | 375 mm (15 in) |
| X Axis Travel | 375 mm (15 in) |
| Y Axis Travel | 660 mm (26 in) |
| Z Axis Travel | 650 mm (26 in) |
| Max Spindle Speed | 8,000 - 16,000 rpm (spindle options) |
| Spindle Torque | 100 / 200 Nm (74 / 148 ft-lb) (spindle options) |
| Spindle Taper | HSK 63 / HSK 100 |
| Tool Capacity | 72 / 156 |
| Acceleration | 9 m/s² (354 in/s²) |
| Rapid Traverse Xyz | 75 m/min (2,953 in/min) |
| Interference Cube A B | 1,000 / 374 mm (39 / 15 in) |
| Loading Options | Direct loading, double trunnion |
| Process Lubrication | Dry, coolant, MQL |
| Precision Technology | i-Technology by LiCON |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Four spindles at a 375 mm (15 in) distance, for four parts per cycle
- Y travel of 660 mm (26 in) and Z travel of 650 mm (26 in) on each spindle
- Listed spindle options include 200 Nm (148 ft-lb) and HSK 100, which the LiFLEX IV 244 does not offer
- Tool capacity of 72 or 156
Limitations
- Not in LiCON's current lineup, and the listed figures have not been checked against a maker page
- Each part and fixture must stay within the 374 mm (15 in) interference figure
- Loading is listed as direct loading or double trunnion only, with no pallet changer in the row
- Spindle speed and torque are options, so the spindle on a particular machine must be identified
Best For
Frequently Asked Questions
01
It is not in LiCON's current lineup, so it may be an older model. The figures on this page are the listed figures and have not been confirmed against a maker page; check a specific machine against its own nameplate and documentation.
02
The listed figures are 375 mm (15 in) in X, 660 mm (26 in) in Y and 650 mm (26 in) in Z, with the four spindles 375 mm (15 in) apart. Rapid traverse is 75 m/min (2,953 in/min) and acceleration 9 m/s² (354 in/s²).
03
Spindle options of 8,000 - 16,000 rpm and 100 / 200 Nm (74 / 148 ft-lb) are listed, on HSK 63 or HSK 100. The listed figures do not link a torque to a speed or a taper, so read the spindle data from the machine being considered.
04
The LiFLEX IV 366 has a 375 mm (15 in) spindle distance, 660 mm (26 in) of Y and 650 mm (26 in) of Z. The LiFLEX IV 244 has a 225 mm (9 in) spindle distance, 470 mm (19 in) of Y and 420 mm (17 in) of Z, with tool capacity of 80 / 120 against 72 / 156 here.
