Akira Seiki H5XP

Q: How much does the Akira Seiki H5XP cost?

The price estimate for the Akira Seiki H5XP is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/akira-seiki-h5xp#price; the request is passed to Akira Seiki or an authorised dealer.

Specs verified 2026-10-04 · akiraseiki.com Updated 2026-10-04

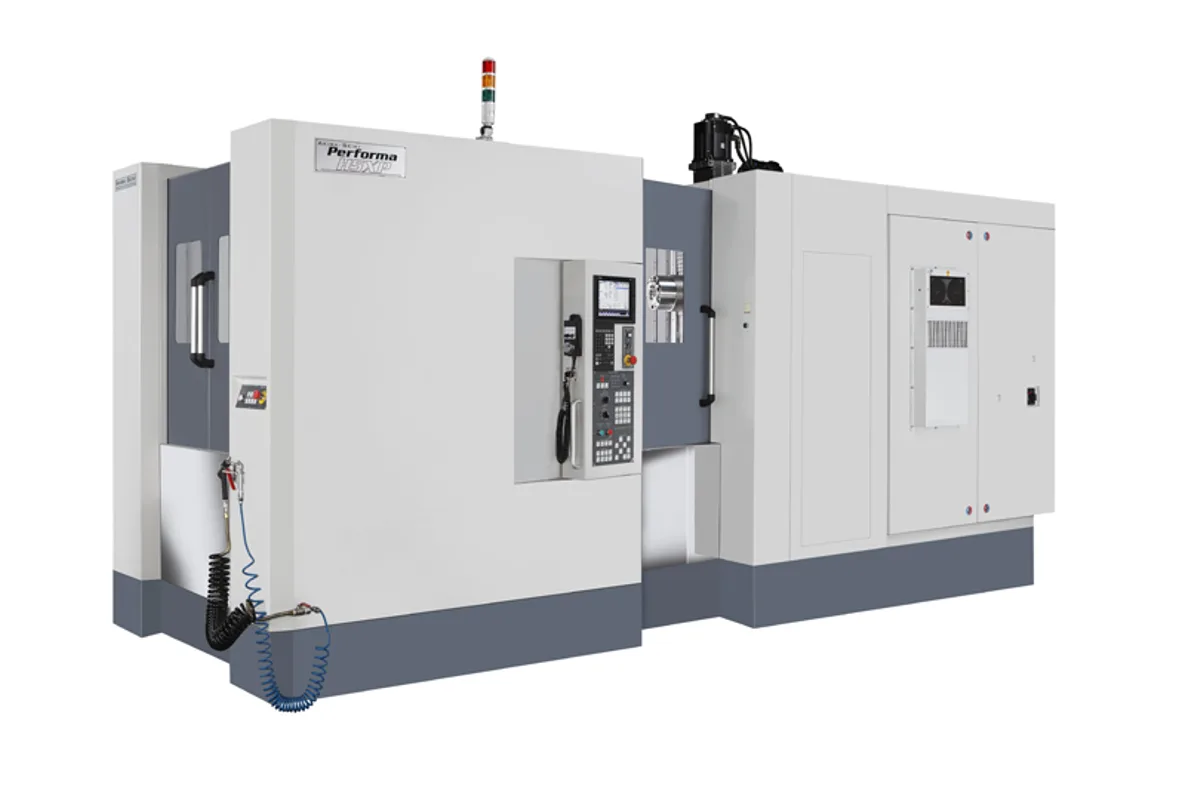

Image: akiraseiki.com, Akira Seiki

Key Specifications

Max Spindle

12,000 rpm

Spindle Taper

BT40

Tool Capacity

40T / 60T (OPT)

Table Size

500 x 500 mm (20 x 20 in)

Spindle Power

42 HP (31.3 kW)

x axis travel

720 mm (28.3 in)

How much does the Akira Seiki H5XP cost?

Price estimate

Uncertain

We do not have a price for the Akira Seiki H5XP that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Akira Seiki H5XP is a 500 mm twin-pallet horizontal machining center with a cubic envelope: 720 mm (28.3 in) of travel in X, in Y and in Z. Pallets are 500 x 500 mm (20 x 20 in), and the maker's short description of the model is mass production.

Its spindle is the strongest in the horizontal range. The H5XP page lists 42 HP (31.3 kW) peak at 12,000 rpm, belt driven, BT40, with coolant through the spindle as standard. The sister model SH500APC has 35 HP (26.1 kW) with an in-line direct drive. Belt drive and the higher peak figure suit the H5XP to heavier cuts in iron and steel.

The B axis indexes in 1° steps. For tombstone work, with four faces at right angles, that is all that is needed; for angled features the SH500APC and its 0.001° table are the alternative. Pallet change time is 12 s and tool change time 2.5 s. Rapids are 48 / 48 / 48 m/min (1,890 / 1,890 / 1,890 ipm).

The magazine holds 40T, or 60T as an option, and accepts tools 400 mm (15.7 in) long and 8 kg (17.6 lb). Weight is 11,589 kg (25,549 lb). The coolant tank holds 520 L (137.4 gal). The pallet load row on the maker's page has kilogram and pound figures that disagree, so it is not shown here.

Full Specifications

Parameter	Value
X Axis Travel	720 mm (28.3 in)
Y Axis Travel	720 mm (28.3 in)
Z Axis Travel	720 mm (28.3 in)
Distance Spindle Nose to Table	50~770 mm (2~30.3 in)
Number of Pallets	2
Table Size	500 x 500 mm (20 x 20 in)
Pallet Change Time	12 s
B Axis Indexing	1°
Spindle Motor Power	42 HP (31.3 kW)
Max Spindle Speed	12,000 rpm
Spindle Drive	Belt Type
Spindle Taper	BT40
Coolant Through Spindle	Standard
Rapid Traverse Xyz	48 / 48 / 48 m/min (1,890 / 1,890 / 1,890 ipm)
Cutting Feed Rate	10 / 10 / 10 m/min (394 / 394 / 394 ipm)
Tool Capacity	40T / 60T (OPT)
Max Tool Diameter (full magazine)	∅75 mm (3 in)
Max Tool Diameter Without Adjacent Tools	∅150 mm (5.9 in)
Max Tool Length	400 mm (15.7 in)
Max Tool Weight	8 kg (17.6 lb)
Tool Change Time	2.5 s
Coolant Tank Capacity	520 L (137.4 gal)
Air Pressure Requirement	0.5 MPa (72.5 psi)
Power Requirement	35 kVA
Machine Dimensions	2,700 x 5,075 mm (106 x 199 in)
Machine Weight	11,589 kg (25,549 lb)

Specifications sourced from akiraseiki.com — verified 2026-10-04

Strengths & Limitations

Strengths

720 mm (28.3 in) of travel in all three axes
42 HP (31.3 kW) peak BT40 spindle with coolant through the spindle
Twin 500 x 500 mm (20 x 20 in) pallets
Tools up to 400 mm (15.7 in) long
520 L (137.4 gal) coolant tank

Limitations

B axis indexes in 1° steps only
Pallet change takes 12 s, against 8 s on the SH500APC
Tool change time of 2.5 s
Pallet load could not be taken from the maker's page, where kg and lb disagree

Best For

Tombstone fixtures with parts on four faces Production machining of cast-iron and steel housings Deep boring with tools up to 400 mm (15.7 in) Two-pallet operation with loading during the cut

Frequently Asked Questions

01 What is the work envelope of the H5XP?

720 mm (28.3 in) in each of X, Y and Z, with 50~770 mm (2~30.3 in) from spindle nose to table surface. The two pallets are 500 x 500 mm (20 x 20 in).

02 How does the H5XP differ from the SH500APC?

The SH500APC has an in-line direct spindle with 35 HP (26.1 kW) peak, 60 / 60 / 60 m/min (2,362 / 2,362 / 2,362 ipm) rapids, 0.001° B indexing, an 8 s pallet change and 60T. The H5XP has the belt-type 42 HP (31.3 kW) spindle, 1° indexing and 40T.

03 How many tools does the H5XP carry?

40T as standard and 60T as an option. Tool limits are ∅75 mm (3 in), ∅150 mm (5.9 in) without a neighbouring tool, 400 mm (15.7 in) in length and 8 kg (17.6 lb).

04 How is swarf removed on the H5XP?

By a chain type chip conveyor with dual spiral blade chip screws on the Z axis. The coolant tank holds 520 L (137.4 gal) and coolant through the spindle is standard.
