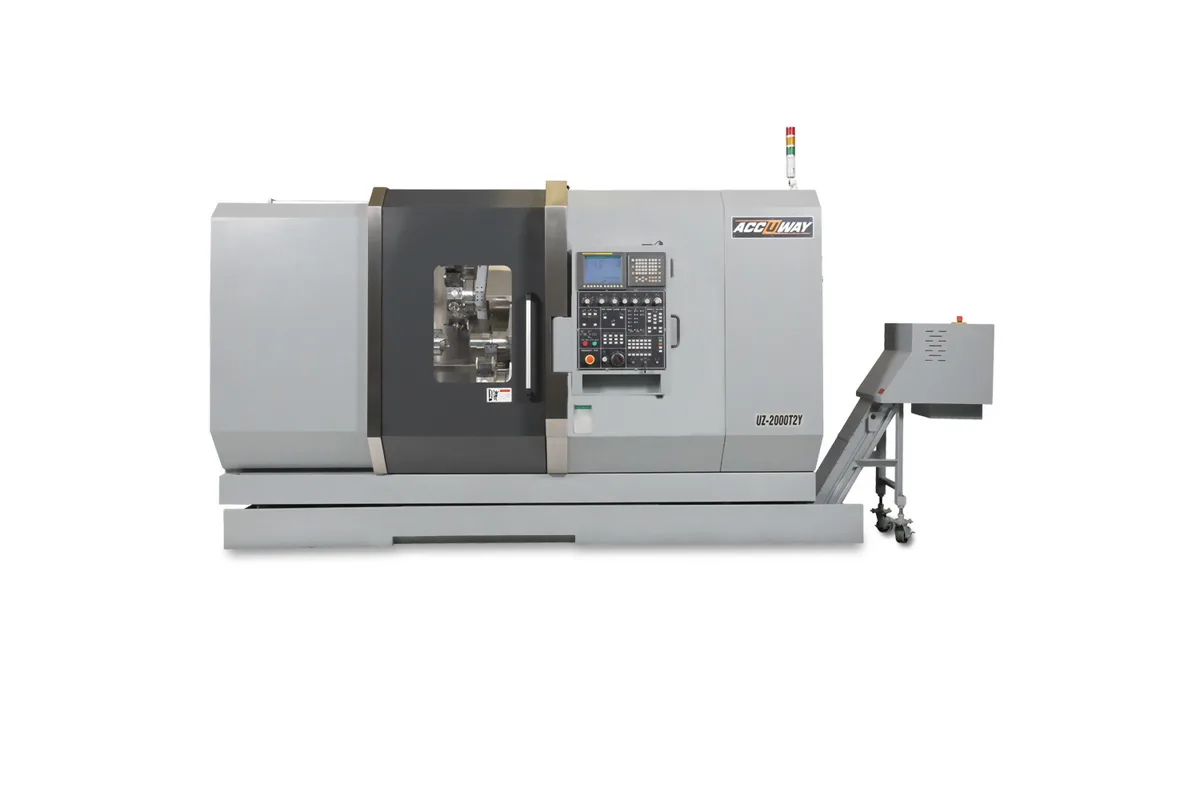

Accuway UZ-2000T2Y
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UZ-2000T2Y cost?
Price estimate
We do not have a price for the Accuway UZ-2000T2Y that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UZ-2000T2Y adds a Y axis to the UZ-2000 twin-spindle, twin-turret platform, and an unusual one. Its travel row reads -45/+65 mm (-1.8/+2.6 in), an asymmetric stroke, and it rapids at 30 m/min (1,181 in/min), three times the Y rate of Accuway's single-turret Y-axis lathes such as the UT-300Y at 10 m/min (394 in/min).
A fast Y matters on a production machine. Milling a flat or drilling a pattern of offset holes involves many short Y moves, and at a slow rapid rate those add up over a shift. The asymmetric stroke gives more reach on one side of centre, useful for cutters that must clear the part before plunging.
The base is shared with the UZ-2000T2M: 210 mm (8.3 in) of X1/X2 travel, 840 mm (33.1 in) of Z1/Z2, a B axis of 920 mm (36.2 in) at 40 m/min (1,575 in/min), a 790 mm (31.1 in) turning length and a 320 mm (12.6 in) turning diameter. On this model Z1/Z2 rapids at 30 m/min (1,181 in/min). The turrets hold 16+16 tools on BMT 40 tooling, with rotary tools at 6,000 rpm and 3.7/5.5 kW (5.0/7.4 hp).
Main spindle choices are A2-5 built-in at 5,000 rpm, A2-8 belt at 3,500 rpm or A2-11 belt at 2,500 rpm. The second spindle is A2-5 with a 6 in chuck. One row should be confirmed with Accuway before ordering: the second spindle motor is printed as 11/11.5 kW (14.8/15.4 hp), where the sister model lists 11/15. Weight is 11,000 kg (24,250 lb).
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 660 mm (26.0 in) |
| Swing Over Saddle | 620 mm (24.4 in) |
| Max Turning Diameter Sp1 | 320 mm (12.6 in) |
| Max Turning Diameter Sp2 | 320 mm (12.6 in) |
| Max Turning Length | 790 mm (31.1 in) |
| Guideway Type | Linear + Box |
| Spindle Nose | A2-5 / A2-8 / A2-11 |
| Chuck Size | 6/8 in | 10 in | 15 in |
| Bar Capacity | 52 / 78 / 105 mm (2.0 / 3.1 / 4.1 in) |
| Max Spindle Speed | 5,000 rpm (Built-in) / 3,500 rpm (Belt) / 2,500 rpm (Belt) |
| Spindle Motor Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp) |
| Spindle 2 Nose | A2-5 |
| Spindle 2 Chuck Size | 6 in |
| Spindle 2 Bar Capacity | 52 mm (2.0 in) |
| Spindle 2 Speed | 5,000 rpm (Built-in) |
| Spindle 2 Power | Cont. / 30min: 11/11.5 kW (14.8/15.4 hp) |
| X1 X2 Axis Travel | 210 mm (8.3 in) |
| Z1 Z2 Axis Travel | 840 mm (33.1 in) |
| Y Axis Travel | -45/+65 mm (-1.8/+2.6 in) |
| B Axis Travel | 920 mm (36.2 in) |
| Rapid Traverse X1 X2 | 30 m/min (1,181 in/min) |
| Rapid Traverse Z1 Z2 | 30 m/min (1,181 in/min) |
| Rapid Traverse Y | 30 m/min (1,181 in/min) |
| Rapid Traverse B | 40 m/min (1,575 in/min) |
| Turret Tooling | BMT 40 |
| Turret Drive | Servo mechanical |
| Turret Stations | 16+16 |
| Square Tool Shank | 20 mm (0.8 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Machine Dimensions | L x W x H: 4.7 x 2.4 x 2.3 m (185.0 x 94.5 x 90.6 in) |
| Machine Weight | 11,000 kg (24,250 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Y axis with a rapid traverse of 30 m/min (1,181 in/min)
- Y travel of -45/+65 mm (-1.8/+2.6 in)
- 16+16 stations with 6,000 rpm rotary tools
- 790 mm (31.1 in) turning length and 920 mm (36.2 in) B-axis travel
- Built-in 5,000 rpm spindle in the A2-5 column
Limitations
- Second spindle motor printed as 11/11.5 kW (14.8/15.4 hp) and needs confirming
- Only one second-spindle size, A2-5 with a 6 in chuck
- Z1/Z2 rapid of 30 m/min (1,181 in/min), below the UZ-2000T2M
- No accessory lists on the maker's page
Best For
Frequently Asked Questions
01
The row reads -45/+65 mm (-1.8/+2.6 in), with a Y-axis rapid traverse of 30 m/min (1,181 in/min). X1/X2 travel is 210 mm (8.3 in) and Z1/Z2 travel 840 mm (33.1 in).
02
The UZ-2000T2M has no Y axis, Z1/Z2 rapids of 40 m/min (1,575 in/min) and weighs 10,500 kg (23,148 lb). The UZ-2000T2Y has the Y axis, Z1/Z2 rapids of 30 m/min (1,181 in/min) and weighs 11,000 kg (24,250 lb).
03
The spindle 2 motor power. Accuway's table prints 11/11.5 kW (14.8/15.4 hp), which may be a misprint. The main spindle is listed at 11/15 kW (14.8/20.1 hp), with 15/18.5 kW (20.1/24.8 hp) in brackets.
04
Three main-spindle columns: A2-5 with 52 mm (2.0 in) bar capacity at 5,000 rpm (Built-in), A2-8 with 78 mm (3.1 in) at 3,500 rpm (Belt), and A2-11 with 105 mm (4.1 in) at 2,500 rpm (Belt). The second spindle is A2-5, 52 mm (2.0 in), 5,000 rpm.
