Accuway UL-51T2Y
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
max turning diameter sp1
max turning diameter sp2
How much does the Accuway UL-51T2Y cost?
Price estimate
We do not have a price for the Accuway UL-51T2Y that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

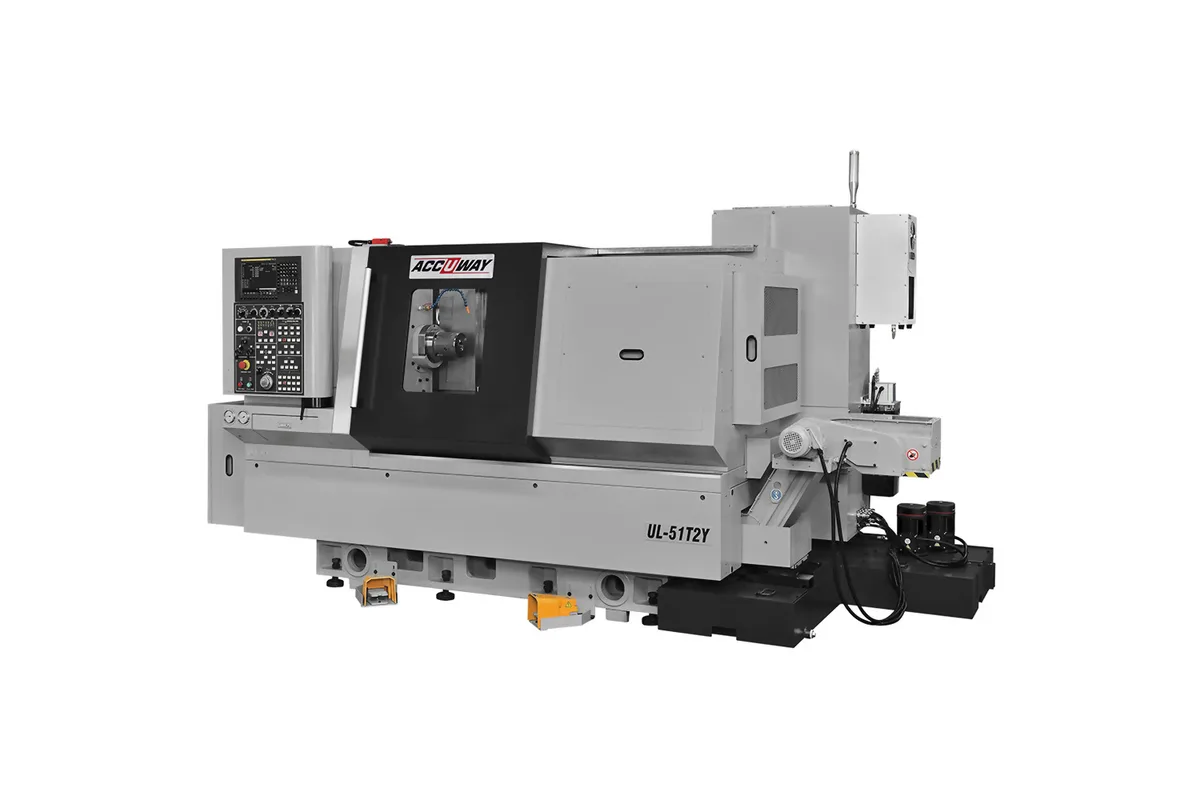

The Accuway UL-51T2Y is a compact turn-mill machine with two spindles, two full turrets and a Y axis. Its station row reads 12+12, and unlike the JL-51T2Y it has a B axis, 590 mm (23.2 in) of travel at 30 m/min (1,181 in/min), that brings the second spindle to the first.
Two equal turrets change how a job is balanced. Each side of the part gets twelve tools, so a second operation with as many features as the first is no problem, and both turrets can work on one spindle when the other is idle. X1/X2 travel is 155 mm (6.1 in) and Z1/Z2 travel 220 mm (8.7 in). Y travel is ±40 mm (±1.6 in).
The parts are small. Maximum turning diameter is 160 mm (6.3 in) at SP1 and 100 mm (3.9 in) at SP2, and turning length 150 mm (5.9 in). Tool shanks are small to match, 20 mm (0.8 in) square and 25 mm (1.0 in) round. Rotary tools turn at 6,000 rpm with 2.2/3.7 kW (3.0/5.0 hp).
Spindle 1 has an A2-6 nose, a 52 mm (2.0 in) bar capacity, 5,000 rpm and 11/15 kW (14.8/20.1 hp). Spindle 2 has an A2-5 nose, 44 mm (1.7 in), 6,000 rpm and 5.5/7.5 kW (7.4/10.1 hp). The machine measures 3.25 x 1.75 x 1.9 m (128.0 x 68.9 x 74.8 in) and weighs 6,600 kg (14,550 lb), a lot of mass for the part size. Accuway publishes no accessory lists for this model.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Max Turning Diameter Sp1 | 160 mm (6.3 in) |
| Max Turning Diameter Sp2 | 100 mm (3.9 in) |
| Max Turning Length | 150 mm (5.9 in) |
| Guideway Type | Linear + Box |
| Spindle Nose | A2-6 |
| Chuck Size | 6 / 8 in |
| Bar Capacity | 52 mm (2.0 in) |
| Max Spindle Speed | 5,000 rpm |
| Spindle Motor Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp) |
| Spindle 2 Nose | A2-5 |
| Spindle 2 Chuck Size | 6 / 8 in |
| Spindle 2 Bar Capacity | 44 mm (1.7 in) |
| Spindle 2 Speed | 6,000 rpm |
| Spindle 2 Power | Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp) |
| X1 X2 Axis Travel | 155 mm (6.1 in) |
| Z1 Z2 Axis Travel | 220 mm (8.7 in) |
| Y Axis Travel | ±40 mm (±1.6 in) |
| B Axis Travel | 590 mm (23.2 in) |
| Rapid Traverse X1 X2 | 20 m/min (787 in/min) |
| Rapid Traverse Z1 Z2 | 30 m/min (1,181 in/min) |
| Rapid Traverse Y | 12 m/min (472 in/min) |
| Rapid Traverse B | 30 m/min (1,181 in/min) |
| Turret Tooling | BMT-55N power+servo |
| Turret Stations | 12+12 |
| Square Tool Shank | 20 mm (0.8 in) |
| Round Tool Shank | 25 mm (1.0 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Power | 2.2/3.7 kW (3.0/5.0 hp) |
| Machine Dimensions | L x W x H: 3.25 x 1.75 x 1.9 m (128.0 x 68.9 x 74.8 in) |
| Machine Weight | 6,600 kg (14,550 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Two 12-station turrets, 12+12, with rotary tools at 6,000 rpm
- B-axis travel of 590 mm (23.2 in) at 30 m/min (1,181 in/min)
- Y-axis travel of ±40 mm (±1.6 in)
- 6,600 kg (14,550 lb) in a 3.25 m long machine
- Main spindle of 11/15 kW (14.8/20.1 hp) at 5,000 rpm
Limitations
- Turning length of 150 mm (5.9 in)
- Rotary tool motor of 2.2/3.7 kW (3.0/5.0 hp)
- Second spindle has 5.5/7.5 kW (7.4/10.1 hp)
- No accessory lists on the maker's page
Best For
Frequently Asked Questions
01
The number of tools row reads 12+12, two turrets of twelve. The tooling row reads BMT-55N power+servo. Square shanks are 20 mm (0.8 in), round shanks 25 mm (1.0 in), and rotary tools run to 6,000 rpm.
02
X1/X2 155 mm (6.1 in), Z1/Z2 220 mm (8.7 in), Y ±40 mm (±1.6 in) and B 590 mm (23.2 in). Rapid traverse is 20 m/min (787 in/min) in X1/X2, 30 m/min (1,181 in/min) in Z1/Z2 and B, and 12 m/min (472 in/min) in Y.
03
Maximum turning diameter is 160 mm (6.3 in) at SP1 and 100 mm (3.9 in) at SP2; maximum turning length is 150 mm (5.9 in). Bar capacity is 52 mm (2.0 in) on the first spindle and 44 mm (1.7 in) on the second.
04
The UA-1500T2Y has 16+16 stations, a 300 mm (11.8 in) turning diameter at both spindles and a 480 mm (18.9 in) turning length, at a weight of 10,000 kg (22,046 lb).
More from Accuway
Other Mill-Turn / Multi-Tasking Machines
Johnford ST-160FX+B+C+Y
Citizen Miyano BNE-51MSY

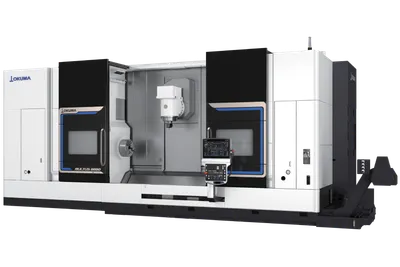

Okuma MULTUS B550

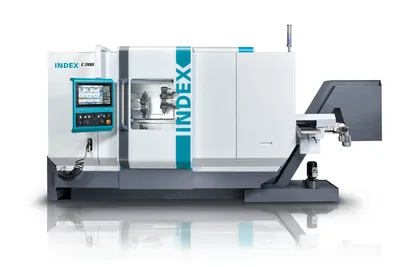

INDEX C200
