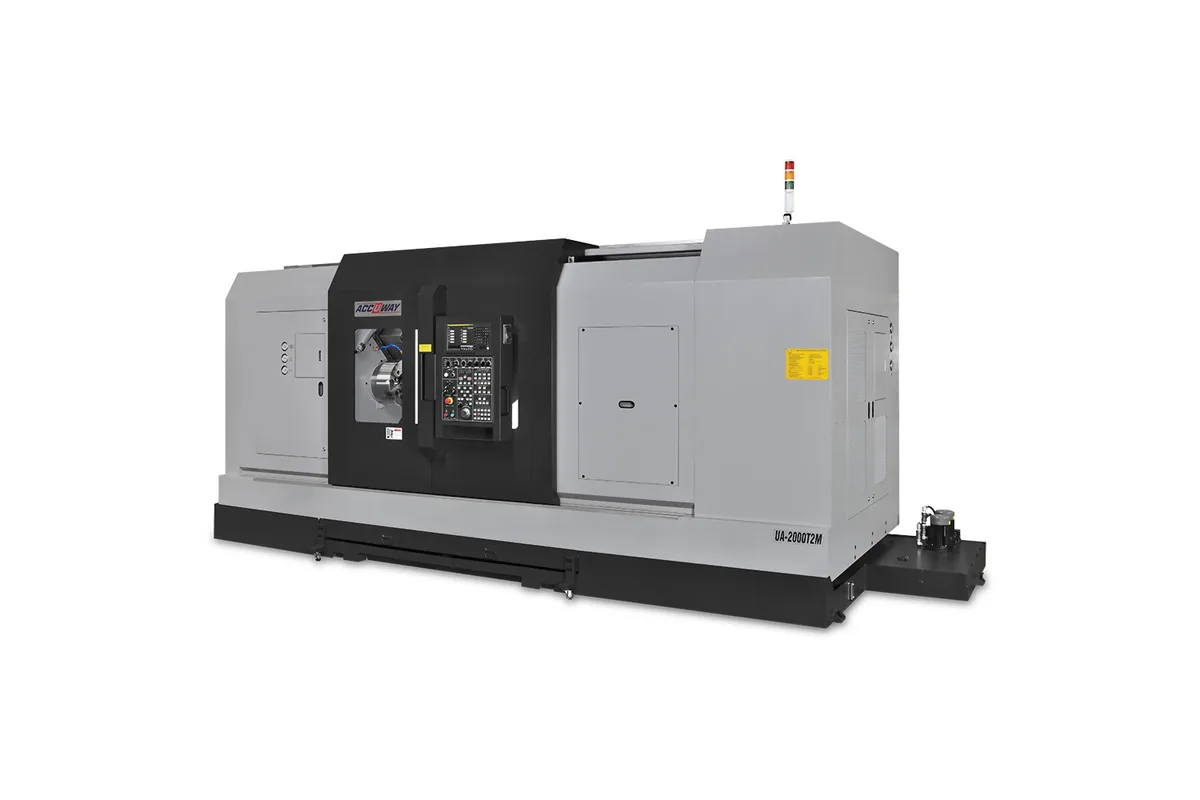

Accuway UA-2000T2M
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UA-2000T2M cost?
Price estimate
We do not have a price for the Accuway UA-2000T2M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UA-2000T2M is a twin-spindle, twin-turret turn-mill machine in the 10 to 12 in chuck class. Both spindles have an A2-8 nose and a 75 mm (3.0 in) bar capacity, and the two turrets carry 16+16 driven-tool stations.
The second spindle travels 1,500 mm (59.1 in) on its B axis, far more than the 600 mm (23.6 in) of Z1/Z2 travel. A stroke that long lets the two chucks stand well apart, which gives room to load and unload each spindle with a gantry or robot and to run two different operations side by side without the turrets crowding each other. B and Z1/Z2 both rapid at 30 m/min (1,181 in/min).
Turning diameter is 340 mm (13.4 in) at SP1 and SP2, and turning length 510 mm (20.1 in). The speed row gives two columns, 3,500 rpm and 2,500 rpm, both marked for a 3 jaw chuck, matching the chuck row of 10 / 12 in. Spindle 1 has 15/18.5 kW (20.1/24.8 hp), spindle 2 has 11/15 kW (14.8/20.1 hp).
Rotary tools run to 6,000 rpm on 3.7/5.5 kW (5.0/7.4 hp) in BMT-55N turrets. The table has no Y-axis rows, so milling is on the centreline at both spindles. Guideways are Linear + Box. At 11,500 kg (25,353 lb) and 6.0 m in length this is a line machine, to be planned with its conveyor and loading in mind. The UA-2000T2MB on the same page is the big-bore variant. No accessory lists are published.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 660 mm (26.0 in) |
| Swing Over Saddle | 620 mm (24.4 in) |
| Max Turning Diameter Sp1 | 340 mm (13.4 in) |
| Max Turning Diameter Sp2 | 340 mm (13.4 in) |
| Max Turning Length | 510 mm (20.1 in) |
| Guideway Type | Linear + Box |
| Spindle Nose | A2-8 |
| Chuck Size | 10 / 12 in |
| Bar Capacity | 75 mm (3.0 in) |
| Max Spindle Speed | 3,500 rpm (3 jaw) / 2,500 rpm (3 jaw) |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp) |
| Spindle 2 Nose | A2-8 |
| Spindle 2 Chuck Size | 10 / 12 in |
| Spindle 2 Bar Capacity | 75 mm (3.0 in) |
| Spindle 2 Speed | 3,500 rpm (3 jaw) / 2,500 rpm (3 jaw) |
| Spindle 2 Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp) |
| X1 X2 Axis Travel | 210 mm (8.3 in) |
| Z1 Z2 Axis Travel | 600 mm (23.6 in) |
| B Axis Travel | 1,500 mm (59.1 in) |
| Rapid Traverse X1 X2 | 20 m/min (787 in/min) |
| Rapid Traverse Z1 Z2 | 30 m/min (1,181 in/min) |
| Rapid Traverse B | 30 m/min (1,181 in/min) |
| Turret Tooling | BMT-55N |
| Turret Drive | Servo mechanical |
| Turret Stations | 16+16 |
| Square Tool Shank | 20 mm (0.8 in), in brackets 25 mm (1.0 in) |
| Round Tool Shank | 32 mm (1.3 in), in brackets 40 mm (1.6 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Machine Dimensions | L x W x H: 6.0 x 2.4 x 2.4 m (236.2 x 94.5 x 94.5 in) |
| Machine Weight | 11,500 kg (25,353 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 16+16 stations with 6,000 rpm rotary tools
- B-axis travel of 1,500 mm (59.1 in) at 30 m/min (1,181 in/min)
- 340 mm (13.4 in) turning diameter at both spindles
- A2-8 noses with 75 mm (3.0 in) bar capacity on both spindles
- 15/18.5 kW (20.1/24.8 hp) main spindle
Limitations
- No Y-axis rows in the table
- 6.0 m long and 11,500 kg (25,353 lb)
- Second spindle has 11/15 kW (14.8/20.1 hp), less than the first
- No accessory lists on the maker's page
Best For
Frequently Asked Questions
01
Both have an A2-8 nose and 75 mm (3.0 in) of bar capacity; the chuck row reads 10 / 12 in. The speed row reads 3,500 rpm (3 jaw) / 2,500 rpm (3 jaw). Spindle 1 has 15/18.5 kW (20.1/24.8 hp), spindle 2 has 11/15 kW (14.8/20.1 hp).
02
X1/X2 travel 210 mm (8.3 in), Z1/Z2 travel 600 mm (23.6 in) and B-axis travel 1,500 mm (59.1 in). Rapids are 20 m/min (787 in/min) in X1/X2 and 30 m/min (1,181 in/min) in Z1/Z2 and B.
03
The UA-2000T2MB has A2-11 spindles with 15 in chucks and 105 mm (4.1 in) of bar capacity, a 440 mm (17.3 in) turning length and 13,000 kg (28,660 lb). The UA-2000T2M has A2-8 spindles, 75 mm (3.0 in), 510 mm (20.1 in) and 11,500 kg (25,353 lb).
04
BMT-55N with servo mechanical drive, 16+16 stations. The square shank row gives 20 mm (0.8 in), in brackets 25 mm (1.0 in), and the round shank row 32 mm (1.3 in), in brackets 40 mm (1.6 in). Rotary tool power is 3.7/5.5 kW (5.0/7.4 hp).
