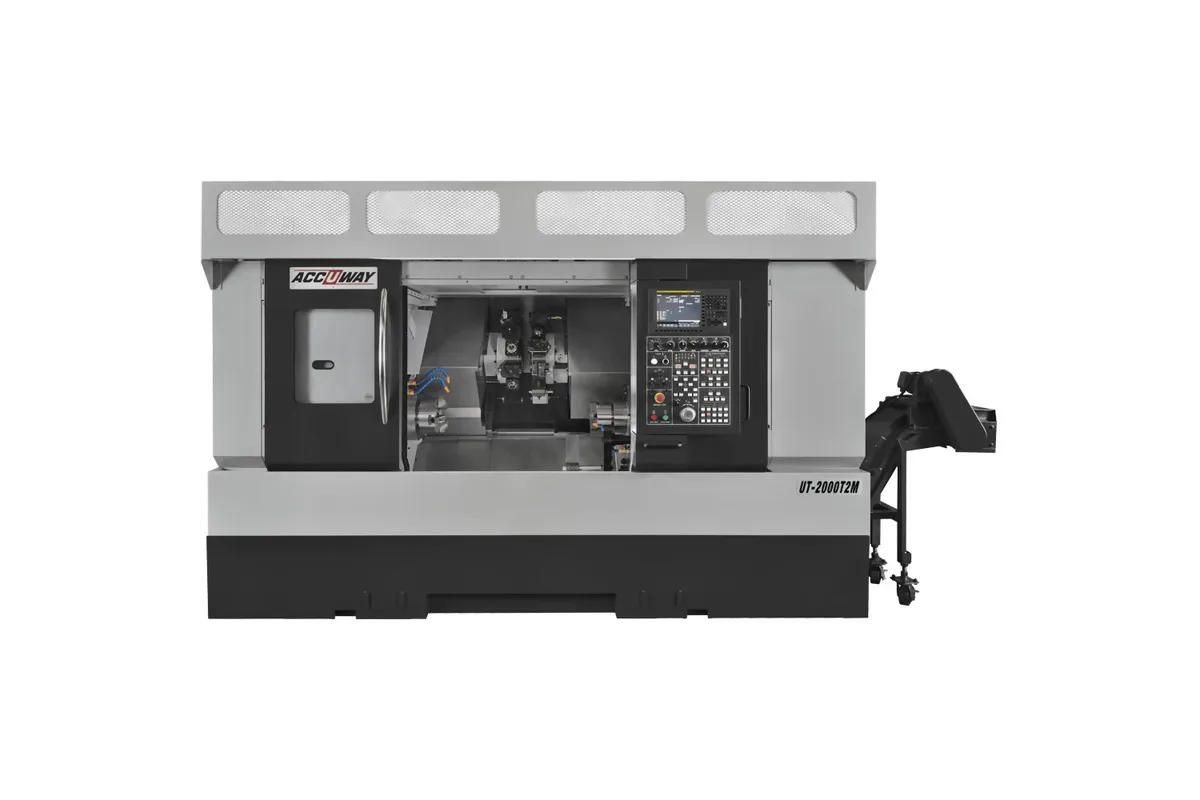

Accuway UT-2000T2M
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
control
swing over bed
swing over saddle
max turning diameter sp1
How much does the Accuway UT-2000T2M cost?
Price estimate
We do not have a price for the Accuway UT-2000T2M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UT-2000T2M has two spindles and two live turrets on a box-way bed. Each turret has 12 stations with BMT-40 tooling and drives rotary tools at 6,000 rpm, so both sides of a part can be turned, drilled and milled in parallel.
It differs from Accuway's UA and UZ twin-turret machines in its ways. The UZ-2000T2M, for one, lists Linear + Box guideways and Z1/Z2 rapids of 40 m/min (1,575 in/min); this model lists box ways only, with 20 m/min (787 in/min) in X and Z. It gives up speed for stiffness and damping in the cut. It weighs 7,000 kg (15,432 lb).
The spindles are unequal. Spindle 1 has an A2-6 nose, an 8 in chuck, a 52 mm (2.0 in) bar capacity, 4,500 rpm and 11/15 kW (14.8/20.1 hp). Spindle 2 has an A2-5 nose, a 6 in chuck, 44 mm (1.7 in), 6,000 rpm and 5.5/7.5 kW (7.4/10.1 hp). Turning diameter is 220 mm (8.7 in) at both; turning length is 240 mm (9.4 in) at SP1 and 350 mm (13.8 in) at SP2.
Axis strokes are 220 mm (8.7 in) for X1/X2 and 350 mm (13.8 in) for Z1/Z2, and the second spindle travels 850 mm (33.5 in) on the B axis. Rotary tool power is 3.7/5.5 kW (5.0/7.4 hp). There is no Y axis in the table, and Accuway's page carries no accessory lists. Dimensions are 4.7 x 2.1 x 2 m (185.0 x 82.7 x 78.7 in).
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 600 mm (23.6 in) |
| Swing Over Saddle | 260 mm (10.2 in) |
| Max Turning Diameter Sp1 | 220 mm (8.7 in) |
| Max Turning Diameter Sp2 | 220 mm (8.7 in) |
| Max Turning Length Sp1 | 240 mm (9.4 in) |
| Max Turning Length Sp2 | 350 mm (13.8 in) |
| Guideway Type | Box |
| Spindle Nose | A2-6 |
| Chuck Size | 8 in |
| Bar Capacity | 52 mm (2.0 in) |
| Max Spindle Speed | 4,500 rpm |
| Spindle Motor Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp) |
| Spindle 2 Nose | A2-5 |
| Spindle 2 Chuck Size | 6 in |
| Spindle 2 Bar Capacity | 44 mm (1.7 in) |
| Spindle 2 Speed | 6,000 rpm |
| Spindle 2 Power | Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp) |
| X Axis Travel | X1/X2: 220 mm (8.7 in) |
| Z Axis Travel | Z1/Z2: 350 mm (13.8 in) |
| B Axis Travel | 850 mm (33.5 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 20 m/min (787 in/min) |
| Rapid Traverse B | 20 m/min (787 in/min) |
| Turret Tooling | BMT-40 |
| Turret Drive | Servo mechanical |
| Turret Stations | 12+12 |
| Square Tool Shank | 20 mm (0.8 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Machine Dimensions | L x W x H: 4.7 x 2.1 x 2 m (185.0 x 82.7 x 78.7 in) |
| Machine Weight | 7,000 kg (15,432 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Two turrets, 12+12 BMT-40 stations, both with 6,000 rpm rotary tools
- Box guideways on a twin-turret machine
- B-axis travel of 850 mm (33.5 in)
- Second spindle to 6,000 rpm
- 7,000 kg (15,432 lb) in a 4.7 m long footprint
Limitations
- No Y-axis rows in the table
- Rapid traverse of 20 m/min (787 in/min), below the UA and UZ machines
- Spindle 2 has 5.5/7.5 kW (7.4/10.1 hp) and a 44 mm (1.7 in) bore
- No accessory lists on the maker's page
Best For
Frequently Asked Questions
01
Two, with 12+12 stations, BMT-40 tooling and servo mechanical drive. Maximum rotary tool speed is 6,000 rpm and rotary tool power 3.7/5.5 kW (5.0/7.4 hp). Shanks are 20 mm (0.8 in) square and 32 mm (1.3 in) round.
02
Spindle 1: A2-6, 8 in chuck, 52 mm (2.0 in) bar, 4,500 rpm, 11/15 kW (14.8/20.1 hp). Spindle 2: A2-5, 6 in chuck, 44 mm (1.7 in) bar, 6,000 rpm, 5.5/7.5 kW (7.4/10.1 hp).
03
The UZ-2000T2M has 16+16 stations, Linear + Box guideways, Z1/Z2 rapids of 40 m/min (1,575 in/min) and weighs 10,500 kg (23,148 lb). The UT-2000T2M has 12+12 stations, box guideways, 20 m/min (787 in/min) rapids and weighs 7,000 kg (15,432 lb).
04
Maximum turning diameter is 220 mm (8.7 in) at SP1 and SP2. Maximum turning length is 240 mm (9.4 in) at SP1 and 350 mm (13.8 in) at SP2. Swing over bed is 600 mm (23.6 in).
