Accuway Mill-Turn / Multi-Tasking Machines

Accuway UZ-2000T2M

Q: How much does the Accuway UZ-2000T2M cost?

The price estimate for the Accuway UZ-2000T2M is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-uz-2000t2m#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

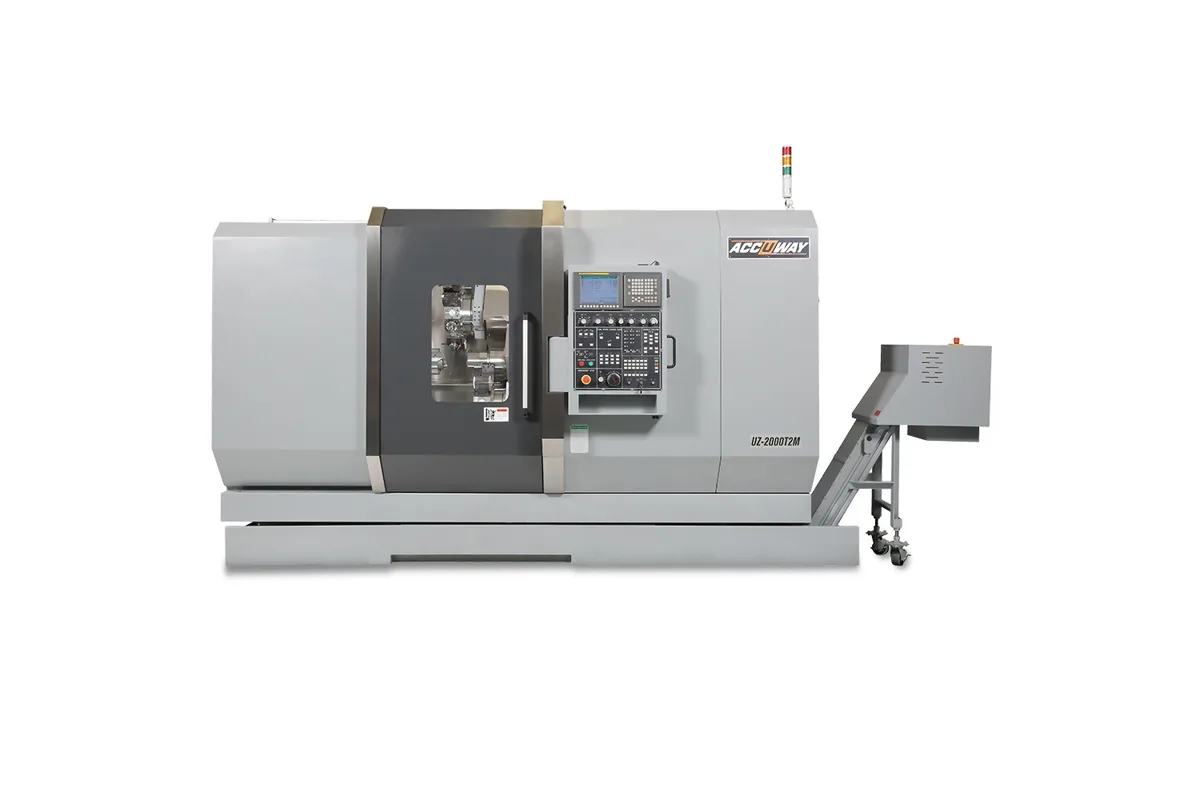

Accuway UZ-2000T2M multi-axis complex turning-milling center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

5,000 rpm (Built-in) / 3,500 rpm (Belt) / 3,500 rpm (Belt) / 2,500 rpm (Belt)

Spindle Power

Cont. / 30min: 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp)

Max Turn Length

790 mm (31.1 in)

control

FANUC 0i-T

swing over bed

660 mm (26.0 in)

swing over saddle

620 mm (24.4 in)

How much does the Accuway UZ-2000T2M cost?

Price estimate

Uncertain

We do not have a price for the Accuway UZ-2000T2M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Rapid traverse of 40 m/min (1,575 in/min) in Z1/Z2 and B is the headline of the Accuway UZ-2000T2M, a twin-spindle, twin-turret turn-mill machine built for output. X1/X2 rapids at 30 m/min (1,181 in/min).

The first spindle column continues the theme. It pairs an A2-5 nose and 6 in chuck with a built-in motor spindle at 5,000 rpm, at both ends. The other three columns use belt-driven main spindles: A2-8 with a 10 in chuck at 3,500 rpm, or A2-11 with a 15 in chuck at 2,500 rpm. Second-spindle choices are A2-5 or A2-6, all built-in, at 5,000 rpm or 4,500 rpm. A buyer therefore picks between a quick small-part machine and a larger-chuck machine on the same base.

Long Z travel is the other feature. Z1/Z2 is 840 mm (33.1 in) and turning length 790 mm (31.1 in), more than any UA twin-turret model, with a B-axis travel of 920 mm (36.2 in). Turning diameter is 320 mm (12.6 in) at SP1 and SP2.

Turrets are BMT-40 with 16+16 stations, servo mechanical drive, and rotary tools at 6,000 rpm on 3.7/5.5 kW (5.0/7.4 hp). Bar capacity runs from 52 mm (2.0 in) to 105 mm (4.1 in) on the main spindle. Motor power is 11/15 kW (14.8/20.1 hp), with 15/18.5 kW (20.1/24.8 hp) in brackets for spindle 1. The table shows no Y axis; the UZ-2000T2Y has one. Weight is 10,500 kg (23,148 lb). No accessory lists are published.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	660 mm (26.0 in)
Swing Over Saddle	620 mm (24.4 in)
Max Turning Diameter Sp1	320 mm (12.6 in)
Max Turning Diameter Sp2	320 mm (12.6 in)
Max Turning Length	790 mm (31.1 in)
Guideway Type	Linear + Box
Spindle Nose	A2-5 / A2-8 / A2-8 / A2-11
Chuck Size	6 / 10 / 10 / 15 in
Bar Capacity	52 / 78 / 78 / 105 mm (2.0 / 3.1 / 3.1 / 4.1 in)
Max Spindle Speed	5,000 rpm (Built-in) / 3,500 rpm (Belt) / 3,500 rpm (Belt) / 2,500 rpm (Belt)
Spindle Motor Power	Cont. / 30min: 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp)
Spindle 2 Nose	A2-5 / A2-5 / A2-6 / A2-6
Spindle 2 Chuck Size	6 / 6 / 8 / 8 in
Spindle 2 Bar Capacity	52 / 52 / 65 / 65 mm (2.0 / 2.0 / 2.6 / 2.6 in)
Spindle 2 Speed	5,000 rpm (Built-in) / 5,000 rpm (Built-in) / 4,500 rpm (Built-in) / 4,500 rpm (Built-in)
Spindle 2 Power	Cont. / 30min: 11/15 kW (14.8/20.1 hp)
X1 X2 Axis Travel	210 mm (8.3 in)
Z1 Z2 Axis Travel	840 mm (33.1 in)
B Axis Travel	920 mm (36.2 in)
Rapid Traverse X1 X2	30 m/min (1,181 in/min)
Rapid Traverse Z1 Z2	40 m/min (1,575 in/min)
Rapid Traverse B	40 m/min (1,575 in/min)
Turret Tooling	BMT-40
Turret Drive	Servo mechanical
Turret Stations	16+16
Square Tool Shank	20 mm (0.8 in)
Round Tool Shank	32 mm (1.3 in)
Rotary Tool Speed	6,000 rpm
Rotary Tool Power	3.7/5.5 kW (5.0/7.4 hp)
Machine Dimensions	L x W x H: 4.7 x 2.4 x 2.4 m (185.0 x 94.5 x 94.5 in)
Machine Weight	10,500 kg (23,148 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

40 m/min (1,575 in/min) rapids in Z1/Z2 and B
Built-in spindles at 5,000 rpm in the A2-5 column
790 mm (31.1 in) turning length on a twin-turret machine
16+16 BMT-40 stations with 6,000 rpm rotary tools
Four main-spindle columns from 6 in to 15 in chucks

Limitations

No Y-axis rows in the table
Larger main spindles are belt driven at 3,500 rpm or 2,500 rpm
Second spindle limited to A2-6 and 65 mm (2.6 in)
No accessory lists on the maker's page

Best For

High-volume two-sided parts with short cycles Shaft-like parts up to 790 mm handed between spindles Small bar parts on the 5,000 rpm built-in spindles Production lines balancing two operations

Frequently Asked Questions

01 How fast are the axes of the Accuway UZ-2000T2M?

X1/X2 rapid traverse is 30 m/min (1,181 in/min); Z1/Z2 and B-axis rapid traverse are 40 m/min (1,575 in/min). Travels are 210 mm (8.3 in), 840 mm (33.1 in) and 920 mm (36.2 in).

02 Which spindle options does the UZ-2000T2M list?

Main spindle: A2-5 at 5,000 rpm (Built-in), A2-8 at 3,500 rpm (Belt) in two columns, or A2-11 at 2,500 rpm (Belt). Bar capacity is 52 mm (2.0 in), 78 mm (3.1 in) or 105 mm (4.1 in). The second spindle is A2-5 or A2-6, built-in.

03 How does the UZ-2000T2M compare with the UA-2000T2M?

The UA-2000T2M has BMT-55N turrets, a 600 mm (23.6 in) Z1/Z2 travel, 30 m/min (1,181 in/min) Z rapids and weighs 11,500 kg (25,353 lb). The UZ-2000T2M has BMT-40 turrets, 840 mm (33.1 in) of Z1/Z2 travel, 40 m/min (1,575 in/min) rapids and weighs 10,500 kg (23,148 lb).

04 What are the dimensions of the UZ-2000T2M?

4.7 x 2.4 x 2.4 m (185.0 x 94.5 x 94.5 in) as length, width and height. Swing over bed is 660 mm (26.0 in) and swing over saddle 620 mm (24.4 in). Guideways are Linear + Box.
