Yamazaki Mazak Mill-Turn / Multi-Tasking Machines

Mazak INTEGREX i-100 NEO

Est. $290,000 - $420,000 Specs verified 2026-10-02 · mazak.com Updated 2026-10-02

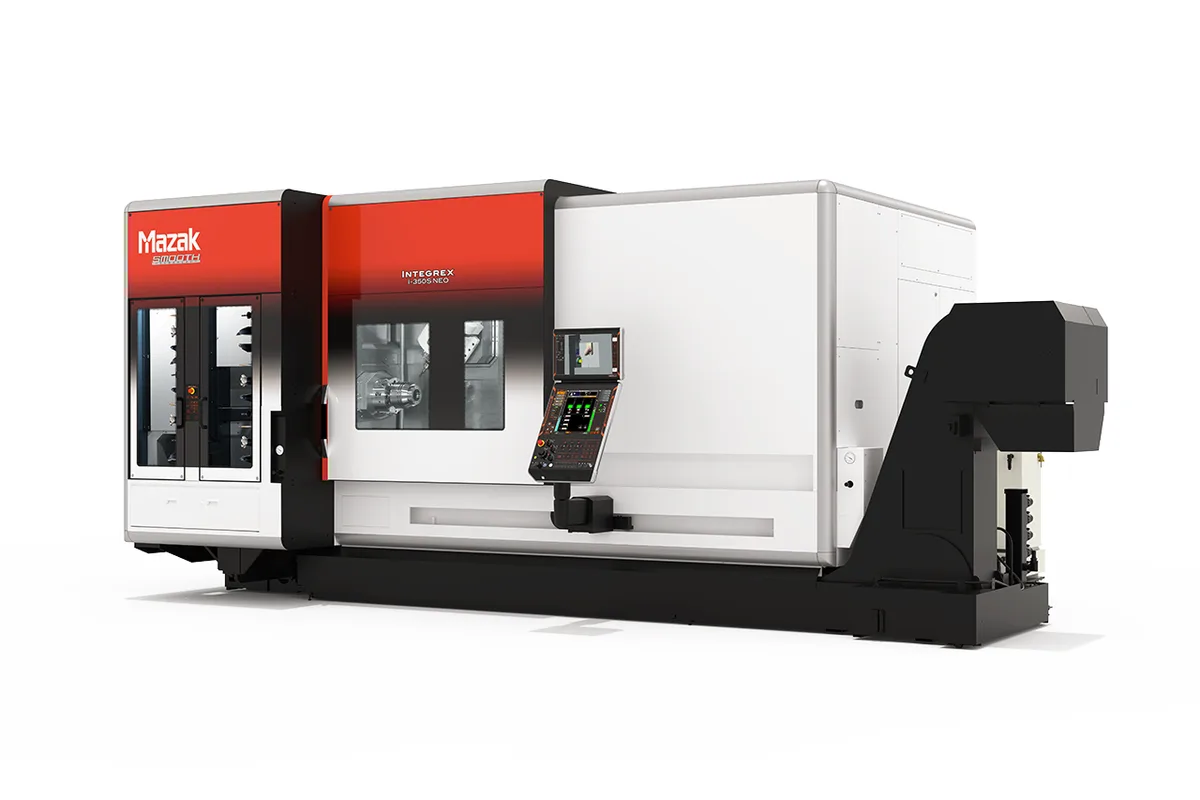

Image: mazak.com, Yamazaki Mazak

Key Specifications

X Travel

21 in (533 mm)

Y Travel

8 in (203 mm)

Z Travel

25 in (635 mm)

Max Spindle

6,000 rpm

Spindle Taper

HSK-T63, HSK-A63

Tool Capacity

36 tools

How much does the Mazak INTEGREX i-100 NEO cost?

Estimated price range

Est.$290,000 - $420,000

Our best estimate for a mill-turn / multi-tasking machine in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.

Overview

The Mazak INTEGREX i-100 NEO is the 6 in chuck, tailstock model of the INTEGREX i NEO range: a 590U bed with 23 in (584 mm) of turning length, a Ø24 in (610 mm) maximum turning diameter and a main spindle that runs to 6,000 rpm. What stands out in its table is the balance of power. The turning spindle is rated 7.5 kW (10 HP) continuous, while the 12,000 rpm milling spindle is rated 11 kW (15 HP) continuous.

A milling motor stronger than the turning motor says a lot about the intended work: small-diameter parts where turning loads are light and most of the cycle is milling, drilling and tapping. Milling torque is 46.1 Nm (34 ft-lb) continuous and 57.3 Nm (42 ft-lb) (40% ED), with 12 kW (16 HP) available at the 40% ED rating. The turning spindle's own 40% ED rating is 11 kW (15 HP). Mazak says of the series that the 12,000 rpm milling spindle is compact, to limit interference, and suited to steel and castings.

X travel is 21 in (533 mm) with a 1,890 ipm (48 m/min) rapid; Y is 8 in (203 mm) and Z is 25 in (635 mm), both at 1,575 ipm (40 m/min). Mazak's US table rounds to whole inches, and its series page gives the i-100 NEO and i-200 NEO a 210 mm Y-axis and a 535 mm X-axis. The B-axis covers -30° to +210° in 0.0001° increments, which allows positioning at any angle.

The tailstock is light: an MT No.4 center with 449 lb (204 kg) of thrust, in keeping with slender work on a 6 in chuck. The magazine holds 36 tools, listed with both HSK-T63 and HSK-A63 tapers, up to 12 in (305 mm) long. For the series Mazak states ball screw core cooling on X, Y and Z as a standard specification and names MAZATROL SmoothAi as the CNC. The machine weighs 21,892 lb (9,930 kg).

Full Specifications

Parameter	Value
Bed Length Type	590U
Max Turning Diameter	Ø24 in (610 mm)
Max Turning Length	23 in (584 mm)
Chuck Size	6 in
Max Spindle Speed	6,000 rpm
Spindle Power Intermittent	11 kW (15 HP) (40% ED)
Spindle Motor Power	7.5 kW (10 HP) continuous
Milling Spindle Speed	12,000 rpm
Milling Spindle Torque Intermittent	57.3 Nm (42 ft-lb) (40% ED)
Milling Spindle Torque	46.1 Nm (34 ft-lb) continuous
Milling Spindle Power Intermittent	12 kW (16 HP) (40% ED)
Milling Spindle Power	11 kW (15 HP) continuous
B Axis Indexing Increment	0.0001°
Spindle Taper	HSK-T63, HSK-A63
Tool Capacity	36 tools
Max Tool Diameter (full magazine)	Ø4 in (102 mm)
Max Tool Diameter (adjacent pockets empty)	Ø5 in (127 mm)
Max Tool Length	12 in (305 mm)
Max Tool Weight	11 lb (5 kg)
X-Axis Travel	21 in (533 mm)
Y-Axis Travel	8 in (203 mm)
Z-Axis Travel	25 in (635 mm)
B Axis Range	-30° - +210°
Rapid Traverse X	1,890 ipm (48 m/min)
Rapid Traverse Y	1,575 ipm (40 m/min)
Rapid Traverse Z	1,575 ipm (40 m/min)
Tailstock Taper	MT No.4
Tailstock Thrust	449 lb (204 kg)
Floor Space Required	134 in (3,404 mm) × 108 in (2,743 mm) (W × L)
Machine Height	96 in (2,438 mm)
Machine Weight	21,892 lb (9,930 kg)

Specifications sourced from mazak.com — verified 2026-10-02

Strengths & Limitations

Strengths

Milling spindle rated 11 kW (15 HP) continuous with 46.1 Nm (34 ft-lb) continuous torque at up to 12,000 rpm
Main spindle runs to 6,000 rpm, where the 8 in chuck INTEGREX i-200 NEO lists 5,000 rpm
B-axis from -30° to +210° positioned in 0.0001° increments
36-tool magazine taking tools up to 12 in (305 mm) long, listed with HSK-T63 and HSK-A63 tapers
X rapid of 1,890 ipm (48 m/min) over 21 in (533 mm) of travel
Ball screw core cooling on X, Y and Z is a standard specification for the series

Limitations

Turning spindle is 7.5 kW (10 HP) continuous; the INTEGREX i-200 NEO lists 15 kW (20 HP) continuous on the same travels
Tailstock thrust is 449 lb (204 kg) on an MT No.4 center, which rules out heavily loaded shaft work
The table lists no second spindle: the INTEGREX i-100S NEO is the second-spindle version, with a 33 in (838 mm) turning length
Tool diameter is Ø4 in (102 mm) with a full magazine, Ø5 in (127 mm) only with adjacent pockets empty, and tool weight is capped at 11 lb (5 kg)

Best For

Small-diameter parts on a 6 in chuck where milling dominates the cycle Turning at up to 6,000 rpm on small work Angled features that need 0.0001° B-axis positioning Slender shafts within 23 in (584 mm) that need only light tailstock support High-mix work that benefits from a 36-tool front magazine

Frequently Asked Questions

01 Why is the milling spindle more powerful than the turning spindle on the INTEGREX i-100 NEO?

The table rates the milling spindle at 11 kW (15 HP) continuous and the turning spindle at 7.5 kW (10 HP) continuous. On a 6 in chuck machine the turned diameters are small, so turning loads are light, while milling, drilling and tapping can take most of the cycle. The motor ratings reflect that split.

02 How does the INTEGREX i-100 NEO differ from the INTEGREX i-200 NEO?

The two share travels of 21 in (533 mm), 8 in (203 mm) and 25 in (635 mm) and a 23 in (584 mm) turning length. The INTEGREX i-200 NEO lists an 8 in chuck, 5,000 rpm and 15 kW (20 HP) continuous at 23,765 lb (10,780 kg). The i-100 NEO has a 6 in chuck, 6,000 rpm and 7.5 kW (10 HP) continuous at 21,892 lb (9,930 kg).

03 What is the Y-axis travel of the INTEGREX i-100 NEO?

The table lists 8 in (203 mm). Mazak's US tables are rounded to whole inches, and the series page gives the Y-axis of the i-100 NEO and i-200 NEO as 210 mm, with an X-axis of 535 mm. If a part is close to the limit, work from the metric figures on the series page and confirm with Mazak.

04 What tailstock does the INTEGREX i-100 NEO use?

An MT No.4 tailstock with 449 lb (204 kg) of thrust. That is a light thrust figure, appropriate to slender parts held in a 6 in chuck. Maximum turning length is 23 in (584 mm) on the 590U bed.

05 Which thermal and control features does Mazak list for the series?

For the INTEGREX i NEO series Mazak lists Ai Thermal Shield, which compensates the cutting edge position from spindle speed and machine temperature, temperature-controlled oil around the spindle bearings and headstock, and ball screw core cooling on X, Y and Z as a standard specification. The series page names MAZATROL SmoothAi as the CNC.
