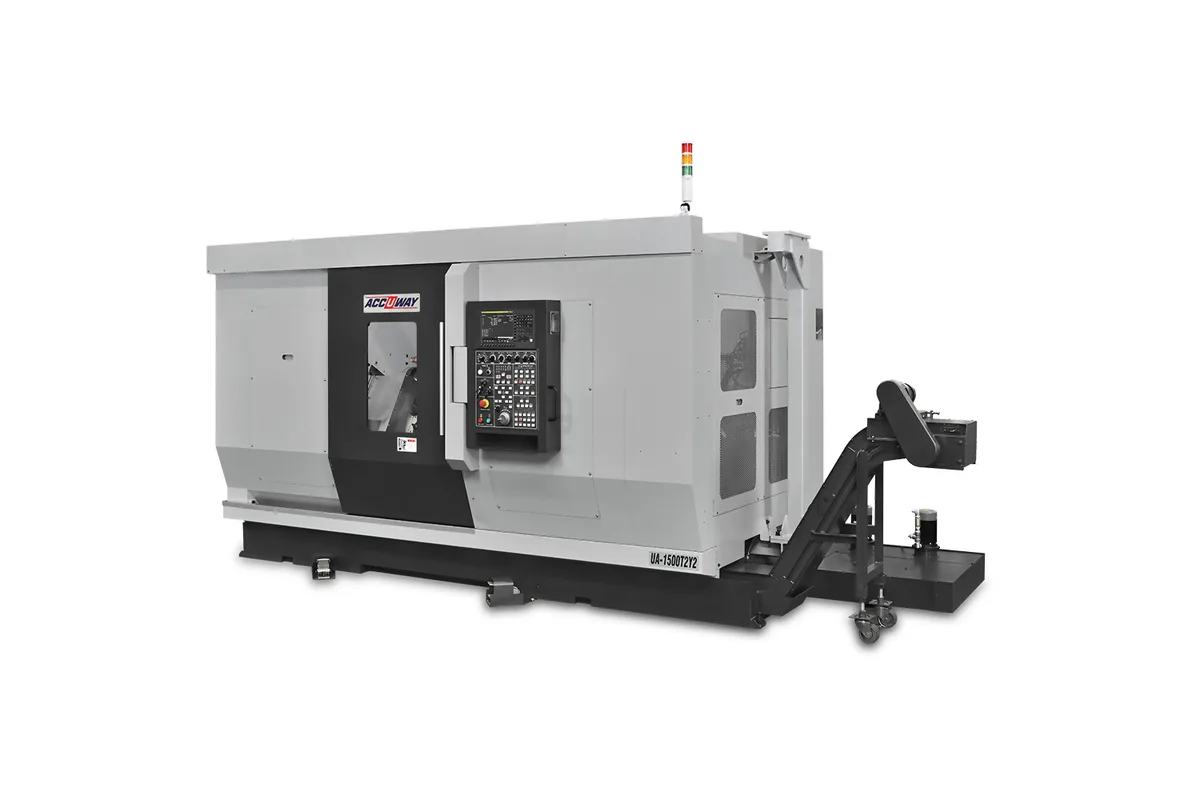

Accuway UA-1500T2Y2
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UA-1500T2Y2 cost?
Price estimate
We do not have a price for the Accuway UA-1500T2Y2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Both turrets of the Accuway UA-1500T2Y2 have a Y axis. The table lists Y1/Y2 travel of ±50 mm (±2.0 in), which makes this a twin-spindle machine where off-centre milling and drilling can run on the front and the back of a part simultaneously.
That is the difference from the UA-1500T2Y, and it comes at a cost in size of work. The UA-1500T2Y2 turns 200 mm (7.9 in) at each spindle and swings 460 mm (18.1 in) over the bed. Stations number 15+15, and the X1/X2 and Z1/Z2 travels are 170 mm (6.7 in) and 570 mm (22.4 in). Turning length is 500 mm (19.7 in). The machine is the heavier of the two at 10,500 kg (23,148 lb).
When is the second Y worth it? When the back of the part carries as much milling as the front. With one Y axis, such a part waits for the Y turret on one side. With two, the cycle is limited only by the longer of the two operations. Parts like manifold blocks from bar, pump rotors and connectors with flats on both ends fit that description.
Spindles are A2-6 at both ends, 52 mm (2.0 in) bar capacity, 4,500 rpm, with 11/15 kW (14.8/20.1 hp) and 7.5/11 kW (10.1/14.8 hp). Rotary tools: 6,000 rpm, 3.7/5.5 kW (5.0/7.4 hp), BMT-55N. The B axis travels 650 mm (25.6 in) at 40 m/min (1,575 in/min); the Y axes move at 10 m/min (394 in/min). No accessory lists are published.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 460 mm (18.1 in) |
| Swing Over Saddle | 400 mm (15.7 in) |
| Max Turning Diameter Sp1 | 200 mm (7.9 in) |
| Max Turning Diameter Sp2 | 200 mm (7.9 in) |
| Max Turning Length | 500 mm (19.7 in) |
| Guideway Type | Linear + Box |
| Spindle Nose | A2-6 |
| Chuck Size | 6 / 8 in |
| Bar Capacity | 52 mm (2.0 in) |
| Max Spindle Speed | 4,500 rpm |
| Spindle Motor Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp) |
| Spindle 2 Nose | A2-6 |
| Spindle 2 Chuck Size | 6 / 8 in |
| Spindle 2 Bar Capacity | 52 mm (2.0 in) |
| Spindle 2 Speed | 4,500 rpm |
| Spindle 2 Power | Cont. / 30min: 7.5/11 kW (10.1/14.8 hp) |
| X1 X2 Axis Travel | 170 mm (6.7 in) |
| Z1 Z2 Axis Travel | 570 mm (22.4 in) |
| Y1 Y2 Axis Travel | ±50 mm (±2.0 in) |
| B Axis Travel | 650 mm (25.6 in) |
| Rapid Traverse X1 X2 | 20 m/min (787 in/min) |
| Rapid Traverse Z1 Z2 | 36 m/min (1,417 in/min) |
| Rapid Traverse Y1 Y2 | 10 m/min (394 in/min) |
| Rapid Traverse B | 40 m/min (1,575 in/min) |
| Turret Tooling | BMT-55N |
| Turret Drive | Servo mechanical |
| Turret Stations | 15+15 |
| Square Tool Shank | 20 mm (0.8 in), in brackets 25 mm (1.0 in) |
| Round Tool Shank | 25 mm (1.0 in), in brackets 32 mm (1.3 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Machine Dimensions | L x W x H: 4 x 2.4 x 2.4 m (157.5 x 94.5 x 94.5 in) |
| Machine Weight | 10,500 kg (23,148 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Y1/Y2 axes of ±50 mm (±2.0 in) on both turrets
- 15+15 BMT-55N stations with 6,000 rpm rotary tools
- B-axis rapid traverse of 40 m/min (1,575 in/min)
- Turning length of 500 mm (19.7 in)
- 10,500 kg (23,148 lb) machine weight
Limitations
- Turning diameter of 200 mm (7.9 in), below the UA-1500T2Y
- Y rapid traverse of 10 m/min (394 in/min)
- Bar capacity limited to 52 mm (2.0 in)
- No accessory lists on the maker's page
Best For
Frequently Asked Questions
01
Yes. The travel table lists Y1/Y2 at ±50 mm (±2.0 in), with a Y1/Y2 rapid traverse of 10 m/min (394 in/min). X1/X2 travel is 170 mm (6.7 in), Z1/Z2 travel 570 mm (22.4 in) and B travel 650 mm (25.6 in).
02
Maximum turning diameter is 200 mm (7.9 in) at SP1 and SP2 and maximum turning length 500 mm (19.7 in). Swing over bed is 460 mm (18.1 in) and swing over saddle 400 mm (15.7 in).
03
15+15, with BMT-55N tooling and servo mechanical drive. Rotary tool speed is 6,000 rpm and rotary tool power 3.7/5.5 kW (5.0/7.4 hp).
04
4 x 2.4 x 2.4 m (157.5 x 94.5 x 94.5 in) as length, width and height, with a net weight of 10,500 kg (23,148 lb). Guideways are listed as Linear + Box.
