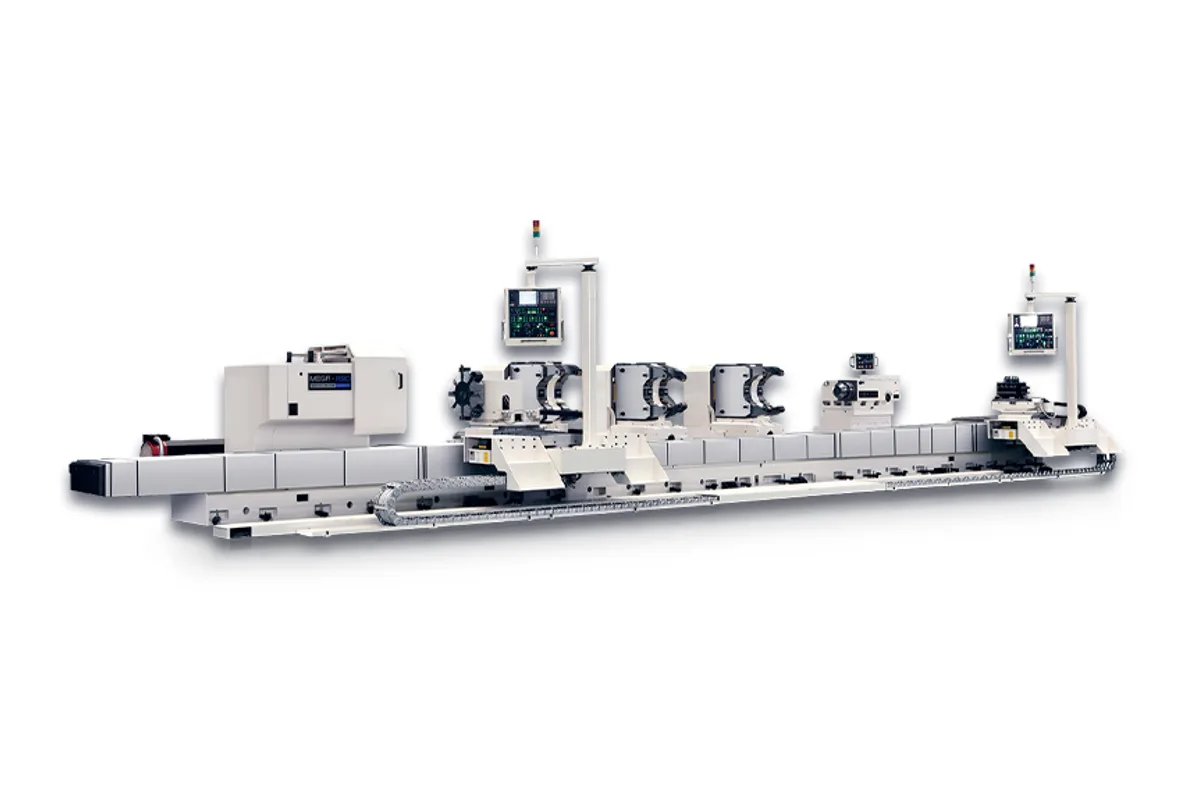

Hwacheon MEGA-R100
Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Power
swing over bed
swing over saddle
max turning diameter
distance between centers
How much does the Hwacheon MEGA-R100 cost?
Price estimate
We do not have a price for the Hwacheon MEGA-R100 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hwacheon MEGA-R100 is a heavy-duty flat-bed lathe built around load and torque. It swings Ø1,600 mm (Ø63.0 in) over the bed and Ø1,000 mm (Ø39.4 in) over the saddle, carries workpieces up to 15,000 kg (33,069 lb), and drives them with a 114 / 71 kW (152.9 / 95.2 hp) motor producing 3,172.5 kgf·m (31,112 Nm) through a three-step automatic gearbox. Spindle speed runs from 1 to 500 rpm.
The bed is 1,520 mm (59.8 in) wide with four ways, where the MEGA+ lathes use a single bed with two ways. Centre distances are 3,000, 4,000, 5,000, 6,000, 8,000 or 10,000 mm (118.1 to 393.7 in), with Z travel to match and 660 mm (26.0 in) of X. Both axes rapid at 6,000 mm/min (236 ipm).
Tooling reflects the cutting loads. The standard electric 4-way square tool post is □340 mm and takes □40 mm shanks with Ø60 mm boring bars, or □50 mm shanks as an option. An electric 8-position tool post is also offered, doubling the number of tools in the cut without a manual change. The built-in tailstock has a Ø230 mm (Ø9.1 in) quill with 300 mm (11.8 in) of travel and a Ø82.5 x 60° fixed centre.
The spindle is an A2-15 nose with a Ø155 mm (Ø6.1 in) bore, or Ø255 mm (Ø10.0 in) as an option. The control is a SIEMENS 828D. The site needs a 150 kVA supply at 380 V, 60 Hz, and the coolant tank holds 950 L (251 US gal). Floor area runs from 8,725 x 3,325 mm (343.5 x 130.9 in) on the shortest bed to 15,725 mm (619.1 in) long on the longest, with a height of 3,170 mm (124.8 in). The table gives no machine weight, so ask for it before planning the foundation.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | Ø1,600 mm (Ø63.0 in) |
| Swing Over Saddle | Ø1,000 mm (Ø39.4 in) |
| Max Turning Diameter | Ø1,600 mm (Ø63.0 in) over bed; Ø1,000 mm (Ø39.4 in) over saddle |
| Distance Between Centers | 3,000 / 4,000 / 5,000 / 6,000 / 8,000 / 10,000 mm (118.1 / 157.5 / 196.9 / 236.2 / 315.0 / 393.7 in) |
| Max Workpiece Weight | 15,000 kg (33,069 lb) |
| X Axis Travel | 660 mm (26.0 in) |
| Z Axis Travel | 3,000 / 4,000 / 5,000 / 6,000 / 8,000 / 10,000 mm (118.1 / 157.5 / 196.9 / 236.2 / 315.0 / 393.7 in) |
| Spindle Bore | Ø155 mm (Ø6.1 in) / (Opt.: Ø255 mm (Ø10.0 in)) |
| Spindle Nose | A2-15 |
| Max Spindle Speed | 1 ~ 500 rpm |
| Spindle Torque | 3,172.5 kgf·m (31,112 Nm) |
| Spindle Speed Ranges | Auto 3 steps |
| Spindle Motor Power | 114 / 71 kW (152.9 / 95.2 hp) |
| Tool Post | Electric 4-way (square) tool post, □340 mm (Opt.: electric 8-position) |
| Turret Stations | 4 (8 with the optional 8-position tool post) |
| Tool Shank Size | □40 mm × Ø60 mm (Opt.: □50 mm × Ø60 mm) |
| Rapid Traverse Xz | 6,000 / 6,000 mm/min (236 / 236 ipm) |
| Tailstock | Built-in type |
| Tailstock Quill Diameter | Ø230 mm (Ø9.1 in) |
| Tailstock Center | Ø82.5 x 60° fixed centre |
| Tailstock Travel | 300 mm (11.8 in) |
| Bed Width | 1,520 mm (59.8 in) |
| Bed Length | 5,925 / 7,125 / 8,325 / 9,525 / 11,075 / 13,325 mm (233.3 / 280.5 / 327.8 / 375.0 / 436.0 / 524.6 in) |
| Bed Type | 1 bed, 4 way |
| Coolant Tank | 950 L (251 US gal) |
| Power Requirement | 150 kVA; 380 V, 60 Hz |
| Machine Dimensions | 8,725 to 15,725 x 3,325 mm floor area (343.5 to 619.1 x 130.9 in); height 3,170 mm (124.8 in) |
| CNC Control | SIEMENS 828D |
Specifications sourced from hwacheon.com — verified 2026-10-03
Strengths & Limitations
Strengths
- Workpiece capacity of 15,000 kg (33,069 lb)
- 114 / 71 kW (152.9 / 95.2 hp) and 3,172.5 kgf·m (31,112 Nm) of spindle torque
- 1,520 mm (59.8 in) wide four-way bed
- Electric tool post as standard, with an 8-position version as an option
- Takes □40 mm shanks as standard and □50 mm as an option
Limitations
- Spindle speed is limited to 500 rpm
- Standard bore is Ø155 mm (Ø6.1 in); the Ø255 mm (Ø10.0 in) bore is an option
- Four tools as standard; eight need the optional 8-position tool post
- Needs a 150 kVA supply at 380 V, 60 Hz
- No machine weight is given in the table
Best For
Frequently Asked Questions
01
Workpieces up to 15,000 kg (33,069 lb), on a 1,520 mm (59.8 in) wide four-way bed. The tailstock has a Ø230 mm (Ø9.1 in) quill, 300 mm (11.8 in) of quill travel and a Ø82.5 x 60° fixed centre.
02
The MEGA+140 swings Ø1,400 mm (Ø55.12 in) against Ø1,600 mm (Ø63.0 in), has a 45 / 37 kW (60.3 / 49.6 hp) rating with its standard control against 114 / 71 kW (152.9 / 95.2 hp), and a manual 4-way tool post. The MEGA+140 runs faster, up to 750 rpm with its Ø155 mm bore, and offers a Ø320 mm bore.
03
An electric 4-way square tool post of □340 mm is standard, holding four tools. The option is an electric 8-position tool post. Shanks are □40 mm with Ø60 mm boring bars as standard, or □50 mm with Ø60 mm boring bars as an option.
04
Both swing Ø1,600 mm. The MEGAIII-160 has more torque, 5,488 kgf·m (53,819 Nm), at 77 / 51 kW (103.26 / 68.39 hp), a 40 in chuck and centre distances from 6,000 to 12,000 mm, but runs only to 325 rpm. The MEGA-R100 has more power and a wider bed.
05
A 150 kVA supply at 380 V, 60 Hz, a floor area of 8,725 to 15,725 x 3,325 mm (343.5 to 619.1 x 130.9 in) depending on bed, and 3,170 mm (124.8 in) of height. Machine weight is not listed in the table.
