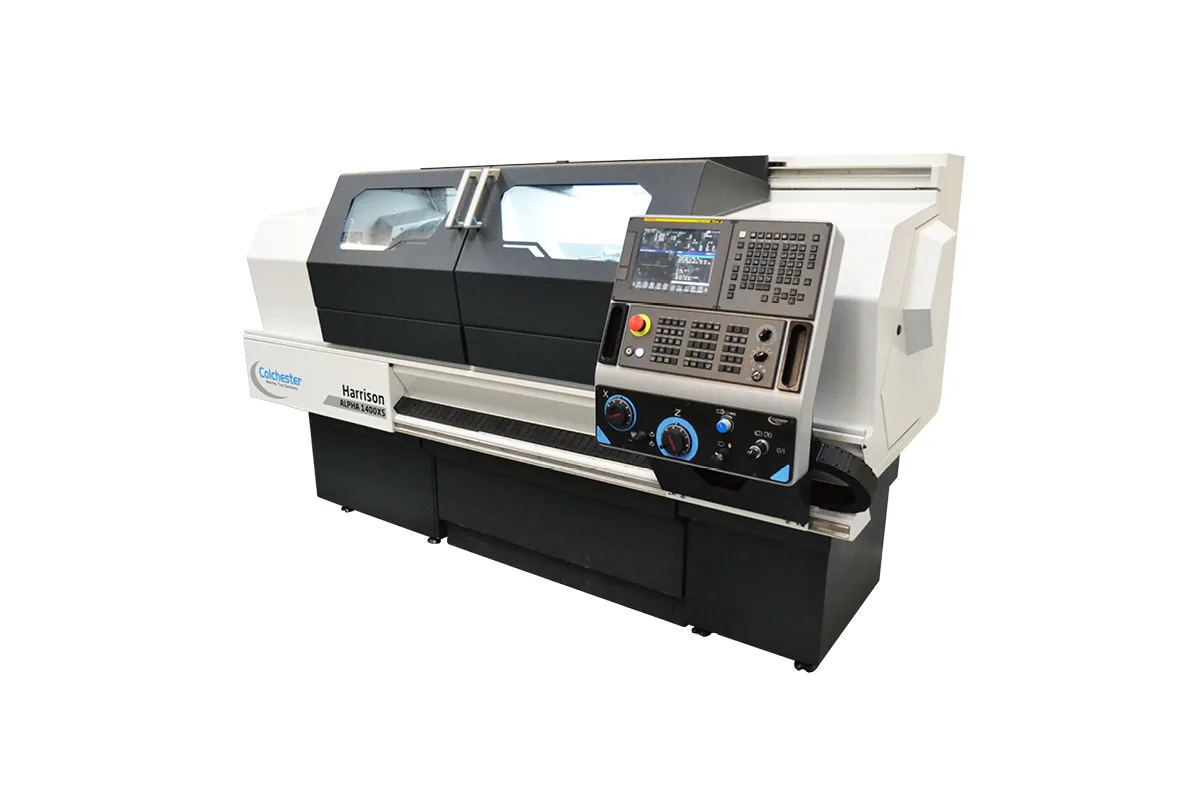

Harrison Alpha 1350XS
Image: colchester.co.uk, Colchester
Key Specifications
Spindle Power
swing over bed
distance between centres
spindle bore
chuck size
control
How much does the Harrison Alpha 1350XS cost?
Price estimate
We do not have a price for the Harrison Alpha 1350XS that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Harrison Alpha 1350XS is the entry point to the Alpha range of CNC/manual combination lathes: a flat-bed machine that can be driven by handwheels like a centre lathe or run as a full CNC. It swings 350 mm (13.8 in) over the bed, has 650 mm (25.6 in) between centres and uses an 8 in (203 mm) chuck. The spindle covers 1 - 3,500 rpm on a 7.5 kW (10.1 hp) motor.
What defines an Alpha is the control, a customised Fanuc 0i-TF Plus with a 10.4 in colour touch screen. Colchester describes five operating modes selected by a key. Manual Mode gives conventional operation with DRO-style displays. The Alpha System is a question-and-answer conversational mode for cycle-based work. Manual Guide i is Fanuc's conversational CNC with 3D simulation. AlphaLink brings in programs from a CAD/CAM system, and Full CNC Mode accepts standard G-code at the control.
In the workshop that means one lathe can handle a quick manual repair, a semi-automatic thread or taper, and a repeat batch from a stored program. The 1350XS is the short, fast member of the family. It offers one bed length only, and its top speed is the highest of the XS models, which suits small-diameter work within the 42 mm (1.7 in) spindle bore.
UK-specification machines come with a PBI Super Precision 3-jaw scroll chuck and a Dickson quick change tool post. An auto indexing tool turret is an option, as are Parat and Multifix tool posts, steady rests and hydraulic chucking. Swing in the gap is 535 mm (21.1 in).
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | 350 mm (13.8 in) |
| Distance Between Centres | 650 mm (25.6 in) |
| Spindle Bore | 42 mm (1.7 in) |
| Chuck Size | 8 in (203 mm) |
| CNC Control | Fanuc 0i-TF Plus |
| C Axis Driven Tools | No |
| Spindle Nose | D1-4 (Camlock) |
| Spindle Speed Range | 1 - 3,500 rpm |
| Spindle Motor Power | 7.5 kW (10.1 hp) |
| Swing in Gap | 535 mm (21.1 in) |
| Swing Over Cross Slide | 196 mm (7.7 in) |
Specifications sourced from colchester.co.uk — verified 2026-10-04
Strengths & Limitations
Strengths
- Five operating modes, from handwheel manual turning to full G-code CNC, on one Fanuc 0i-TF Plus control
- Spindle speed range of 1 - 3,500 rpm, the fastest of the Alpha XS models
- Built to DIN 8605 toolroom accuracy standards, as stated by the maker
- Gap bed gives 535 mm (21.1 in) of swing for short, large-diameter parts
- Auto indexing tool turret available as an option in place of the quick change tool post
Limitations
- Only 650 mm (25.6 in) between centres, with no longer bed offered on this model
- 42 mm (1.7 in) spindle bore limits bar and tube work
- Swing over the cross slide is 196 mm (7.7 in), which sets the real diameter limit for shaft work
- No C-axis or driven tools on the XS version
Best For
Frequently Asked Questions
01
It's a flat-bed lathe that can be operated by hand or under program control. On the Harrison Alpha 1350XS the operator chooses between Manual Mode, the conversational Alpha System, Manual Guide i, AlphaLink offline programming and Full CNC Mode. Colchester says the Alpha System can be learned in under half a day.
02
Swing over the bed is 350 mm (13.8 in), swing in the gap 535 mm (21.1 in) and swing over the cross slide 196 mm (7.7 in). Distance between centres is 650 mm (25.6 in). The spindle bore is 42 mm (1.7 in) on a D1-4 camlock nose, with an 8 in (203 mm) chuck.
03
A 7.5 kW (10.1 hp) spindle with a speed range of 1 - 3,500 rpm and a D1-4 camlock nose. The larger Harrison Alpha 1400XS has the same 7.5 kW (10.1 hp) but a lower ceiling of 2,700 rpm and a bigger D1-6 nose.
04
No. The standard tool carrier on UK-specification machines is a Dickson quick change tool post with tool holders. An auto indexing tool turret is listed under optional features, along with Parat and Multifix tool post options. The tailstock is manual.
