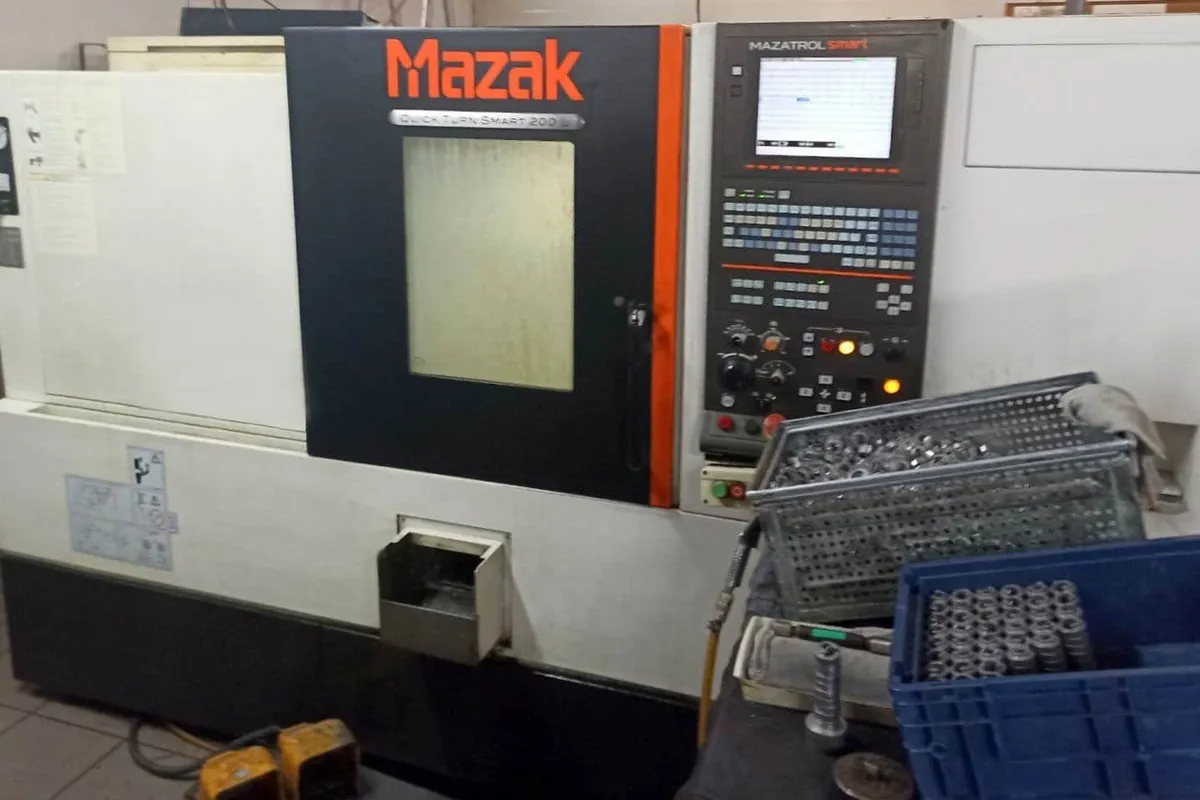

Mazak Quick Turn 200

$95,000 - $180,000 Updated 2026-03-11

Key Specifications

X Travel

190 mm (7.48 in)

Y Travel

100 mm (4.0 in) — MSY variant

Z Travel

575 mm (22.64 in)

Rapid Traverse

30 m/min (1,180 ipm)

Max Turn Length

575 mm (22.64 in)

max turning diameter

375 mm (14.75 in)

Overview

The Mazak Quick Turn 200 is one of the most widely installed CNC turning centers in North American job shops, and for good reason. It delivers a proven combination of capability, reliability, and Mazak support in a compact package. With an 8-inch chuck, 5,000 RPM main spindle rated at 25 HP, and a maximum turning diameter of 14.75 inches, the QT-200 handles the bread-and-butter work that fills most shops: shafts, fittings, bushings, and housings in steel, aluminum, and stainless steel.

The work envelope provides 190 mm (7.48 in) of X-axis travel and 575 mm (22.64 in) of Z-axis travel, with a maximum swing of 26.5 inches over the bed. The 12-station turret accepts standard OD and ID tooling, and the machine comes in multiple configurations: base QT-200, QT-200M with live tooling and C-axis, QT-200MY with Y-axis, and QT-200MSY with sub spindle and Y-axis. Rapid traverse of 30 m/min (1,180 IPM) keeps positioning times short. Bar capacity is 66 mm (2.6 inches).

The Quick Turn 200 is controlled by the Mazatrol SmoothG CNC on current models (older models use Mazatrol Matrix or Fusion 640T). The Mazatrol conversational programming system remains one of the fastest ways to get a turning program from print to first part. New QT-200 machines typically price between $95,000 and $180,000 depending on configuration. The QT-200 competes with the Haas ST-20Y, Okuma GENOS L3000-e, and Hardinge Talent 51 in the workhorse mid-size lathe segment. Specs sourced from Mazak published data and dealer documentation.

Full Specifications

Parameter	Value
Max Turning Diameter	375 mm (14.75 in)
Max Turning Length	575 mm (22.64 in)
Swing Over Bed	673 mm (26.5 in)
Bar Capacity	66 mm (2.6 in)
Chuck Size	8 in
X-Axis Travel	190 mm (7.48 in)
Y-Axis Travel	100 mm (4.0 in) — MSY variant
Z-Axis Travel	575 mm (22.64 in)
Main Spindle Speed	5,000 RPM
Main Spindle Power	18.5 kW (25 hp) — 30-min rating
Main Spindle Nose	A2-6
Sub Spindle Speed	6,000 RPM (MSY variant)
Sub Spindle Power	6 kW (8 hp)
Turret Stations	12
Rapid Traverse Rate	30 m/min (1,180 ipm)
CNC Control	Mazatrol SmoothG (current); Matrix/Fusion 640T (older models)
Machine Weight	4,600 kg (10,141 lb)

Specifications sourced from mazakusa.com — verified 2026-03-28

Strengths & Limitations

Strengths

Mazatrol SmoothG conversational programming is one of the fastest ways to go from print to first part, reducing setup time for job shop work
25 HP main spindle with 5,000 RPM provides strong all-around performance for steel, stainless, aluminum, and most common materials
Multiple configuration options from basic 2-axis to full MSY (mill/sub-spindle/Y-axis) allow shops to scale capability to budget and application needs
Massive installed base means abundant used machine availability, aftermarket support, tooling options, and operator familiarity
Mazak's extensive North American dealer and service network ensures quick parts and service response across the continent

Limitations

5,000 RPM maximum spindle speed is moderate — shops doing high-speed finishing of small diameters may want higher-RPM options
22.64-inch Z-axis travel limits the machine to shorter parts — longer shafts require the Quick Turn 250 or 300 series
Base 2-axis model lacks live tooling, requiring secondary operations for milling and cross-drilling that multitasking competitors include
Mazatrol conversational programming, while powerful, uses a proprietary format that doesn't translate directly to other CNC platforms

Best For

General job shops handling a mix of turning work in steel, stainless, and aluminum up to 8-inch chuck capacity Automotive subcontractors producing shafts, hubs, bushings, and fittings in medium-to-high production volumes Shops that value fast setup and conversational programming for short-run production and prototype turning Production environments running bar-fed work up to 2.6-inch diameter with bar feeder integration Shops standardized on Mazak equipment seeking a compact turning center that integrates with existing Mazatrol programming workflows

Frequently Asked Questions

01 What does a new Mazak Quick Turn 200 cost?

New QT-200 base models start around $95,000. The M variant with live tooling runs $120,000-$140,000. The MSY with sub spindle and Y-axis reaches $160,000-$180,000. Used QT-200 machines are widely available — units from 2010-2018 trade between $35,000 and $90,000 depending on configuration and hours.

02 What is the difference between the Quick Turn 200 variants?

QT-200: base turning only. QT-200M: adds live tooling and C-axis for milling and cross-drilling. QT-200MY: adds Y-axis to the M for off-center milling operations. QT-200MSY: the fully loaded version with main spindle, sub spindle, live tooling, Y-axis, and C-axis for complete done-in-one part processing.

03 How does the Quick Turn 200 compare to the Haas ST-20Y?

The Haas ST-20Y typically costs less at comparable configurations and offers a larger 3-inch bar capacity. The Mazak counters with Mazatrol conversational programming (faster setup for short runs), slightly better build quality, and a larger dealer network. Both are excellent mid-size lathes — the choice often comes down to programming preference and existing shop standardization.

04 Is Mazatrol hard to learn?

No. Mazatrol conversational programming is designed to be intuitive — you enter part geometry and cutting parameters, and the control generates the tool paths. Most operators become productive within a few days of training. The system also accepts standard G-code programs (EIA/ISO format) for shops that prefer CAM-generated code.

05 Can the QT-200 run unattended?

Yes. The QT-200 pairs with bar feeders from LNS, Iemca, FMB, and others for unattended bar-fed production. The MSY variant with sub spindle can complete parts from bar stock without operator intervention. Many shops run QT-200 machines overnight with bar feeders and parts catchers.

06 What is the difference between the Quick Turn 200 and Quick Turn 250?

The QT-250 offers a larger 10-inch chuck, bigger spindle bore (3.0 inches vs 2.6 inches), more spindle power, and longer Z-axis travel. Choose the QT-200 for work up to 8 inches in diameter; choose the QT-250 when you regularly exceed that size or need more power for heavy roughing.
