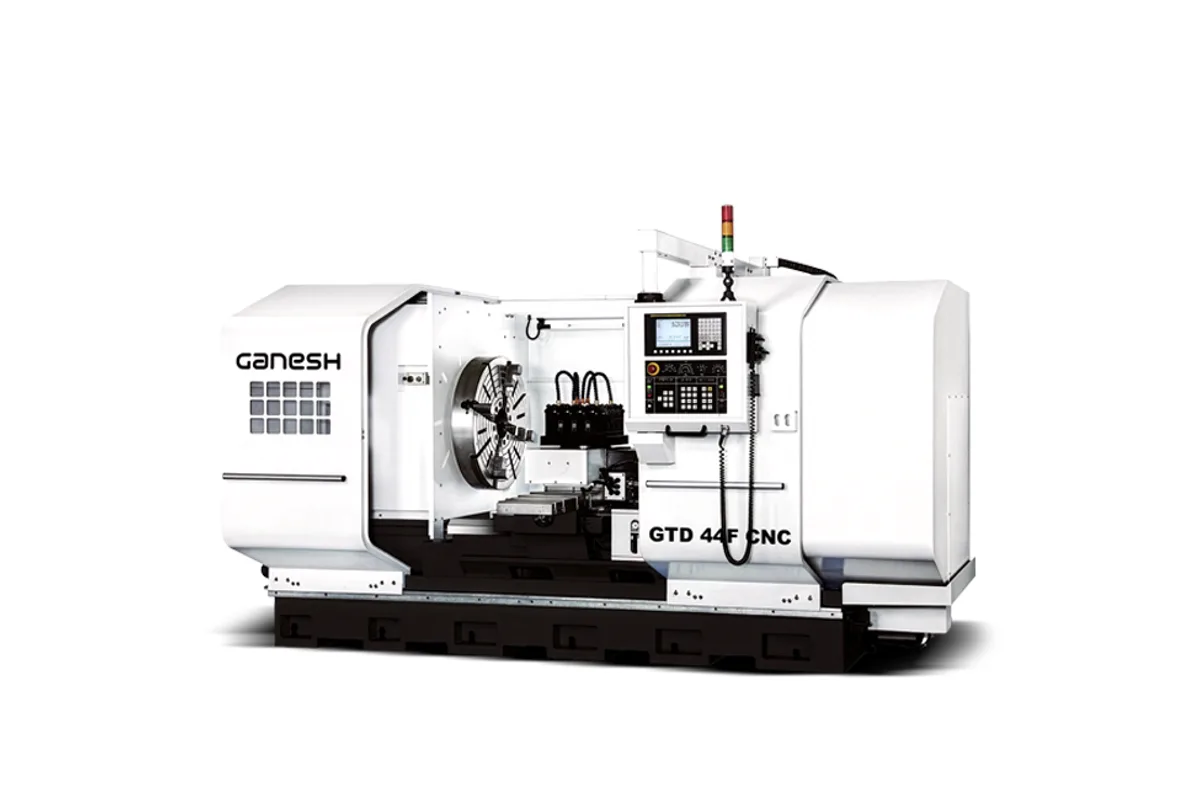

Ganesh GTD-44/65F CNC
Image: expandmachinery.com, Ganesh
Key Specifications
Rapid Traverse
Spindle Power
swing over bed
swing over cross slide
bed width
spindle speed
How much does the Ganesh GTD-44/65F CNC cost?
Price estimate
We do not have a price for the Ganesh GTD-44/65F CNC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The GTD-44/65F CNC is a facing lathe: a short-bed machine with no tailstock, made for large-diameter, short parts such as flanges, rings, wheels and discs. Swing over the bed is 44 in (1,120 mm), and Expand Machinery's title gives 44 and 65 in as the two swing sizes. Z travel is just 39.37 in (1,000 mm), and the chuck and turret chosen may reduce it.
A 30 HP (22 kW) motor drives the spindle from 6 to 500 rpm through 4 automatically selectable gear ranges of 6 - 35, 19 - 112, 70 - 350 and 226 - 500 rpm, each infinitely variable. For facing work this matters more than top speed, because constant surface speed across a large face needs both very low rpm at the rim and torque to go with it. The spindle bore is 6 in (152 mm) on an A2-11 nose, with 9, 10 and 12 in bores optional.
X-axis cross slide travel is 21.66 in (550 mm) with the standard 4-position turret, and swing over the cross slide is 23.63 in (600 mm). Tool shanks are large, 40 x 40 mm (1.57 x 1.57 in) for OD tools and 50 mm (1.97 in) for ID holders, 4 of which are included. Both axes use 5.3 HP (4 kW) servo motors and rapid at 196 in/min (5,000 mm/min).
The machine comes enclosed, with a full splash guard, a rear-discharge link-belt chip conveyor, a built-in high-capacity coolant system and a 3-light status lamp. The Fanuc control has a 10.4 in screen, and the threading functions listed cover inch and metric, left and right hand, and single or multiple starts. The 44 in swing version measures 167 x 99 x 84 in.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | 44 in (1,120 mm) |
| Swing Over Cross Slide | 23.63 in (600 mm) |
| Bed Width | 31.88 in (810 mm) |
| Spindle Motor Power | 30 HP (22 kW) |
| Spindle Speed | 6 - 500 rpm in 4 automatically selectable gear ranges |
| Spindle Gear Ranges | 6 - 35 rpm, 19 - 112 rpm, 70 - 350 rpm, 226 - 500 rpm, infinitely variable in each range |
| Spindle Bore | 6 in (152 mm); 9 in, 10 in and 12 in optional |
| Spindle Nose | A2-11 (A2-15 / A2-20 optional) |
| X Axis Travel | 21.66 in (550 mm) with standard 4-position turret |
| Z Axis Travel | 39.37 in (1,000 mm); chuck and turret type may reduce travel |
| Ballscrews | X 40 mm diameter, 10 mm pitch; Z 63 mm diameter, 10 mm pitch |
| Axis Motor Power | 5.3 HP (4 kW) X and Z |
| Rapid Traverse Rate | 196 in/min (5,000 mm/min) X and Z |
| Cutting Feed Rate | 118 in/min (3,000 mm/min) X and Z |
| Turret Stations | 4-station tool turret with any mix of ID and OD tools |
| OD Tool Size | 40 x 40 mm (1.57 x 1.57 in) |
| ID Tool Holder Bore | 50 mm (1.97 in); 4 ID toolholders included |
| Tailstock | No tailstock with this machine |
| Machine Dimensions | 167 x 99 x 84 in (L x W x H), 44 in swing capacity |
| Coolant Pump | 1.7 HP (1.275 kW) |
| Power Requirement | 220 VAC 5%, 3-phase, 60 Hz |
| CNC Control | Fanuc 0i-TF with 10.4 in screen |
Specifications sourced from expandmachinery.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 44 in (1,120 mm) swing with no tailstock in the way of large faces
- 30 HP (22 kW) spindle with 4 gear ranges from 6 - 35 rpm up to 226 - 500 rpm
- 6 in (152 mm) spindle bore, with 9, 10 and 12 in optional
- Full splash guard and rear-discharge chip conveyor included
- 40 x 40 mm (1.57 x 1.57 in) OD tool shanks for heavy cuts
Limitations
- No tailstock, so long parts cannot be supported
- Z travel is 39.37 in (1,000 mm) at most
- Maximum spindle speed is 500 rpm
- The standard tool post has 4 stations
Best For
Frequently Asked Questions
01
A facing lathe is built for short parts of large diameter that are held in the chuck alone, so the bed is short and there is nothing at the far end to obstruct the face. Expand Machinery states that there is no tailstock with this machine. Z travel is 39.37 in (1,000 mm) and swing over the bed is 44 in (1,120 mm).
02
Spindle speed is 6 - 500 rpm in 4 automatically selectable gear ranges: 6 - 35 rpm, 19 - 112 rpm, 70 - 350 rpm and 226 - 500 rpm, each infinitely variable. The spindle motor is 30 HP (22 kW).
03
X-axis cross slide travel is 21.66 in (550 mm) with the standard 4-position turret and Z-axis travel is 39.37 in (1,000 mm), which the chuck and turret type may reduce. Rapid feed is 196 in/min (5,000 mm/min) and cutting feed 118 in/min (3,000 mm/min) on both axes.
04
The feature list names an automatic 4-way toolpost, a full splash guard, a link-belt rear discharge chip conveyor, a built-in high-capacity coolant system, a large worklight, a 3-light machine condition lamp and a Fanuc control with a 10.4 in screen. Four ID toolholders with a 50 mm (1.97 in) bore are included.
05
Yes. The standard tool post is an automatic 4-way, 4-station type that takes any mix of ID and OD tools. Larger vertical turrets are offered as options, but the page gives two different sets of station counts for them, so confirm the available sizes with Expand Machinery.
