Takisawa TG-6000

Q: How much does the Takisawa TG-6000 cost?

The price estimate for the Takisawa TG-6000 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/takisawa-tg-6000#price; the request is passed to Takisawa or an authorised dealer.

Specs verified 2026-10-03 · takisawa.co.jp Updated 2026-10-03

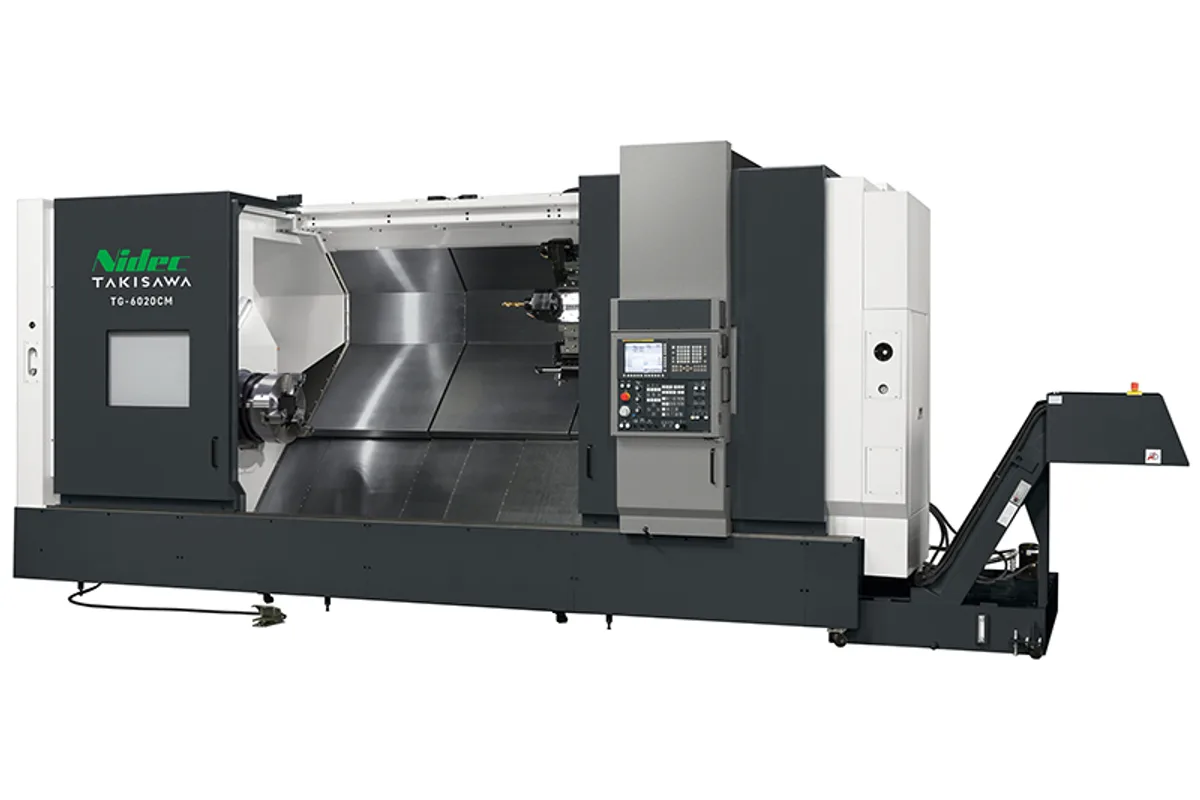

Takisawa TG-6000 series large CNC lathe (TG-6020 shown)

Image: takisawa.co.jp, Takisawa

Key Specifications

Max Spindle

1,200 rpm (option 2,000 rpm) A; 1,000 rpm B; 750 rpm C; 500 rpm D

Rapid Traverse

X 12 / Z 16 m/min (472 / 630 in/min) (TG-6010 / 6020); Z 14 m/min (551 in/min) on TG-6030 / 6040

Spindle Power

37 / 30 kW (49.6 / 40.2 hp), 30-min / continuous; option 45 / 37 kW (60.3 / 49.6 hp)

Max Turn Length

TG-6010: 1,031 mm (40.6 in); TG-6020: 2,031 mm (80.0 in); TG-6030CM: 3,031 mm (119.3 in); TG-6040CM: 4,031 mm (158.7 in)

models

TG-6010, TG-6020, TG-6030 (turning); TG-6010CM, TG-6020CM, TG-6030CM, TG-6040CM (turning & milling)

chuck size

15 to 28 in (381 to 711 mm)

How much does the Takisawa TG-6000 cost?

Price estimate

Uncertain

We do not have a price for the Takisawa TG-6000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Takisawa TG-6000 is a series of large CNC lathes for chucks from 15 to 28 in (381 to 711 mm), with a maximum turning diameter of 760 mm (29.9 in) and turning lengths from 1,031 mm (40.6 in) to 4,031 mm (158.7 in). It is sold as seven models, and choosing one means making three separate decisions: bed length, spindle bore and whether the turret drives tools.

Bed length is in the model number. The TG-6010 turns 1,031 mm, the TG-6020 2,031 mm (80.0 in), the TG-6030CM 3,031 mm (119.3 in) and the TG-6040CM 4,031 mm. The TG-6010, TG-6020 and TG-6030 are turning machines. The CM models are listed for turning and milling, and the longest bed is offered only as the TG-6040CM.

Spindle bore and speed trade against each other across four spindles labelled A to D. The A spindle has a 131 mm (5.2 in) bore and runs to 1,200 rpm, with 2,000 rpm as an option. B is 185 mm (7.3 in) at 1,000 rpm, C is 275 mm (10.8 in) at 750 rpm, and D is 375 mm (14.8 in) at 500 rpm. A shop turning pipe or hollow shafts picks the bore first and accepts the speed that comes with it. The main motor is 37 kW (49.6 hp) on the 30-min rating and 30 kW (40.2 hp) continuous, with 45 / 37 kW (60.3 / 49.6 hp) as an option.

Turning-only models take a direct-mount turret with 8, 10 or 12 stations. Maximum turning diameter is 760 mm with the 8- or 10-station turret and 730 mm (28.7 in) with 12 stations. CM models carry a 12-station rotary-tool turret, turn up to 750 mm (29.5 in), and drive tools at 3,000 rpm with 11 kW (14.8 hp) at S3 25% and 5.5 kW (7.4 hp) continuous.

These are heavy machines. Weight runs from 15,500 kg (34,171 lb) for the TG-6010 to 21,800 kg (48,060 lb) for the TG-6040CM, and the TG-6010 with chip conveyor needs 5,848 × 2,360 mm (230.2 × 92.9 in) of floor with the A or B spindle. Rapids are 12 m/min (472 in/min) in X and 16 m/min (630 in/min) in Z on the two shorter beds, with Z at 14 m/min (551 in/min) on the longer ones.

Full Specifications

Parameter	Value
Models	TG-6010, TG-6020, TG-6030 (turning); TG-6010CM, TG-6020CM, TG-6030CM, TG-6040CM (turning & milling)
Chuck Size	15 to 28 in (381 to 711 mm)
Turret Stations	8, 10 or 12 stations (direct-mount turret); 12-station rotary-tool turret on CM models
Max Turning Diameter	760 mm (29.9 in) with 8- / 10-station turret; 730 mm (28.7 in) with 12-station turret; 750 mm (29.5 in) on CM models
Max Turning Length	TG-6010: 1,031 mm (40.6 in); TG-6020: 2,031 mm (80.0 in); TG-6030CM: 3,031 mm (119.3 in); TG-6040CM: 4,031 mm (158.7 in)
Spindle Bore	131 mm (5.2 in) A; 185 mm (7.3 in) B; 275 mm (10.8 in) C; 375 mm (14.8 in) D
Max Spindle Speed	1,200 rpm (option 2,000 rpm) A; 1,000 rpm B; 750 rpm C; 500 rpm D
Spindle Motor Power	37 / 30 kW (49.6 / 40.2 hp), 30-min / continuous; option 45 / 37 kW (60.3 / 49.6 hp)
Live Tool Speed	3,000 rpm (CM models)
Live Tool Power	11 / 5.5 kW (14.8 / 7.4 hp), S3 25% / continuous (CM models)
Rapid Traverse Rate	X 12 / Z 16 m/min (472 / 630 in/min) (TG-6010 / 6020); Z 14 m/min (551 in/min) on TG-6030 / 6040
Machine Height	2,700 mm (106.3 in) (2,800 mm (110.2 in) on TG-6040CM)
Machine Dimensions	TG-6010 floor space with chip conveyor: 5,848 × 2,360 mm (230.2 × 92.9 in) (A, B spindles), 5,848 × 2,465 mm (C, D)
Machine Weight	TG-6010: 15,500 kg (34,171 lb); TG-6020: 18,000 kg (39,683 lb); TG-6030: 20,500 kg (45,194 lb); TG-6040CM: 21,800 kg (48,060 lb)

Specifications sourced from takisawa.co.jp — verified 2026-10-03

Strengths & Limitations

Strengths

Four spindle bores from 131 mm (5.2 in) to 375 mm (14.8 in), so the through-hole can be matched to pipe and hollow-shaft work
Turning lengths from 1,031 mm (40.6 in) on the TG-6010 to 4,031 mm (158.7 in) on the TG-6040CM
760 mm (29.9 in) maximum turning diameter with the 8- or 10-station turret
37 / 30 kW (49.6 / 40.2 hp) main motor, with a 45 / 37 kW (60.3 / 49.6 hp) option
CM models add a 12-station rotary-tool turret with 3,000 rpm tools and an 11 / 5.5 kW (14.8 / 7.4 hp) tool motor

Limitations

Spindle speed falls as the bore grows: 1,000 rpm on B, 750 rpm on C and 500 rpm on D
The 4,031 mm (158.7 in) bed is listed only as the TG-6040CM turning and milling model
Z rapid is 14 m/min (551 in/min) on the longer beds, slower than the 16 m/min (630 in/min) of the TG-6010 and TG-6020
A TG-6010 with chip conveyor needs 5,848 × 2,360 mm (230.2 × 92.9 in) of floor and weighs 15,500 kg (34,171 lb), so foundation and crane capacity need checking

Best For

Long shafts and rolls up to 4,031 mm (158.7 in) of turning length Pipe and hollow parts needing up to 375 mm (14.8 in) of spindle bore Large-diameter turning up to 760 mm (29.9 in) Heavy parts with drilled and milled features on the CM models

Frequently Asked Questions

01 Which models make up the TG-6000 series?

Seven. The TG-6010, TG-6020 and TG-6030 are turning machines. The TG-6010CM, TG-6020CM, TG-6030CM and TG-6040CM are turning and milling machines with a 12-station rotary-tool turret. Listed turning lengths are 1,031 mm (40.6 in) for the TG-6010, 2,031 mm (80.0 in) for the TG-6020, 3,031 mm (119.3 in) for the TG-6030CM and 4,031 mm (158.7 in) for the TG-6040CM.

02 What spindle bores and speeds are available?

Four spindles are listed. The A spindle has a 131 mm (5.2 in) bore and 1,200 rpm, with 2,000 rpm optional. The B spindle has a 185 mm (7.3 in) bore and 1,000 rpm. The C spindle has a 275 mm (10.8 in) bore and 750 rpm. The D spindle has a 375 mm (14.8 in) bore and 500 rpm. Chuck sizes across the series run from 15 to 28 in (381 to 711 mm).

03 How much power does the TG-6000 have?

The main spindle motor is rated 37 kW (49.6 hp) at 30-min and 30 kW (40.2 hp) continuous. A 45 / 37 kW (60.3 / 49.6 hp) motor is optional. On CM models the rotary tools run to 3,000 rpm from a motor rated 11 kW (14.8 hp) at S3 25% and 5.5 kW (7.4 hp) continuous.

04 How large and heavy is the machine?

Weights are 15,500 kg (34,171 lb) for the TG-6010, 18,000 kg (39,683 lb) for the TG-6020, 20,500 kg (45,194 lb) for the TG-6030 and 21,800 kg (48,060 lb) for the TG-6040CM. Height is 2,700 mm (106.3 in), or 2,800 mm (110.2 in) on the TG-6040CM. The TG-6010 with chip conveyor occupies 5,848 × 2,360 mm (230.2 × 92.9 in) with the A or B spindle and 5,848 × 2,465 mm with C or D.

05 Does turret choice affect turning diameter?

Yes. With the 8- or 10-station direct-mount turret the maximum turning diameter is 760 mm (29.9 in). The 12-station turret reduces it to 730 mm (28.7 in). CM models, which use a 12-station rotary-tool turret, are listed at 750 mm (29.5 in).
