Nicolas Correa AXIA T

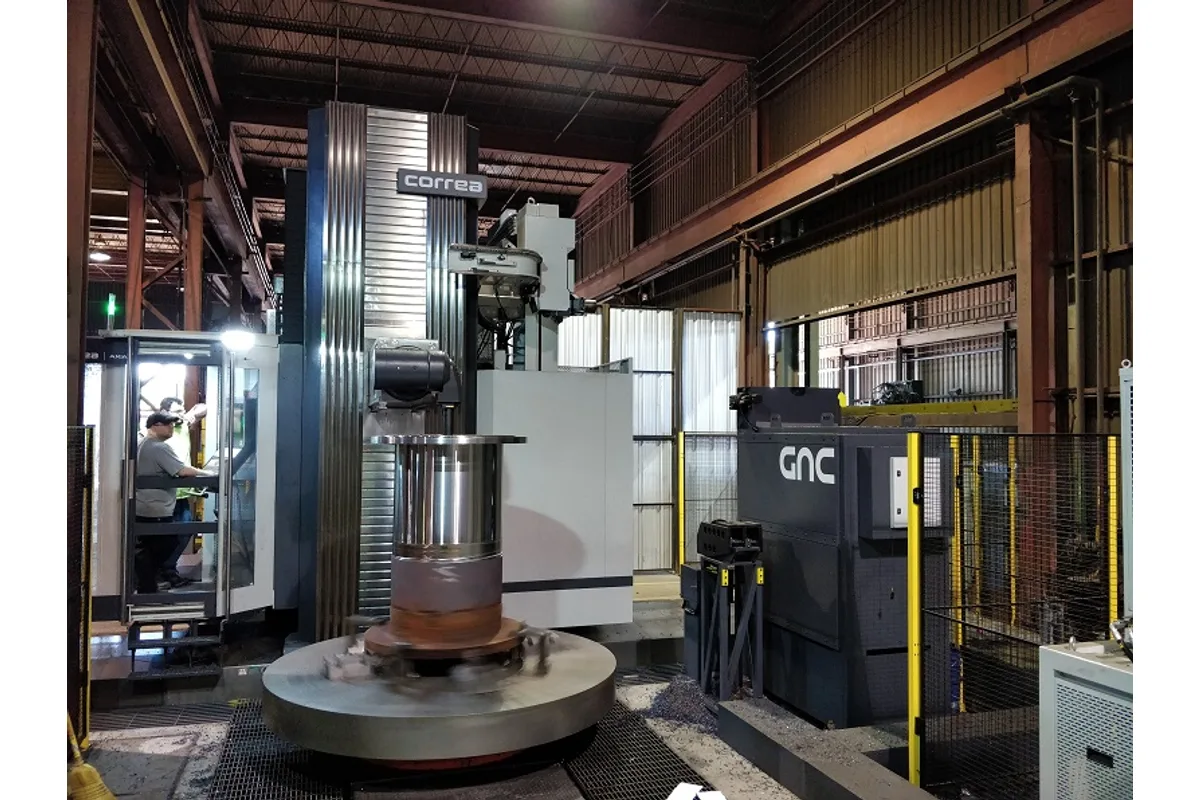

The Nicolas Correa AXIA T is the AXIA travelling column machine with a turning table added, so that a part is milled and turned in one clamping. The column keeps the AXIA travels: 4,000 - 25,000 mm in X, 1,500 / 1,750 mm in Y and 2,500 / 3,000 / 4,000 mm in Z. What the T brings is a table of 1,600 - 3,000 mm diameter that carries 6 - 60 Tm and turns at 100 - 250 rpm.

All three turning rows are ranges, and on a table of this kind they usually pull against each other: the larger diameters take the heavier parts and run slower. Ask which diameter goes with which load and which speed before sizing the machine for a ring or a housing. The tall column is the reason to pick this model for turning. With Z travel of up to 4,000 mm the ram can work down the outside of a long cylinder standing upright on the table.

Feed is listed as 30 / 40 m/min on all three axes, where the AXIA page gives 30 m/min. The taper row grows by one entry as well. Next to ISO-50 Big Plus and HSK-100 it offers Capto C8, an interface used for turning tools as much as for rotating cutters. Spindle figures are 6,000 / 10,000 rpm, 37 / 52 / 42 kW and 1,300 / 1,375 / 620 Nm.

Standard equipment covers the automatic universal head, a Heidenhain or Siemens (Operate HMI) control, linear guides and linear scales on X, Y and Z, guarding and an air-conditioned electrical cabinet. No optional equipment list is given for this variant. Tool magazine, probing and chip handling are questions for the quotation.
