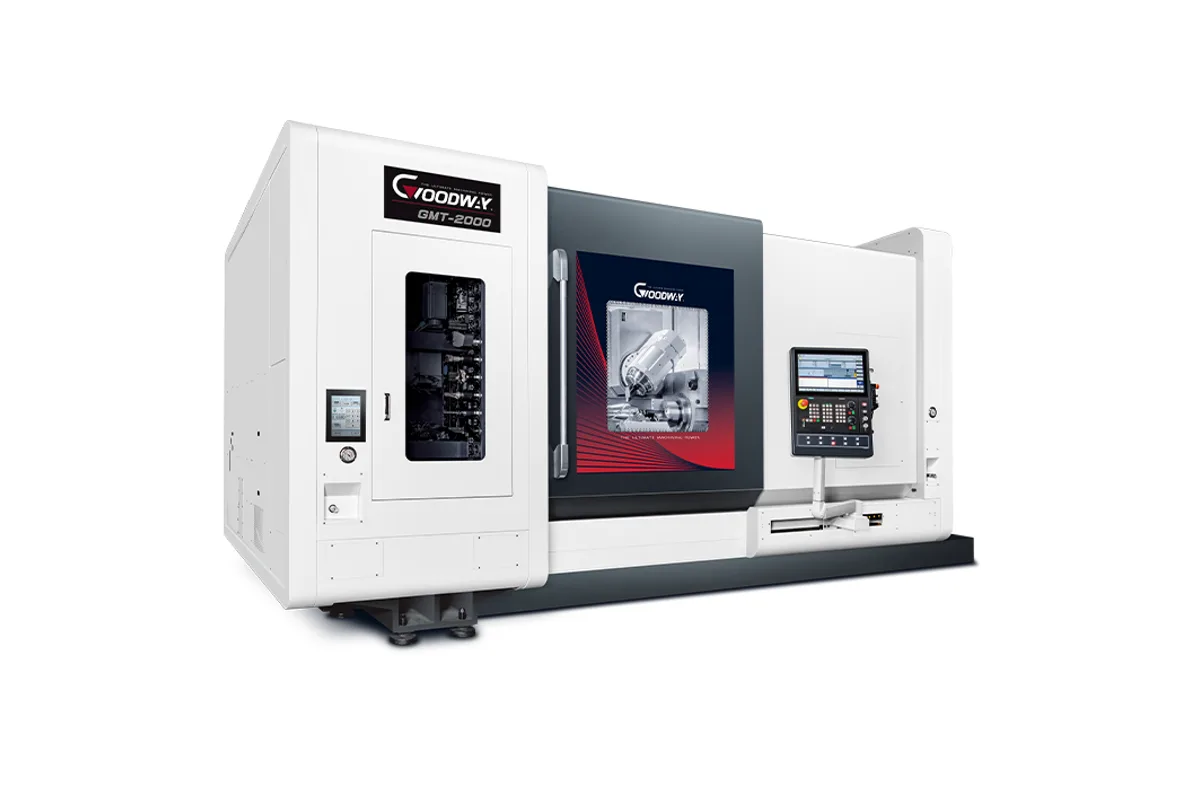

Goodway GMT-2000
Image: goodwaycnc.com, Goodway
Key Specifications
Max Spindle
Tool Capacity
Max Turn Length
max swing diameter
max turning diameter
x1 axis travel
How much does the Goodway GMT-2000 cost?
Price estimate
We do not have a price for the Goodway GMT-2000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Goodway GMT-2000 is a B-axis multi-tasking machine: a turning spindle, a 12,000 rpm milling spindle that swivels through 240°, and an automatic tool changer. In its base form, described here, it has one turning spindle and a tailstock. The GMT-2000S replaces the tailstock with a second spindle and the GMT-2000ST adds a lower turret as well.
The milling spindle is a built-in motor unit rated 20.8 kW (27.9 hp) at S6-40%, with an HSK-T63 or Capto C6 interface. It travels 615 mm (24.2 in) in X1 and ±150 mm (±5.9 in) in Y1, and its B-axis range is printed as +210° to -30°. Goodway fits a 0.001° angle encoder on the B-axis as standard and describes the machine as capable of 5 axes simultaneous machining.
Turning capacity is Ø660 mm (26.0 in), equal to the swing, because the tool comes down from above instead of from a turret beside the part. Three lengths are offered: 1,020 mm (40.2 in), 1,520 mm (59.8 in) as L1 and 2,520 mm (99.2 in) as L2. The turning spindle is ordered in one of three sizes, an 8 in chuck at 4,500 rpm, 10 in at 3,800 rpm or 12 in at 3,200 rpm, and Goodway quotes 1,450 Nm of maximum torque for its built-in motor.
Tools live in a 40-position chain magazine with an arm-type changer; 80 and 120-position magazines are optional. The tailstock on this version is a programmable servo type with an MT#5 live center, which makes the base model the one to choose for shaft work.
Full Specifications
| Parameter | Value |
|---|---|
| Max Swing Diameter | Ø660 mm (26.0 in) |
| Max Turning Diameter | Ø660 mm (26.0 in) (milling spindle) |
| Max Turning Length | 1,020 mm (40.2 in) / 1,520 mm (59.8 in) (L1) / 2,520 mm (99.2 in) (L2) |
| X1 Axis Travel | 615 mm (24.2 in) (milling spindle) |
| Z1 Axis Travel | 1,090 mm (42.9 in) / 1,590 mm (62.6 in) (L1) / 2,590 mm (102.0 in) (L2) (milling spindle) |
| Y1 Axis Travel | ±150 mm (±5.9 in) (milling spindle) |
| B Axis Range | 240° (+ 210° ~ -30°) (milling spindle) |
| Chuck Size | A : 8" / B: 10" / C : 12" |
| Max Spindle Speed | A : 4,500 rpm / B : 3,800 rpm / C : 3,200 rpm |
| Milling Spindle Speed Max | 12,000 rpm |
| Milling Spindle Taper | HSK-T63 / Capto C6 |
| Milling Spindle Power | 20.8 kW (27.9 hp) (S6-40%) |
| Tailstock Quill Center Taper | MT#5 Live center |
| Tool Capacity | 40 / 80 / 120 |
Specifications sourced from goodwaycnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 12,000 rpm built-in milling spindle rated 20.8 kW (27.9 hp) at S6-40%
- B-axis range of 240° with a 0.001° encoder as standard
- Y1 travel of ±150 mm (±5.9 in) and X1 travel of 615 mm (24.2 in)
- Servo tailstock with MT#5 live center for long parts
- Turning length up to 2,520 mm (99.2 in) on the L2 bed
Limitations
- The base model has no second spindle, so the back of a part needs another setup
- No lower turret, so all cutting is done by the single milling spindle
- The 80 and 120-tool magazines are options over the standard 40
- The thermal compensation system is optional
Best For
Frequently Asked Questions
01
The GMT-2000 has one turning spindle and a tailstock with an MT#5 live center. The GMT-2000S has a second spindle in place of the tailstock. The GMT-2000ST has the second spindle plus a 9-station lower turret.
02
It runs to 12,000 rpm on a built-in motor rated 20.8 kW (27.9 hp) at S6-40%, with an HSK-T63 or Capto C6 taper. It moves 615 mm (24.2 in) in X1 and ±150 mm (±5.9 in) in Y1, and swivels through 240° on the B-axis.
03
Three spindle versions, labelled A, B and C: an 8 in chuck at 4,500 rpm, a 10 in chuck at 3,800 rpm, or a 12 in chuck at 3,200 rpm. Goodway states that the built-in spindle delivers a maximum torque of 1,450 Nm.
04
The standard chain-type magazine holds 40 tools, and 80 or 120-tool magazines are optional. Goodway gives the maximum tool size as Ø130 mm with adjacent pockets empty and 450 mm in length.
