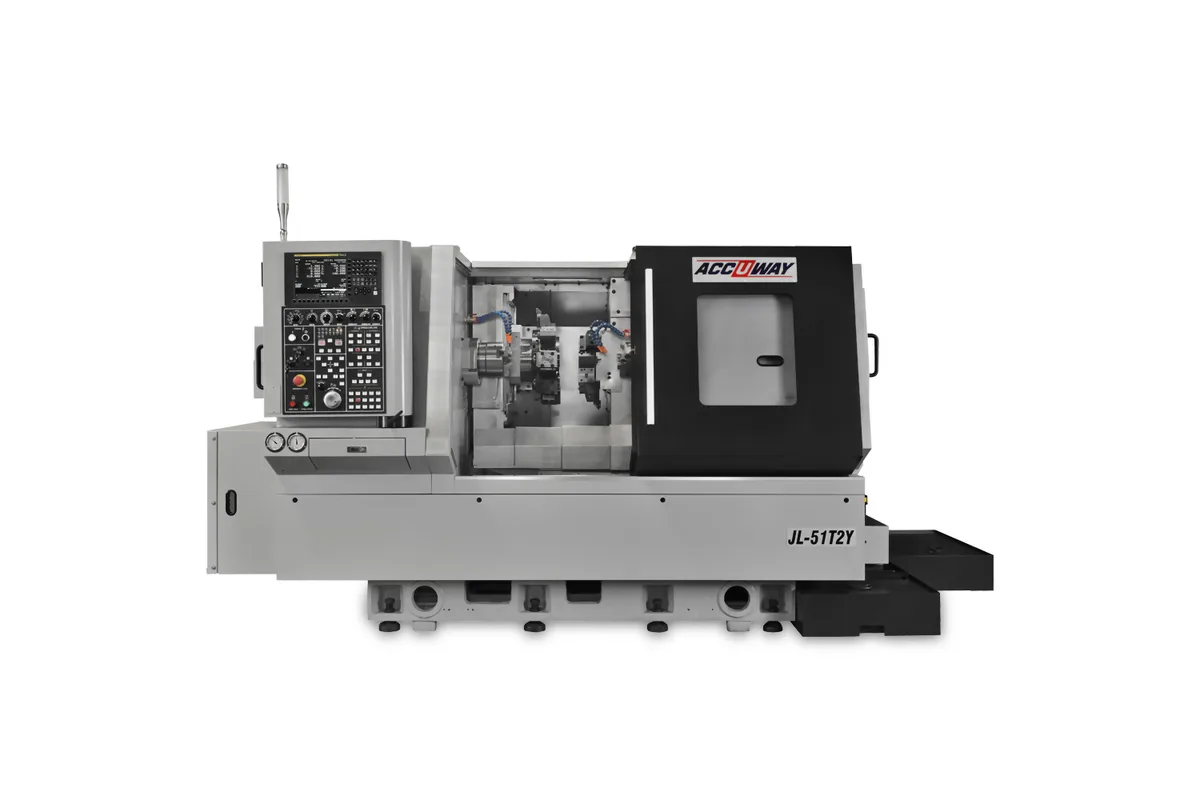

Accuway JL-51T2Y
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
max turning diameter sp1
max turning diameter sp2
How much does the Accuway JL-51T2Y cost?
Price estimate
We do not have a price for the Accuway JL-51T2Y that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Small complex parts cut from bar on two spindles are the work of the Accuway JL-51T2Y, a compact twin-spindle, twin-turret turn-mill machine with a Y axis. It is 2.9 m long and weighs 6,500 kg (14,330 lb).
The two turrets are not alike. The station row reads 12+8, the X1/X2 travel row 155/85 mm (6.1/3.3 in) and the Z1/Z2 row 220/590 mm (8.7/23.2 in). So the first turret is the main one, with the longer cross travel and the Y axis of ±40 mm (±1.6 in), and the second is a smaller unit with a short X stroke but a long Z stroke, able to follow the second spindle. The table has no separate B-axis row.
Turning diameter mirrors that split: 160 mm (6.3 in) at SP1 and 100 mm (3.9 in) at SP2, with a turning length of 170 mm (6.7 in). Spindle 1 is A2-6 with a 52 mm (2.0 in) bar capacity, 5,000 rpm and 11/15 kW (14.8/20.1 hp). Spindle 2 is A2-5 with 44 mm (1.7 in), 6,000 rpm and 7.5/11 kW (10.1/14.8 hp). The chuck row reads 6 / 8 in for both.
Rotary tools run at 6,000 rpm on a 2.2/3.7 kW (3.0/5.0 hp) motor, which is light: drilling, tapping and small end mills. The tooling row reads BMT-55N power+servo. Guideways are given as Linear + Box, and Z rapids at 30 m/min (1,181 in/min). An unloader and conveyor for finished parts, a bar feeder and a gantry loader system are optional accessories.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Max Turning Diameter Sp1 | 160 mm (6.3 in) |
| Max Turning Diameter Sp2 | 100 mm (3.9 in) |
| Max Turning Length | 170 mm (6.7 in) |
| Guideway Type | Linear + Box |
| Spindle Nose | A2-6 |
| Chuck Size | 6 / 8 in |
| Bar Capacity | 52 mm (2.0 in) |
| Max Spindle Speed | 5,000 rpm |
| Spindle Motor Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp) |
| Spindle 2 Nose | A2-5 |
| Spindle 2 Chuck Size | 6 / 8 in |
| Spindle 2 Bar Capacity | 44 mm (1.7 in) |
| Spindle 2 Speed | 6,000 rpm |
| Spindle 2 Power | Cont. / 30min: 7.5/11 kW (10.1/14.8 hp) |
| X1 X2 Axis Travel | 155/85 mm (6.1/3.3 in) |
| Z1 Z2 Axis Travel | 220/590 mm (8.7/23.2 in) |
| Y Axis Travel | ±40 mm (±1.6 in) |
| Rapid Traverse X1 X2 | 20 m/min (787 in/min) |
| Rapid Traverse Z1 Z2 | 30 m/min (1,181 in/min) |
| Rapid Traverse Y | 12 m/min (472 in/min) |
| Turret Tooling | BMT-55N power+servo |
| Turret Stations | 12+8 |
| Square Tool Shank | 25 mm (1.0 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Power | 2.2/3.7 kW (3.0/5.0 hp) |
| Machine Dimensions | L x W x H: 2.9 x 1.8 x 1.7 m (114.2 x 70.9 x 66.9 in) |
| Machine Weight | 6,500 kg (14,330 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Two spindles and two turrets, 12+8 stations, in a 2.9 m long machine
- Y-axis travel of ±40 mm (±1.6 in) at 12 m/min (472 in/min)
- Rotary tools at 6,000 rpm
- Second spindle with 7.5/11 kW (10.1/14.8 hp) and 6,000 rpm
- Z1/Z2 rapid traverse of 30 m/min (1,181 in/min)
Limitations
- Rotary tool motor of 2.2/3.7 kW (3.0/5.0 hp)
- Turning diameter of 100 mm (3.9 in) at SP2
- Second turret has 8 stations and 85 mm of X travel
- Unloader, bar feeder and rotary tool holders are optional
Best For
Frequently Asked Questions
01
Two spindles and two turrets with 12+8 stations. The X1/X2 axis travel row reads 155/85 mm (6.1/3.3 in) and the Z1/Z2 row 220/590 mm (8.7/23.2 in). The Y axis travels ±40 mm (±1.6 in).
02
Spindle 1: A2-6 nose, 52 mm (2.0 in) bar capacity, 5,000 rpm, 11/15 kW (14.8/20.1 hp). Spindle 2: A2-5 nose, 44 mm (1.7 in) bar capacity, 6,000 rpm, 7.5/11 kW (10.1/14.8 hp).
03
The UL-51T2Y has 12+12 stations, a B axis of 590 mm (23.2 in) and a second spindle of 5.5/7.5 kW (7.4/10.1 hp), and weighs 6,600 kg (14,550 lb). The JL-51T2Y has 12+8 stations, no B-axis row, a 7.5/11 kW (10.1/14.8 hp) second spindle and weighs 6,500 kg (14,330 lb).
04
The optional accessories list an unloader & conveyor for finished parts, a bar feeder interface (7 or 24 pins), a bar feeder, a loader interface, a gantry loader system and an automatic door.
