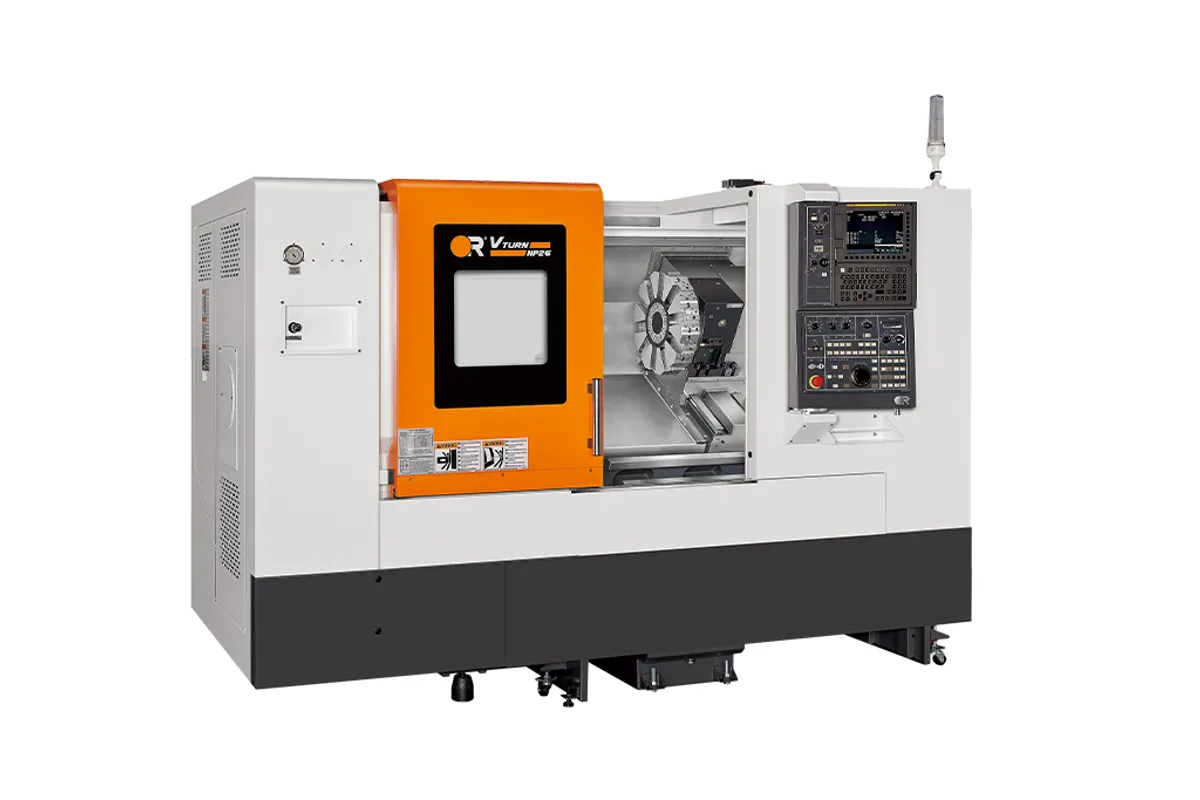

Victor Taichung Vturn-NP26
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Max Turn Length
standard turning diameter
max turning diameter
swing over carriage
spindle nose
How much does the Victor Taichung Vturn-NP26 cost?
Price estimate
We do not have a price for the Victor Taichung Vturn-NP26 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vturn-NP26 is the 10 in chuck lathe of the NP series, with an A2-8 spindle nose, 3,500 rpm, 75 mm (2.95 in) of bar capacity and 640 mm (25.19 in) of turning length. It is the newest-looking entry in the range: the maker's notes call out roller guideways, a servo BMT65 turret and a one-piece slant bed, and describe the machine as ready for unmanned operations.
Diameter capacity barely moves between the two configurations, which is unusual in this series. The 2 Axis machine turns 450 mm (17.71 in) at most and the C Axis machine 440 mm (17.32 in); standard turning diameters are 271 mm (10.66 in) and 266 mm (10.47 in). What does change is the turret, 10 tools on the 2 Axis machine and 12 with the C axis. Weight is 5,200 kg (11,464.02 lb) or 5,300 kg (11,684.48 lb).
Swing over the carriage is 540 mm (21.25 in), and the tailstock quill is M.T. #5. Shanks are □25 mm. Rapid feeds are given as 30/30 m/min.
Chip disposal can be to the rear or to the right, so the conveyor can be placed to suit a robot or a gantry. For a shop choosing inside the NP family, this is the model that gives up the least when live tooling is added.
Full Specifications
| Parameter | Value |
|---|---|
| Standard Turning Diameter | 2 Axis: 271 mm (10.66 in); C Axis: 266 mm (10.47 in) |
| Max Turning Diameter | 2 Axis: 450 mm (17.71 in); C Axis: 440 mm (17.32 in) |
| Max Turning Length | 640 mm (25.19 in) |
| Swing Over Carriage | 540 mm (21.25 in) |
| Max Spindle Speed | 3,500 rpm |
| Spindle Nose | A2-8 (10") |
| Bar Capacity | 75 mm (2.95 in) |
| Turret Tools | 2 Axis: 10; C Axis: 12 |
| Tool Shank Size | □25 mm |
| Tailstock Quill Taper | M.T. #5 |
| Machine Weight | 2 Axis: 5,200 kg (11,464.02 lb); C Axis: 5,300 kg (11,684.48 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Maximum turning diameter stays at 440 mm (17.32 in) with the C axis, against 450 mm (17.71 in) without
- 75 mm (2.95 in) bar capacity through an A2-8 spindle
- Roller guideways and a servo BMT65 turret, per the maker
- Rapid feeds of 30/30 m/min
- Rear or right chip disposal to fit an automation layout
Limitations
- The 2 Axis turret holds 10 tools; 12 come only with the C axis
- Spindle speed is limited to 3,500 rpm
- Turning length of 640 mm (25.19 in) is the only bed length listed
Best For
Frequently Asked Questions
01
10 tools on the 2 Axis machine and 12 tools on the C Axis machine, both on □25 mm shanks. Victor Taichung describes the turret as a servo BMT65 type.
02
Maximum turning diameter is 450 mm (17.71 in) for the 2 Axis machine and 440 mm (17.32 in) for the C Axis machine. Maximum turning length is 640 mm (25.19 in) and swing over the carriage is 540 mm (21.25 in).
03
An A2-8 nose with a 10 in chuck, a top speed of 3,500 rpm and 75 mm (2.95 in) of bar capacity. The tailstock quill opposite it has an M.T. #5 taper.
04
Victor Taichung describes it as ready for unmanned operations and lists a robot system among the NP series options. Chips can leave at the rear or on the right, which keeps the front of the machine clear for a loader.
