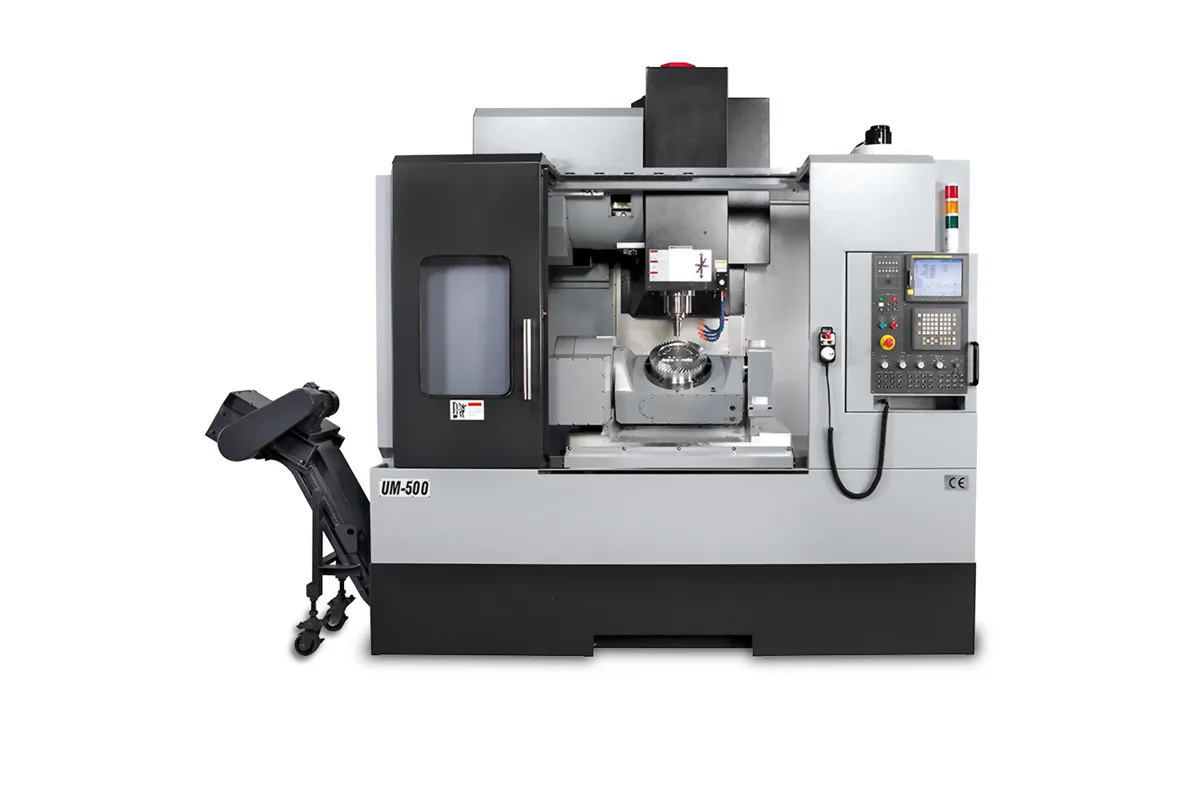

Accuway UM-500
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
control
How much does the Accuway UM-500 cost?
Price estimate
We do not have a price for the Accuway UM-500 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With a Ø500 mm (Ø19.7 in) table and 1,000 mm (39.4 in) of X travel, the Accuway UM-500 is the largest of the maker's 5-axis vertical machining centers. Y is 650 mm (25.6 in), Z is 550 mm (21.7 in), and the largest workpiece is Ø500 x 300 mm (Ø19.7 x 11.8 in).
Load capacity depends on attitude. The table takes 300 kg (661 lb) when level and 250 kg (551 lb) when tilted upright. Both smaller models in the group hold one figure for both positions, so this is the only one where a tilted setup has to be checked against a lower limit.
The rotary axes are geared for that load, not for speed. C turns at up to 16.6 rpm and the tilting A axis, which travels -120/+30 degrees, at up to 11.1 rpm. For positional 3+2 work that is of little consequence. For parts that swing constantly between faces it adds time compared with the UM-350.
The X stroke is long relative to the table, and the 4/4/7 kW feed motors are a size above those of the smaller 5-axis machines. Rapids are 30 m/min (1,181 in/min) on all three linear axes with roller guideways. The spindle is BT40 direct drive at 12,000 rpm, 15,000 rpm in brackets, on 7.5/11 kW (10.1/14.8 hp). T-slot size is 14 mm. The machine weighs 9,000 kg (19,841 lb) and stands 3.2 m high.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-M |
| Max Spindle Speed | 12,000 (15,000) rpm |
| Spindle Taper | BT40 |
| Spindle Bearing Inner Diameter | 70 mm (2.8 in) |
| Spindle Drive | Direct |
| X Axis Travel | 1,000 mm (39.4 in) |
| Y Axis Travel | 650 mm (25.6 in) |
| Z Axis Travel | 550 mm (21.7 in) |
| A Axis Range | -120/+30 degrees |
| C Axis Range | 360 degrees |
| C Axis Speed | 16.6 rpm |
| A Axis Speed | 11.1 rpm |
| Max Table Load 0 Deg | 300 kg (661 lb) |
| Max Table Load 90 Deg | 250 kg (551 lb) |
| Distance Spindle Nose to Table | 50~600 mm (2.0~23.6 in) |
| Table Size | Ø500 mm (Ø19.7 in) |
| Max Workpiece Size | Ø500 x 300 mm (Ø19.7 x 11.8 in) |
| T Slot Size | 14 mm |
| Rapid Traverse X | 30 m/min (1,181 in/min) |
| Rapid Traverse Y | 30 m/min (1,181 in/min) |
| Rapid Traverse Z | 30 m/min (1,181 in/min) |
| Cutting Feed Rate | 12 m/min (472 in/min) |
| Ball Screw Diameter Xyz | X/Y/Z: 45/45/45 mm (1.8/1.8/1.8 in) |
| Guideway Bearing Type | Roller |
| Tool Capacity | 24 (32/40) |
| Max Tool Weight | 7 kg (15 lb) |
| Max Tool Diameter (full magazine) | 75 mm (3.0 in) |
| Max Tool Diameter Without Adjacent Tools | 150 mm (5.9 in) |
| Tool Change Method | Arm type |
| Max Tool Length | 300 mm (11.8 in) |
| Spindle Motor Power | Cont. / 30min: 7.5/11 kW (10.1/14.8 hp) |
| Feed Motor Xyz | X/Y/Z: 4/4/7 kW (5.4/5.4/9.4 hp) |
| Coolant Pump Motor | 50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp) |
| Air Supply | 5.5 kg/cm² |
| Machine Dimensions | L x W x H: 3 x 2.2 x 3.2 m (118.1 x 86.6 x 126.0 in) |
| Machine Weight | 9,000 kg (19,841 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Ø500 mm (Ø19.7 in) table for workpieces up to Ø500 x 300 mm (Ø19.7 x 11.8 in)
- 300 kg (661 lb) table load with the table level and 250 kg (551 lb) with it tilted upright
- 1,000 mm (39.4 in) of X travel and 650 mm (25.6 in) of Y
- 4/4/7 kW feed motors with roller guideways
- 12,000 rpm direct-drive BT40 spindle with spindle oil cooling as standard
Limitations
- Slow rotary axes: 16.6 rpm on C and 11.1 rpm on A
- Table load drops to 250 kg (551 lb) when the table is tilted upright
- 7.5/11 kW (10.1/14.8 hp) spindle motor on a 9,000 kg (19,841 lb) machine
- Z travel is 550 mm (21.7 in), no more than the smaller UM-350
Best For
Frequently Asked Questions
01
300 kg (661 lb) with the table level and 250 kg (551 lb) with it tilted upright. The table is Ø500 mm (Ø19.7 in) with a 14 mm T-slot size, and the maximum workpiece size is Ø500 x 300 mm (Ø19.7 x 11.8 in).
02
The UM-350 has a Ø350 mm table, 200 kg (441 lb) load, 700 mm (27.6 in) of X and rotary speeds of 40 rpm and 33.3 rpm. The UM-500 has the larger table and load and 1,000 mm of X, but its rotary axes run at 16.6 rpm and 11.1 rpm. Spindle and motor are the same.
03
12,000 rpm as listed, with 15,000 rpm in brackets and spindle speed upgrading among the options. The motor is 7.5/11 kW (10.1/14.8 hp), continuous and 30 min. The taper is BT40, the drive is direct, and the bearing inner diameter is 70 mm (2.8 in).
04
The spindle nose to table distance is 50~600 mm (2.0~23.6 in) over a Z travel of 550 mm (21.7 in). Maximum tool length is 300 mm (11.8 in), so tall parts and long tools together need checking against that range.
