Ganesh GEN MILL PM320-5X

Q: How much does the Ganesh GEN MILL PM320-5X cost?

The price estimate for the Ganesh GEN MILL PM320-5X is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ganesh-gen-mill-pm320-5x#price; the request is passed to Ganesh or an authorised dealer.

Specs verified 2026-10-04 · expandmachinery.com Updated 2026-10-04

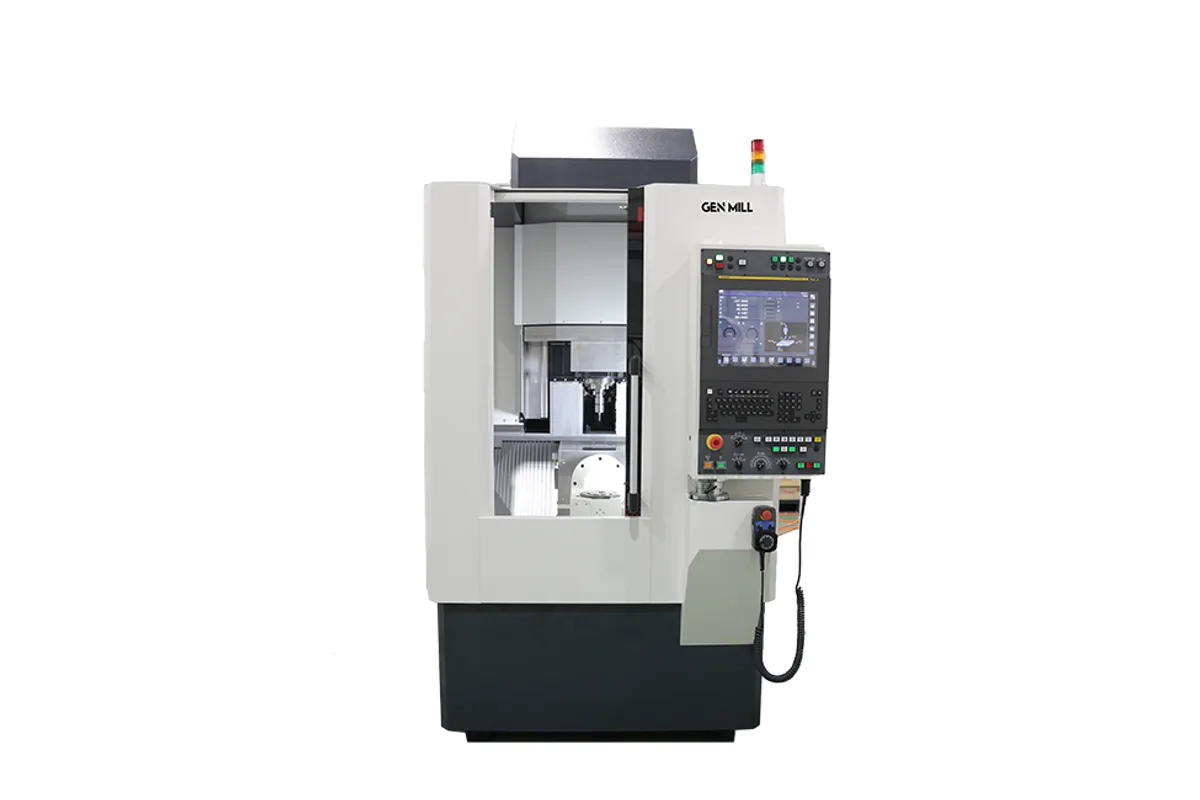

Image: expandmachinery.com, Ganesh

Key Specifications

Max Spindle

25,000 rpm standard; 40,000 rpm optional

Spindle Taper

HSK-A40

Tool Capacity

50; 64 optional (HSK-E32)

Table Size

150 mm (5.906 in) diameter rotary table

Spindle Power

15 / 7.5 kW (25,000 rpm spindle); 15 / 11.0 kW (optional 40,000 rpm spindle)

x axis travel

320 mm (12.59 in)

How much does the Ganesh GEN MILL PM320-5X cost?

Price estimate

Uncertain

We do not have a price for the Ganesh GEN MILL PM320-5X that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The GEN MILL PM320-5X is a small, very fast 5-axis machining center that can also turn. Its rotary table is 150 mm (5.906 in) in diameter, the C axis spins at up to 2,000 rpm, and Expand Machinery lists 2,000 rpm turning as standard, so round features can be turned and milled in one clamping. Travels are 320 mm (12.59 in) in X, 340 mm (13.38 in) in Y and 380 mm (14.96 in) in Z.

Everything about the spindle points to small tools. The taper is HSK-A40, standard speed is 25,000 rpm with a 15 / 7.5 kW built-in motor, and a 40,000 rpm spindle with 15 / 11.0 kW is optional. A note on the maker's page requires toolholders balanced to G2.5 above 10,000 rpm, which is ordinary practice at these speeds but worth planning for.

The trunnion tilts from -45 to +120 degrees and the B axis turns at 70 rpm. Workpiece weight is limited to 30 kg (66 lb) including the fixture, and the distance from tool nose to rotary table ranges from 87 to 467 mm (3.43 - 18.39 in). The tool changer holds 50 tools and changes in 1.9 seconds; a 64-position version for HSK-E32 is optional. Tool size is capped at 60 mm (2.362 in) in diameter and 180 mm (7.086 in) in length with HSK-A40.

Control is a Fanuc 31i-B5 with 5-axis simultaneous capability. Magnetic scales, tool and part probing and a chip conveyor are all included. The footprint is narrow, 1,200 x 2,690 x 2,500 mm (48 x 106 x 98 in), and the machine weighs 4,100 kg (9,040 lb).

Full Specifications

Parameter	Value
X Axis Travel	320 mm (12.59 in)
Y Axis Travel	340 mm (13.38 in)
Z Axis Travel	380 mm (14.96 in)
Table Size	150 mm (5.906 in) diameter rotary table
B Axis Range	-45 / +120 degrees tilt
C Axis Speed	2,000 rpm
B Axis Speed	70 rpm
Max Table Load	30 kg (66 lb), including fixture
Distance Spindle Nose to Table	87 - 467 mm (3.43 - 18.39 in)
Spindle Taper	HSK-A40
Max Spindle Speed	25,000 rpm standard; 40,000 rpm optional
Spindle Motor Power	15 / 7.5 kW (25,000 rpm spindle); 15 / 11.0 kW (optional 40,000 rpm spindle)
Tool Capacity	50; 64 optional (HSK-E32)
Tool Change Time	1.9 seconds tool-to-tool
Max Tool Diameter (full magazine)	60 mm (2.362 in) HSK-A40; 35 mm (1.378 in) HSK-E32
Max Tool Length	180 mm (7.086 in) HSK-A40; 140 mm (5.512 in) HSK-E32
Coolant Tank Capacity	100 liters (26 gallons)
Chip Conveyor Length	1,080 mm (42.51 in)
Power Requirement	220 VAC ±5%, 60 Hz, 31 kVA
Machine Dimensions	1,200 x 2,690 x 2,500 mm (48 x 106 x 98 in) W x D x H
Machine Weight	4,100 kg (9,040 lb)
CNC Control	Fanuc 31i-B5

Specifications sourced from expandmachinery.com — verified 2026-10-04

Strengths & Limitations

Strengths

25,000 rpm built-in HSK-A40 spindle, with 40,000 rpm optional
2,000 rpm C axis allows turning on the rotary table
50-tool changer with a 1.9 seconds tool-to-tool time
Magnetic scales, tool and part probing and chip conveyor included
Fanuc 31i-B5 5-axis simultaneous control

Limitations

Workpiece weight limit of 30 kg (66 lb), including the fixture
Table diameter is 150 mm (5.906 in)
HSK-A40 tools are limited to 60 mm (2.362 in) in diameter and 180 mm (7.086 in) in length
Balanced G2.5 toolholders are required above 10,000 rpm

Best For

Small 5-axis parts within a 30 kg (66 lb) limit Parts combining turned diameters with milled features in one clamping Fine-detail milling with small cutters at 25,000 rpm Electrodes and small mold inserts

Frequently Asked Questions

01 Can the GEN MILL PM320-5X turn as well as mill?

Yes. Expand Machinery calls it a 5-axis precision VMC with turning and lists 2,000 rpm turning as standard. The C axis of the rotary table reaches 2,000 rpm, so the workpiece can be spun against a stationary tool. The table is 150 mm (5.906 in) in diameter and the workpiece limit is 30 kg (66 lb) including the fixture.

02 What spindle options are there?

The standard spindle is a 25,000 rpm built-in unit rated 15 / 7.5 kW with an HSK-A40 taper. A 40,000 rpm spindle rated 15 / 11.0 kW is optional. The maker requires balanced toolholders with a G2.5 rating for spindle speeds above 10,000 rpm.

03 How many tools does it hold?

50 tools as standard, with random access and a 1.9 seconds tool-to-tool change. A 64-position magazine for HSK-E32 is optional. Maximum tool size is 60 mm (2.362 in) diameter and 180 mm (7.086 in) length for HSK-A40, or 35 mm (1.378 in) and 140 mm (5.512 in) for HSK-E32.

04 What is the range of the rotary axes?

The tilt axis moves from -45 to +120 degrees and the B axis turns at up to 70 rpm. The C axis rotates at up to 2,000 rpm. Distance from the tool nose to the rotary table is 87 - 467 mm (3.43 - 18.39 in).

05 What is included with the machine?

The feature list names magnetic scales, tool and part probing, a chip conveyor and the Fanuc 31i-B5 control. The chip conveyor is 1,080 mm (42.51 in) long, the coolant tank holds 100 liters (26 gallons) and the supply is 220 VAC ±5%, 60 Hz at 31 kVA.
