Accuway U-25

Q: How much does the Accuway U-25 cost?

The price estimate for the Accuway U-25 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-u-25#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

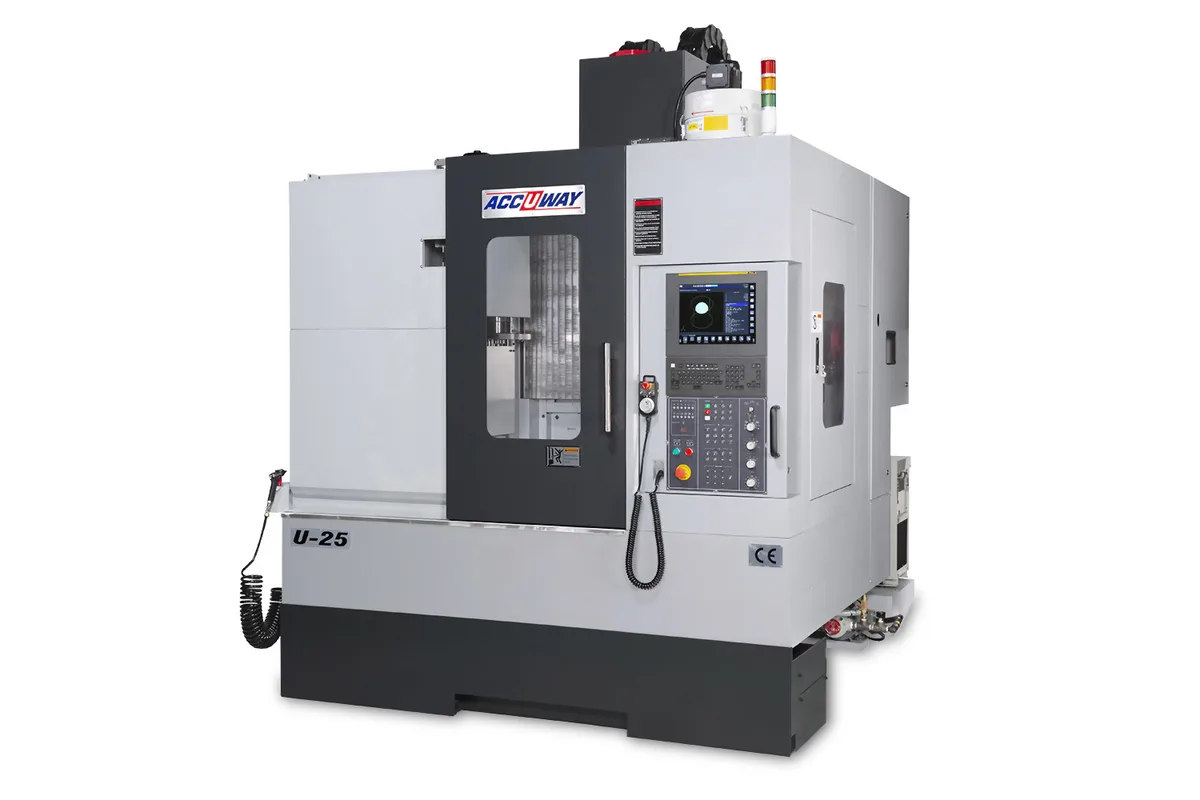

Accuway U-25 5-axis vertical machining center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

12,000 (15,000) rpm

Spindle Taper

BT40

Tool Capacity

Table Size

Ø250 mm (Ø9.8 in)

Spindle Power

Cont. / 30min: 7.5/11 kW (10.1/14.8 hp)

control

FANUC 0i-M

How much does the Accuway U-25 cost?

Price estimate

Uncertain

We do not have a price for the Accuway U-25 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Accuway's U-25 is a 5-axis vertical machining center with a Ø250 mm (Ø9.8 in) table and a BT40 direct-drive spindle. It takes a workpiece up to Ø250 x 220 mm (Ø9.8 x 8.7 in) and 60 kg (132 lb), and moves 500 mm (19.7 in) in X, 400 mm (15.7 in) in Y and 550 mm (21.7 in) in Z.

Unlike the UM-350 and UM-500, which tilt about an A axis, this machine names its tilting axis B. B-axis travel is -30/+120 degrees and the C axis rotates 360 degrees. The rotary speeds are high for the class: 40 rpm for the tilt and 62.5 rpm for the rotation, so indexing between faces takes little time.

The spindle is listed at 12,000 rpm with 15,000 rpm in brackets, and spindle speed upgrading is an option. Motor power is 7.5/11 kW (10.1/14.8 hp), continuous and 30 min. Z is long compared with the table: the spindle nose travels 100~650 mm (3.9~25.6 in) above it, room for the trunnion, a fixture and a 300 mm (11.8 in) tool.

The magazine holds 32 tools as standard, more than the 24 the larger 5-axis models start with, though the largest tool without adjacent tools is 127 mm (5.0 in). Rapids are 32 m/min (1,260 in/min) in X and Y and 30 m/min (1,181 in/min) in Z on roller guideways. The machine weighs 7,200 kg (15,873 lb), heavy for its envelope.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-M
Max Spindle Speed	12,000 (15,000) rpm
Spindle Taper	BT40
Spindle Bearing Inner Diameter	70 mm (2.8 in)
Spindle Drive	Direct
X Axis Travel	500 mm (19.7 in)
Y Axis Travel	400 mm (15.7 in)
Z Axis Travel	550 mm (21.7 in)
B Axis Range	-30/+120 degrees
C Axis Range	360 degrees
C Axis Speed	62.5 rpm
B Axis Speed	40 rpm
Max Table Load 0 Deg	60 kg (132 lb)
Max Table Load 90 Deg	60 kg (132 lb)
Distance Spindle Nose to Table	100~650 mm (3.9~25.6 in)
Table Size	Ø250 mm (Ø9.8 in)
Max Workpiece Size	Ø250 x 220 mm (Ø9.8 x 8.7 in)
T Slot Size	12 mm
Rapid Traverse X	32 m/min (1,260 in/min)
Rapid Traverse Y	32 m/min (1,260 in/min)
Rapid Traverse Z	30 m/min (1,181 in/min)
Cutting Feed Rate	12 m/min (472 in/min)
Ball Screw Diameter Xyz	X/Y/Z: 45/45/45 mm (1.8/1.8/1.8 in)
Guideway Bearing Type	Roller
Tool Capacity	32
Max Tool Weight	7 kg (15 lb)
Max Tool Diameter (full magazine)	75 mm (3.0 in)
Max Tool Diameter Without Adjacent Tools	127 mm (5.0 in)
Tool Change Method	Arm type
Max Tool Length	300 mm (11.8 in)
Spindle Motor Power	Cont. / 30min: 7.5/11 kW (10.1/14.8 hp)
Feed Motor Xyz	X/Y/Z: 3/3/4 kW (4.0/4.0/5.4 hp)
Coolant Pump Motor	50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp)
Air Supply	5.5 kg/cm²
Machine Dimensions	L x W x H: 2 x 2.5 x 3 m (78.7 x 98.4 x 118.1 in)
Machine Weight	7,200 kg (15,873 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

5-axis table with B-axis tilt of -30/+120 degrees and 360 degrees of C
Fast rotary axes: 62.5 rpm on C and 40 rpm on B
32-tool magazine as the listed capacity
Direct-drive BT40 spindle at 12,000 rpm, with 15,000 rpm in brackets
Roller guideways and 45/45/45 mm (1.8/1.8/1.8 in) ball screws

Limitations

Table load is 60 kg (132 lb) with the table level and with it tilted upright
Workpiece limited to Ø250 x 220 mm (Ø9.8 x 8.7 in)
Maximum tool diameter without adjacent tools is 127 mm (5.0 in)
Spindle motor is 7.5/11 kW (10.1/14.8 hp) with no bracketed alternative

Best For

Small 5-sided parts up to Ø250 mm and 60 kg Parts with many faces, where fast B and C indexing saves time Aluminium and finishing work at 12,000 rpm Jobs that need a 32-tool magazine

Frequently Asked Questions

01 What size part fits the Accuway U-25?

The maximum workpiece size is Ø250 x 220 mm (Ø9.8 x 8.7 in) on a Ø250 mm table, and the maximum table loading is 60 kg (132 lb) with the table level and with it tilted upright. Linear travels are 500 mm, 400 mm and 550 mm in X, Y and Z.

02 How does the U-25 differ from the UM-350?

The UM-350 has a Ø350 mm (Ø13.8 in) table, a 200 kg (441 lb) load and travels of 700 mm (27.6 in) by 550 mm (21.7 in) in X and Y, and it lists the tilt as an A axis at 33.3 rpm. The U-25 is smaller and lighter-loaded, with faster rotary axes and a 32-tool magazine.

03 What spindle does the U-25 have?

A BT40 spindle with direct drive, 12,000 rpm as listed and 15,000 rpm in brackets, on a 7.5/11 kW (10.1/14.8 hp) motor. The bearing inner diameter is 70 mm (2.8 in). A spindle oil cooling system is standard and 20 bar coolant through the spindle is optional.

04 What control and options does the U-25 offer?

The control is a FANUC 0i-M, supplied with AICC II as a standard accessory. Options include a Heidenhain linear scale, a workpiece touch probe, a contact tool setter, a 2G data server and a chain type chip conveyor with chip cart.
