Matsuura V.Plus-800
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview
The Matsuura V.Plus-800 is the larger member of the V.Plus premium VMC series, offering more X-axis travel than the V.Plus-550 while maintaining the same focus on thermal stability and precision. Where the V.Plus-550 targets small precision parts, the V.Plus-800 expands the envelope to accommodate medium-sized workpieces including mold bases, precision plates, and larger components that demand consistent accuracy across extended machining cycles.
Axis travel measures 800 x 510 x 460 mm (31.5 x 20.1 x 18.1 in) on X/Y/Z. The table is 1,000 x 500 mm (39.4 x 19.7 in) with a load capacity of 500 kg (1,102 lb). The standard BT40 spindle runs at 12,000 RPM with 15/22 kW (20/30 hp) of power. High-speed spindle options at 15,000 and 20,000 RPM are available for mold finishing and high-speed aluminum work. Rapid traverse reaches 42 m/min on all axes.
The V.Plus-800 uses the same box-way construction and active Thermal Displacement Control system found in the V.Plus-550. Multiple temperature sensors monitor the spindle, column, and base structure, applying real-time compensation to maintain positioning accuracy as the machine structure heats up during production. This is particularly valuable for long-cycle mold finishing operations where thermal drift accumulates over hours of continuous cutting.
The tool magazine holds 24 tools standard, expandable to 30 or 40 positions. Through-spindle coolant runs at 15 bar standard (70 bar optional). The machine weighs approximately 6,800 kg (14,991 lb) with a footprint of 3,000 x 2,400 mm. The G-Tech 31i control provides Matsuura's standard touchscreen interface. The V.Plus-800 competes with precision-oriented VMCs from Mori Seiki, Roku Roku, and Makino's vertical lineup, targeting shops where accuracy retention is the primary selection criterion.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 800 mm (31.5 in) |
| Y-Axis Travel | 510 mm (20.1 in) |
| Z-Axis Travel | 460 mm (18.1 in) |
| Table Size | 1,000 x 500 mm (39.4 x 19.7 in) |
| Table Load Capacity | 500 kg (1,102 lb) |
| Max Spindle Speed | 12,000 RPM (optional 15,000 / 20,000 RPM) |
| Spindle Taper | BT40 (HSK-A63 optional) |
| Spindle Motor Power | 15 / 22 kW (20 / 30 hp) |
| Spindle Torque | 150 Nm |
| Tool Capacity | 24 standard (30, 40 optional) |
| Rapid Traverse Xyz | 42 m/min (1,654 ipm) |
| Tool Change Time | 1.2 sec (tool-to-tool) |
| Through Spindle Coolant | 15 bar standard (70 bar optional) |
| Guideway Type | Box ways (hardened and ground) |
| Thermal Control | Thermal Displacement Control |
| Machine Weight | 6,800 kg (14,991 lb) |
| Floor Space Required | 3,000 x 2,400 mm |
| CNC Control | Matsuura G-Tech 31i (FANUC 31i-B5 based, touch screen) |
| Mx Series | MAM72 Series |
| Mx 330mx 330 Pc10mx 420 Pc10mx 520mx 520 Pc4mx 520tmx 850mx 850 Pc4 | MAM72-35VMAM72-42VMAM72-52VMAM72-70VMAM72-100H |
| Spindle Speedrpm | 12,000:BT40Standard| 20,000:BT40Option| 30,000:BT40Option |
| Travel Mm | 800/550/500 | (31.49/21.65/19.68) |
| Industriesdie Mold | TechnologyVertical Machining Center › |
Specifications sourced from matsuurausa.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Active Thermal Displacement Control maintains micrometer-level accuracy from cold start through extended production runs
- 800 mm X travel expands the precision envelope beyond the V.Plus-550 for medium-sized mold bases and plates
- Box-way construction on all axes provides rigidity that supports both heavy roughing and fine finishing on a single platform
- 22 kW spindle power option handles steel roughing while the 20,000 RPM option enables high-speed mold finishing
- 500 kg table load supports heavy mold bases, fixture plates, and multi-part setups
- Matsuura premium build quality and tight tolerances deliver long-term accuracy retention under continuous production
Limitations
- 42 m/min rapid traverse lags behind roller-guide competitors, adding cycle time on positioning-intensive programs
- Price premium over VX-1000 is substantial for the thermal management and precision features that not all shops require
- 24-tool standard magazine is modest for high-mix work; expansion options top out at 40 tools
- 510 mm Y travel may limit access on wider workpieces compared to some competitors offering 560-610 mm
Best For
Frequently Asked Questions
01
New V.Plus-800 pricing typically ranges from $170,000 to $280,000 depending on spindle speed option, tool magazine size, and accessories. The 20,000 RPM high-speed spindle adds a significant premium. Used machines trade between $80,000 and $170,000 depending on age and condition.
02
The VX-1000 offers more X travel (1,020 mm vs 800 mm) and a larger table at lower cost. The V.Plus-800 adds active Thermal Displacement Control, tighter assembly tolerances, and a focus on precision that the VX-1000 does not offer. Choose the VX-1000 for general production where envelope matters most; choose the V.Plus-800 for precision work where thermal stability drives quality.
03
Matsuura's Thermal Displacement Control uses temperature sensors embedded in the spindle, column, and base casting to monitor thermal changes in real-time. The FANUC control applies compensation algorithms to adjust axis positions, maintaining accuracy even as the machine heats up during cutting. This is critical for long-cycle mold finishing and tight-tolerance production where thermal drift would otherwise cause dimensional variation.
04
Yes. The box-way construction provides the rigidity for hard milling in steels up to 60 HRC using small carbide end mills. The optional 20,000 RPM spindle optimizes surface speed for small-diameter cutters in hard milling applications. The thermal stability ensures the machine maintains accuracy throughout long hard-milling finishing cycles.

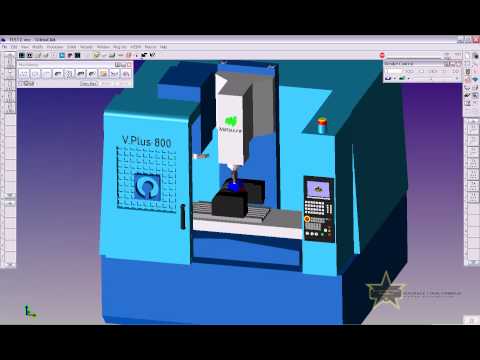

Videos
