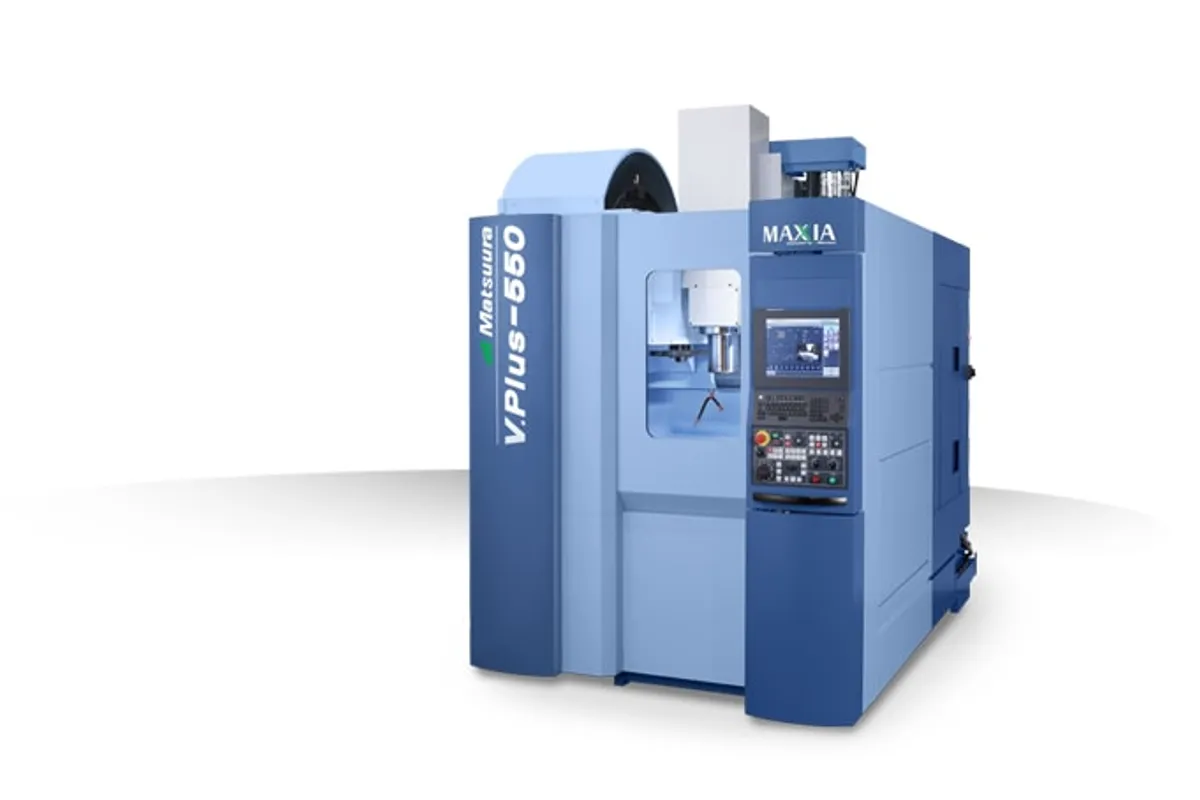

Matsuura V.Plus-550
Image: matsuurausa.com, Matsuura Machinery
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Matsuura V.Plus-550 cost?
Estimated price range
Our best estimate for a vertical machining centers (vmc) in this class — not a quote from Matsuura Machinery. Configuration moves it a long way.
Overview
The Matsuura V.Plus-550 is a 40-taper vertical machining center with 550 mm (21.6 in) of X, 410 mm (16.1 in) of Y and 560 mm (22.1 in) of Z travel. The standard spindle is a 15,000 rpm BT40 with 100 Nm of torque, the table carries 300 kg (661 lb), and rapids are 42 m/min (1,654 ipm).
The proportions are unusual. Z travel is longer than both X and Y, which leaves room for a vise on a riser, a tall fixture, or long drills and extended tools over a deep part. The trade is a modest footprint in X and Y, so plate work and multi-vise layouts are better suited to the V.Plus-800, with 800 mm (31.5 in) of X and a 1,000 x 500 mm (39.4 x 19.7 in) table.
Matsuura offers the spindle three ways in its table. The standard unit is 15,000 rpm BT40. A Power-Up BT40 version keeps the 15,000 rpm limit, and a 20,000 rpm BT40 spindle is the option for small-tool and finishing work. The magazine holds 20 tools as standard, with 30 as an option for shops running several jobs without resetting tools.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 550 mm (21.6 in) |
| Y-Axis Travel | 410 mm (16.1 in) |
| Z-Axis Travel | 560 mm (22.1 in) |
| Table Load Capacity | 300 kg (661 lb) |
| Max Spindle Speed | 15,000 rpm BT40 (standard); 15,000 rpm Power-Up BT40 (optional); 20,000 rpm BT40 (optional) |
| Spindle Taper | BT40 |
| Spindle Torque | 100 Nm |
| Tool Capacity | 20 standard (30 optional) |
| Rapid Traverse Xyz | 42 m/min (1,654 ipm) |
Specifications sourced from matsuurausa.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 560 mm (22.1 in) of Z travel, longer than the 410 mm (16.1 in) of Y, for tall parts and fixtures
- 15,000 rpm BT40 spindle with 100 Nm, with Power-Up and 20,000 rpm BT40 options
- Tool magazine expands from 20 standard to 30 as an option
- 300 kg (661 lb) table load with 42 m/min (1,654 ipm) rapids
Limitations
- 550 mm (21.6 in) of X limits multi-vise and long-part setups; the V.Plus-800 offers 800 mm (31.5 in)
- Only 20 tools as standard; the 30-tool magazine is an option
- The 20,000 rpm spindle is an option, not standard
Best For
Frequently Asked Questions
01
The standard spindle is 15,000 rpm BT40 with 100 Nm of torque. Options are a Power-Up BT40 spindle at 15,000 rpm and a 20,000 rpm BT40 spindle. All three use the BT40 taper.
02
The V.Plus-800 has 800 × 550 × 500 mm (31.5 × 21.6 × 19.7 in) of travel and a 1,000 x 500 mm table, with a 12,000 rpm BT40 spindle as standard. The V.Plus-550 is smaller in X and Y at 550 × 410 mm (21.6 × 16.1 in) but has more Z, 560 mm (22.1 in), and a 15,000 rpm standard spindle.
03
300 kg (661 lb). Count the vise or fixture, any riser and the workpiece together against that figure, especially when using the full 560 mm (22.1 in) of Z with tall workholding.
