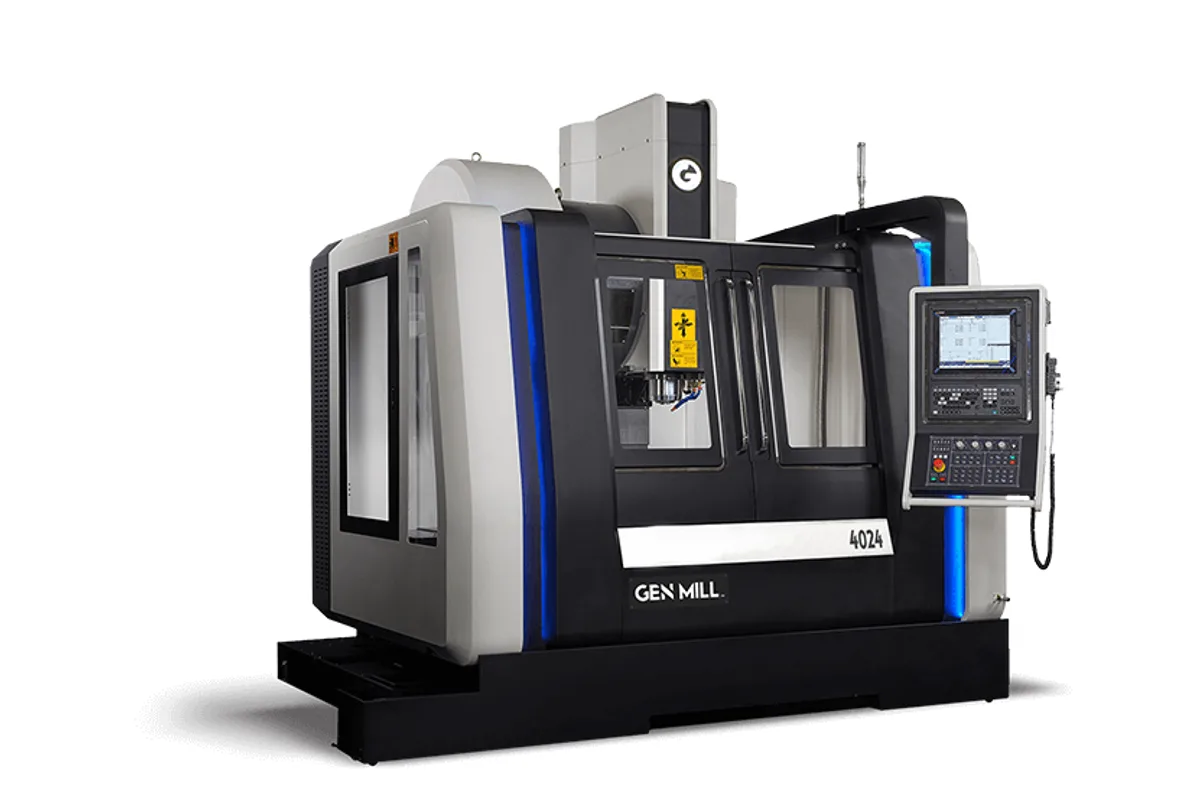

Ganesh GEN MILL 4024
Image: expandmachinery.com, Ganesh
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Ganesh GEN MILL 4024 cost?
Price estimate
We do not have a price for the Ganesh GEN MILL 4024 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 40.55 in (1,030 mm) of X travel and a spindle rated 25 HP peak, the GEN MILL 4024 is where Expand Machinery's vertical machining centers turn from light, fast machines into heavier ones. Y travel is 23.62 in (600 mm), Z travel 25.59 in (650 mm), and the machine weighs 15,708 lb (7,120 kg), well above the 11,023 lb (5,000 kg) of the GEN MILL 3120.
The extra iron shows in the ratings. Table load is 3,530 lb (1,600 kg) for full accuracy. Ballscrews are 40 mm, against 32 mm on the GEN MILL 3120, and each axis has a 5 HP (3.5 kW) drive motor. The 12,000 rpm inline direct-drive spindle delivers 90 ft-lb at 1,500 rpm, with 20 HP on the 30 min rating, enough for real roughing in steel with a CAT 40 tool. A 15,000 rpm spindle is an option.
One figure deserves a second look. The table is 45.66 x 19.68 in (1,160 x 500 mm), narrower than the 23.62 in (600 mm) Y stroke. The spindle can therefore travel past both table edges, which helps with overhanging fixtures but means wide plates need support. Z clearance is generous at 5.1 to 30.56 in (130 - 775 mm) from spindle nose to table, and the maker wires the machine for 4th and 5th axes.
Speed is not given up for the mass. Rapids remain 1,417 ipm (36 m/min) in X and Y, the 30+1 twin-arm changer swaps tools in 2.2 sec, and coolant is delivered through the tool at 300 psi (20 bar) from a 97 gallon (367 liter) tank. Accuracy is listed at ±0.0002 in over 12 in. Installation needs 33 kVA and a floor area of 115 x 82 in, with 48 in more on the left for the conveyor.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 40.55 in (1,030 mm) |
| Y Axis Travel | 23.62 in (600 mm) |
| Z Axis Travel | 25.59 in (650 mm) |
| Distance Spindle Nose to Table | 5.1 - 30.56 in (130 - 775 mm) |
| Throat | 22.83 in (580 mm) spindle center to Z-axis way covers |
| Table Size | 45.66 x 19.68 in (1,160 x 500 mm) |
| T-Slots | 5 T-slots, 0.709 in (18 mm) wide on 100 mm centers |
| Max Table Load | 3,530 lb (1,600 kg) for full accuracy |
| Spindle Motor Power | 25 HP peak, 20 HP 30 min duty rating (S1 / S2 / S3 = 11 / 15 / 18.5 kW) |
| Max Spindle Speed | 12,000 rpm (15,000 rpm optional), inline direct drive |
| Spindle Torque | 90 ft-lb at 1,500 rpm |
| Spindle Taper | CAT 40 (BT 40 optional) |
| Spindle Runout | ≤ 0.000040 in T.I.R. |
| Positioning Accuracy | ±0.0002 in / 12 in (±0.005 mm over 300 mm travel), JIS6338 |
| Repeatability | ±0.0001 in / 12 in (±0.003 mm over 300 mm travel), JIS6338 |
| Rapid Traverse Xyz | 1,417 ipm (36 m/min) X, Y; 1,260 ipm (32 m/min) Z |
| Cutting Feed Rate | 0.02 - 393 ipm (10 m/min) |
| Axis Motor Power | 5 HP (3.5 kW) X, Y, Z |
| Ballscrews | 40 mm, 12 mm pitch (X, Y, Z) |
| Tool Capacity | 30+1, twin-arm tool changer |
| Tool Change Time | 2.2 sec tool-to-tool |
| Max Tool Diameter (full magazine) | 5.90 in (150 mm); 3.15 in (80 mm) with adjacent tools |
| Max Tool Length | 11.81 in (300 mm) |
| Max Tool Weight | 15 lb (7 kg) |
| Air Requirement | 85 psi at 14 scfm |
| Coolant Tank Capacity | 97 gallons (367 liters) |
| Coolant Pressure | 300 psi (20 bar) |
| Power Requirement | 33 kVA, 220 VAC ±5%, 60 Hz |
| Machine Dimensions | 115 x 82 x 116 in (W x D x H), add 48 in on left side for conveyor |
| Machine Weight | 15,708 lb (7,120 kg) |
Specifications sourced from expandmachinery.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 25 HP peak, 20 HP 30 min rated spindle with 90 ft-lb at 1,500 rpm
- 3,530 lb (1,600 kg) table load for full accuracy
- 25.59 in (650 mm) of Z travel and up to 30.56 in of spindle-nose clearance
- 300 psi (20 bar) through-the-tool coolant and a spindle chiller
- Wired for 4th and 5th axes
Limitations
- Table width of 19.68 in (500 mm) is less than the 23.62 in (600 mm) Y travel
- Tool weight is limited to 15 lb (7 kg) and length to 11.81 in (300 mm)
- Cutting feed tops out at 393 ipm (10 m/min)
- Needs 33 kVA and weighs 15,708 lb (7,120 kg)
Best For
Frequently Asked Questions
01
The spindle motor is 25 HP peak and 20 HP on the 30 min duty rating, with S1 / S2 / S3 ratings of 11 / 15 / 18.5 kW. Torque is 90 ft-lb at 1,500 rpm. The spindle is an inline direct-drive CAT 40 unit at 12,000 rpm, with BT 40 and 15,000 rpm optional.
02
Travels are 40.55 in (1,030 mm) in X, 23.62 in (600 mm) in Y and 25.59 in (650 mm) in Z. The table is 45.66 x 19.68 in (1,160 x 500 mm) with 5 T-slots of 0.709 in (18 mm) on 100 mm centers, and the maximum table load is 3,530 lb (1,600 kg) for full accuracy.
03
Expand Machinery lists 4th and 5th axis wiring as a feature, and the travel table gives the Z clearance as spindle nose to rotary table surface. The rotary table itself is not part of the listed specification, so the unit and its drive need to be quoted.
04
Coolant capacity is 97 gallons (367 liters) and pressure is 300 psi (20 bar). The feature list names a 300 psi through-the-tool coolant system and a spindle chiller for thermal stability.
05
Listed accuracy for X, Y and Z is ±0.0002 in over 12 in (±0.005 mm over 300 mm travel) and repeatability ±0.0001 in over 12 in (±0.003 mm over 300 mm travel), both to JIS6338. Spindle runout is given as 0.000040 in or less.
