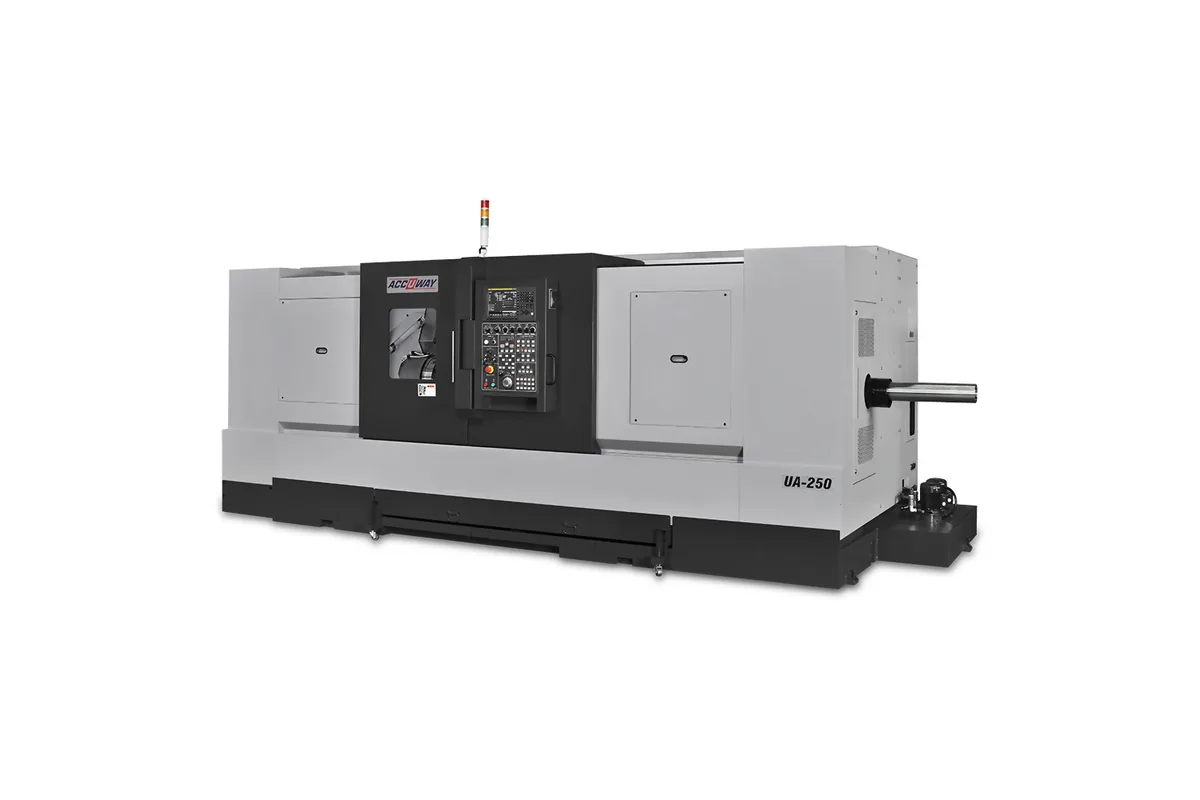

Accuway UA-250
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UA-250 cost?
Price estimate
We do not have a price for the Accuway UA-250 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Two 15 in chucks on two equal spindles: the Accuway UA-250 applies the twin-spindle, twin-turret layout to large parts. Both spindles have an A2-11 nose, a 116 mm (4.6 in) bar capacity, 2,500 rpm and a 15/18.5 kW (20.1/24.8 hp) motor.
Equal spindles matter. On most two-spindle lathes the second spindle is smaller and weaker, so the heavy cuts have to be planned onto the first side. Here either side can take the roughing, and a part can be split between the spindles purely by cycle time. Turning diameter is 360 mm (14.2 in) at SP1 and at SP2, and the turning length is 400 mm (15.7 in).
Each spindle has its own turret, 12+12 stations in all, with BMT-55N tooling and servo mechanical drive. Travels are 210 mm (8.3 in) in X1/X2 and 500 mm (19.7 in) in Z1/Z2. The B axis moves the second spindle 1,200 mm (47.2 in). Its rapid row reads 10 m/min (394 in/min) with 24 m/min (945 in/min) in brackets, and the Z1/Z2 row 20 m/min (787 in/min) with the same bracketed figure; which applies to a given machine should be settled in the quotation.
The table has no rotary tool rows and no Y axis, although Accuway's heading calls the machine a multi-axis complex turning-milling center. No accessory lists are published. The UA-250 weighs 9,000 kg (19,841 lb) and measures 5.7 x 2.2 x 2.4 m (224.4 x 86.6 x 94.5 in).
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 700 mm (27.6 in) |
| Swing Over Saddle | 600 mm (23.6 in) |
| Max Turning Diameter Sp1 | 360 mm (14.2 in) |
| Max Turning Diameter Sp2 | 360 mm (14.2 in) |
| Max Turning Length | 400 mm (15.7 in) |
| Guideway Type | Box |
| Spindle Nose | A2-11 |
| Chuck Size | 15 in |
| Bar Capacity | 116 mm (4.6 in) |
| Max Spindle Speed | 2,500 rpm |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp) |
| Spindle 2 Nose | A2-11 |
| Spindle 2 Chuck Size | 15 in |
| Spindle 2 Bar Capacity | 116 mm (4.6 in) |
| Spindle 2 Speed | 2,500 rpm |
| Spindle 2 Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp) |
| X1 X2 Axis Travel | 210 mm (8.3 in) |
| Z1 Z2 Axis Travel | 500 mm (19.7 in) |
| B Axis Travel | 1,200 mm (47.2 in) |
| Rapid Traverse X1 X2 | 20 m/min (787 in/min) |
| Rapid Traverse Z1 Z2 | 20 m/min (787 in/min), in brackets 24 m/min (945 in/min) |
| Rapid Traverse B | 10 m/min (394 in/min), in brackets 24 m/min (945 in/min) |
| Turret Tooling | BMT-55N |
| Turret Drive | Servo mechanical |
| Turret Stations | 12+12 |
| Square Tool Shank | 25 mm (1.0 in) |
| Round Tool Shank | 40 mm (1.6 in) |
| Machine Dimensions | L x W x H: 5.7 x 2.2 x 2.4 m (224.4 x 86.6 x 94.5 in) |
| Machine Weight | 9,000 kg (19,841 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Two identical A2-11 spindles with 15 in chucks
- 15/18.5 kW (20.1/24.8 hp) on both spindles
- 116 mm (4.6 in) bar capacity at each end
- Two turrets with 12+12 BMT-55N stations
- B-axis travel of 1,200 mm (47.2 in)
Limitations
- No rotary tool figures in the table despite the turning-milling heading
- Spindle speed limited to 2,500 rpm
- B-axis rapid listed as 10 m/min (394 in/min), with a second figure in brackets
- 5.7 m long and 9,000 kg (19,841 lb)
Best For
Frequently Asked Questions
01
Two of the same size. Spindle 1 and spindle 2 each have an A2-11 nose, a 15 in chuck, 116 mm (4.6 in) of bar capacity, a top speed of 2,500 rpm and a 15/18.5 kW (20.1/24.8 hp) motor.
02
X1/X2 travel is 210 mm (8.3 in), Z1/Z2 travel 500 mm (19.7 in) and B-axis travel 1,200 mm (47.2 in). X1/X2 rapid traverse is 20 m/min (787 in/min).
03
Maximum turning diameter is 360 mm (14.2 in) at SP1 and SP2, and maximum turning length 400 mm (15.7 in). Swing over bed is 700 mm (27.6 in) and swing over saddle 600 mm (23.6 in).
04
The specification table has no rotary tool speed or power rows and no Y-axis rows. The turret rows give BMT-55N tooling, servo mechanical drive and 12+12 stations for 25 mm (1.0 in) square and 40 mm (1.6 in) round shanks. Confirm driven-tool availability with Accuway.
