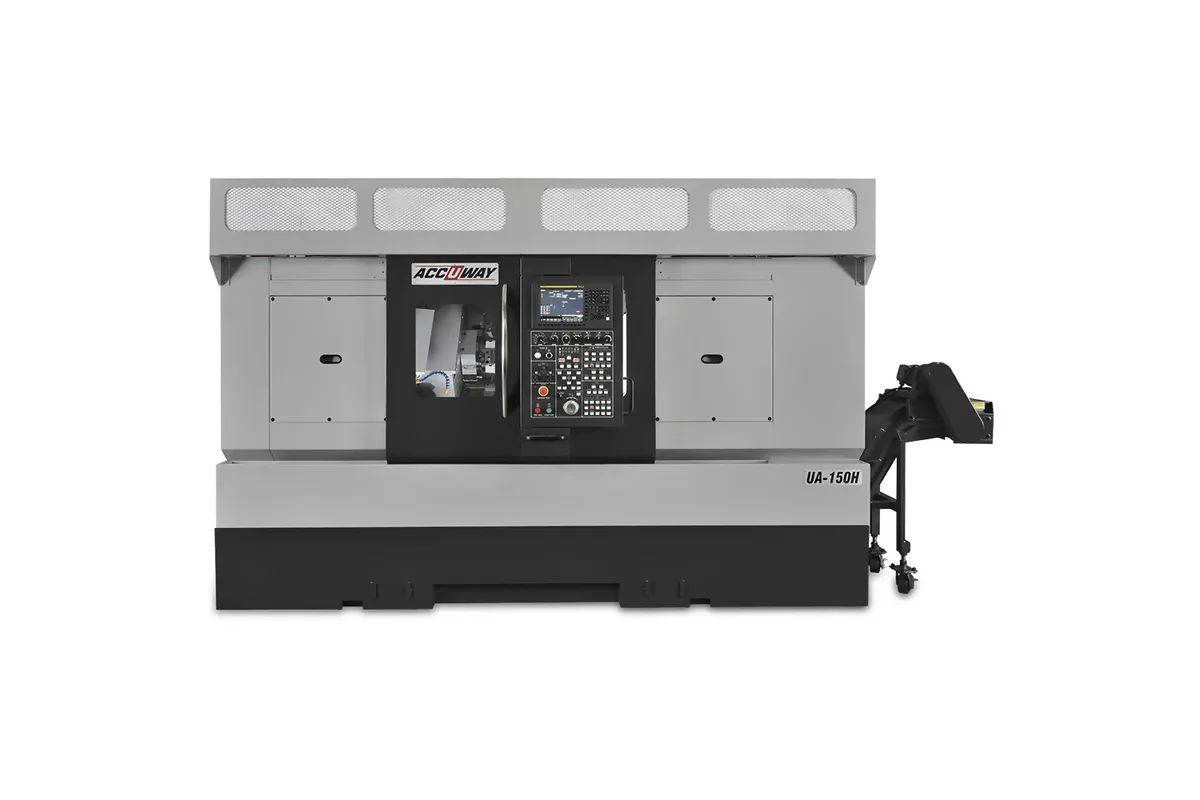

Accuway UA-150H
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UA-150H cost?
Price estimate
We do not have a price for the Accuway UA-150H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UA-150H is a twin-spindle, twin-turret turning machine for small chucked parts made in quantity. Two A2-6 spindles with 6 in chucks face each other, each served by a 12-station turret, and the table counts the tools as 12+12.
With a turret per spindle, both sides of a part are machined at the same time. The first spindle cuts operation one while the second, having taken the previous part, cuts operation two. Output per cycle is therefore one finished part, with neither spindle waiting for the other. The second spindle travels 900 mm (35.4 in) on its B axis at 20 m/min (787 in/min) to make the transfer.
The two spindles are the same size but not the same power. Both run to 4,500 rpm and pass a 52 mm (2.0 in) bar; spindle 1 has 11/15 kW (14.8/20.1 hp) and spindle 2 has 7.5/11 kW (10.1/14.8 hp). Turning diameter is 250 mm (9.8 in) at SP1 and SP2 and turning length 240 mm (9.4 in). The X1/X2 travel is 220 mm (8.7 in) and the Z1/Z2 travel 350 mm (13.8 in).
The tooling row reads BMT-55N Servo, and the table gives no rotary tool speed or power, so this page treats the UA-150H as a turning machine; ask Accuway whether driven tools are offered. At 8,000 kg (17,637 lb) on box ways it is heavily built for its part size. The control is a FANUC 0i-TF, and the maker's page lists no accessories.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-TF |
| Swing Over Bed | 600 mm (23.6 in) |
| Swing Over Saddle | 260 mm (10.2 in) |
| Max Turning Diameter Sp1 | 250 mm (9.8 in) |
| Max Turning Diameter Sp2 | 250 mm (9.8 in) |
| Max Turning Length | 240 mm (9.4 in) |
| Guideway Type | Box |
| Spindle Nose | A2-6 |
| Chuck Size | 6 in |
| Bar Capacity | 52 mm (2.0 in) |
| Max Spindle Speed | 4,500 rpm |
| Spindle Motor Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp) |
| Spindle 2 Nose | A2-6 |
| Spindle 2 Chuck Size | 6 in |
| Spindle 2 Bar Capacity | 52 mm (2.0 in) |
| Spindle 2 Speed | 4,500 rpm |
| Spindle 2 Power | Cont. / 30min: 7.5/11 kW (10.1/14.8 hp) |
| X1 X2 Axis Travel | 220 mm (8.7 in) |
| Z1 Z2 Axis Travel | 350 mm (13.8 in) |
| B Axis Travel | 900 mm (35.4 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 24 m/min (945 in/min) |
| Rapid Traverse B | 20 m/min (787 in/min) |
| Turret Tooling | BMT-55N Servo |
| Turret Drive | Servo mechanical |
| Turret Stations | 12+12 |
| Square Tool Shank | 25 mm (1.0 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Machine Dimensions | L x W x H: 3.9 x 2.1 x 1.9 m (153.5 x 82.7 x 74.8 in) |
| Machine Weight | 8,000 kg (17,637 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Two spindles and two 12-station turrets working at once
- B-axis travel of 900 mm (35.4 in) for part transfer
- Both spindles A2-6 with 52 mm (2.0 in) bar capacity at 4,500 rpm
- 8,000 kg (17,637 lb) on box guideways
- FANUC 0i-TF control across both turrets
Limitations
- No rotary tool speed or power in the table
- Turning length of 240 mm (9.4 in)
- Second spindle has 7.5/11 kW (10.1/14.8 hp), less than the first
- No accessory lists on the maker's page
Best For
Frequently Asked Questions
01
Accuway files it under two turret, two spindle lathes. It has two A2-6 spindles with 6 in chucks and 12+12 turret stations. X1/X2 travel is 220 mm (8.7 in), Z1/Z2 travel 350 mm (13.8 in) and B-axis travel 900 mm (35.4 in).
02
Spindle 1: 4,500 rpm, 11/15 kW (14.8/20.1 hp), 52 mm (2.0 in) bar capacity. Spindle 2: 4,500 rpm, 7.5/11 kW (10.1/14.8 hp), 52 mm (2.0 in) bar capacity. Both have A2-6 noses.
03
Maximum turning diameter is 250 mm (9.8 in) at each spindle and maximum turning length 240 mm (9.4 in). Swing over bed is 600 mm (23.6 in) and swing over saddle 260 mm (10.2 in).
04
The UA-250 is the larger machine of the same layout: A2-11 spindles with 15 in chucks, a 360 mm (14.2 in) turning diameter and 9,000 kg (19,841 lb). The UA-150H has A2-6 spindles with 6 in chucks, turns 250 mm (9.8 in) and weighs 8,000 kg (17,637 lb).
