Accuway UA-1500T2Y
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UA-1500T2Y cost?
Price estimate
We do not have a price for the Accuway UA-1500T2Y that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

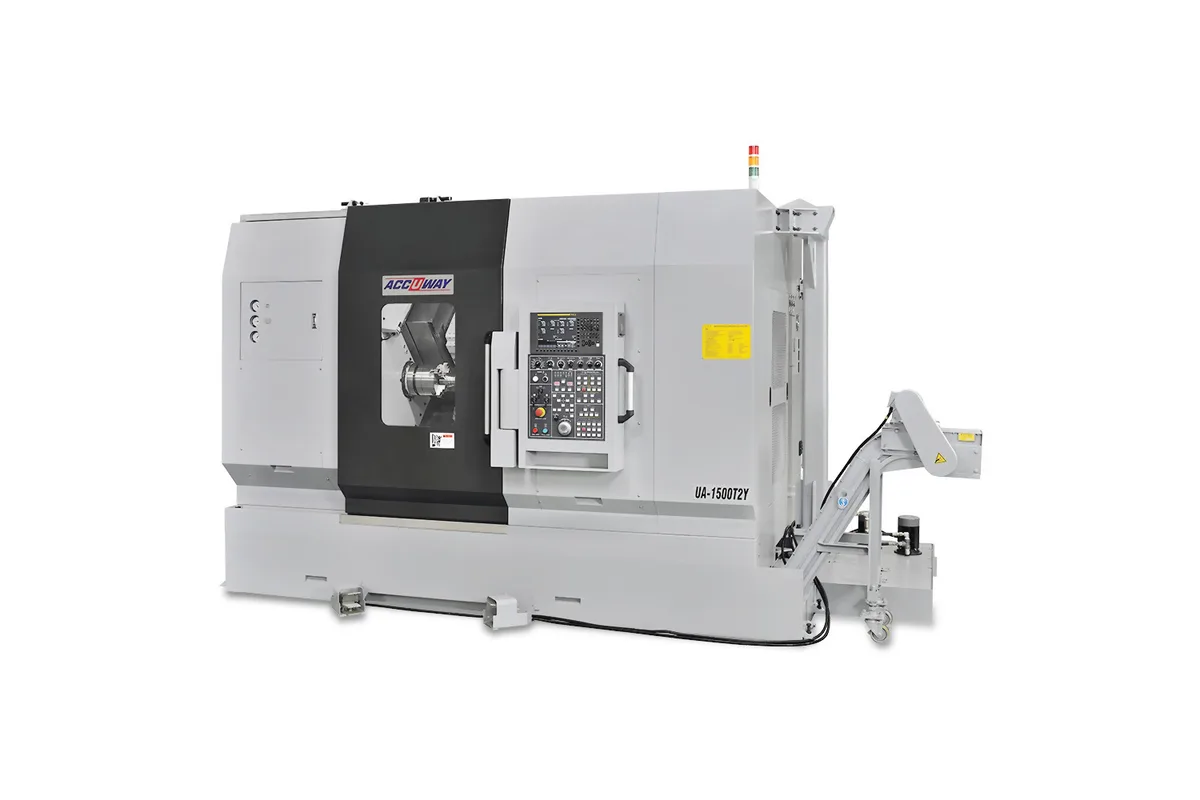

Thirty-two tool stations, two A2-6 spindles and one Y axis: the Accuway UA-1500T2Y is a production turn-mill machine for parts up to 300 mm (11.8 in) in diameter. The station row reads 16+16.
Its axes are fast. Z1/Z2 rapids at 36 m/min (1,417 in/min) and the B axis, which carries the second spindle over 700 mm (27.6 in), at 40 m/min (1,575 in/min). Guideways are listed as Linear + Box. On a machine meant for volume, those figures shorten the part of the cycle in which no chip is made: turret approach, retraction and the hand-over between spindles.
Only one Y axis is listed, with ±50 mm (±2.0 in) of travel at 10 m/min (394 in/min). Off-centre milling therefore happens at one turret; the sister model UA-1500T2Y2 gives both turrets a Y axis but turns a smaller diameter. Rotary tools run at 6,000 rpm on 3.7/5.5 kW (5.0/7.4 hp).
The spindles share nose, 52 mm (2.0 in) bar capacity and 4,500 rpm, and differ in power: 11/15 kW (14.8/20.1 hp) for the first, 7.5/11 kW (10.1/14.8 hp) for the second. Turning length is 480 mm (18.9 in), X1/X2 travel 190 mm (7.5 in) and Z1/Z2 travel 600 mm (23.6 in). The tooling row reads BMT-55N (BMT-40). The machine weighs 10,000 kg (22,046 lb) and is 4.0 x 2.5 x 2.4 m (157.5 x 98.4 x 94.5 in). No accessory lists are published for it.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 660 mm (26.0 in) |
| Swing Over Saddle | 620 mm (24.4 in) |
| Max Turning Diameter Sp1 | 300 mm (11.8 in) |
| Max Turning Diameter Sp2 | 300 mm (11.8 in) |
| Max Turning Length | 480 mm (18.9 in) |
| Guideway Type | Linear + Box |
| Spindle Nose | A2-6 |
| Chuck Size | 6 / 8 in |
| Bar Capacity | 52 mm (2.0 in) |
| Max Spindle Speed | 4,500 rpm |
| Spindle Motor Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp) |
| Spindle 2 Nose | A2-6 |
| Spindle 2 Chuck Size | 6 / 8 in |
| Spindle 2 Bar Capacity | 52 mm (2.0 in) |
| Spindle 2 Speed | 4,500 rpm |
| Spindle 2 Power | Cont. / 30min: 7.5/11 kW (10.1/14.8 hp) |
| X1 X2 Axis Travel | 190 mm (7.5 in) |
| Z1 Z2 Axis Travel | 600 mm (23.6 in) |
| Y Axis Travel | ±50 mm (±2.0 in) |
| B Axis Travel | 700 mm (27.6 in) |
| Rapid Traverse X1 X2 | 20 m/min (787 in/min) |
| Rapid Traverse Z1 Z2 | 36 m/min (1,417 in/min) |
| Rapid Traverse Y | 10 m/min (394 in/min) |
| Rapid Traverse B | 40 m/min (1,575 in/min) |
| Turret Tooling | BMT-55N (BMT-40) |
| Turret Drive | Servo mechanical |
| Turret Stations | 16+16 |
| Square Tool Shank | 20 mm (0.8 in), in brackets 25 mm (1.0 in) |
| Round Tool Shank | 25 mm (1.0 in), in brackets 32 mm (1.3 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Machine Dimensions | L x W x H: 4.0 x 2.5 x 2.4 m (157.5 x 98.4 x 94.5 in) |
| Machine Weight | 10,000 kg (22,046 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 16+16 turret stations with 6,000 rpm rotary tools
- B-axis rapid traverse of 40 m/min (1,575 in/min)
- 300 mm (11.8 in) turning diameter at both spindles
- Y-axis travel of ±50 mm (±2.0 in)
- Z1/Z2 rapid traverse of 36 m/min (1,417 in/min)
Limitations
- Only one Y axis for two turrets
- Second spindle has 7.5/11 kW (10.1/14.8 hp)
- Bar capacity of 52 mm (2.0 in) on a 10,000 kg (22,046 lb) machine
- No accessory lists on the maker's page
Best For
Frequently Asked Questions
01
Turning diameter 300 mm (11.8 in) at SP1 and SP2, turning length 480 mm (18.9 in), 16+16 stations, X1/X2 travel 190 mm (7.5 in), Z1/Z2 travel 600 mm (23.6 in), Y travel ±50 mm (±2.0 in) and B travel 700 mm (27.6 in).
02
The UA-1500T2Y2 has Y1/Y2 axes, 15+15 stations and a 200 mm (7.9 in) turning diameter, at 10,500 kg (23,148 lb). The UA-1500T2Y has one Y axis, 16+16 stations and a 300 mm (11.8 in) turning diameter, at 10,000 kg (22,046 lb).
03
Both are A2-6 with a chuck row of 6 / 8 in, 52 mm (2.0 in) of bar capacity and 4,500 rpm. Spindle 1 has 11/15 kW (14.8/20.1 hp) and spindle 2 has 7.5/11 kW (10.1/14.8 hp).
04
The tooling system row reads BMT-55N (BMT-40) and the drive servo mechanical. The square shank row gives 20 mm (0.8 in), in brackets 25 mm (1.0 in); the round shank row 25 mm (1.0 in), in brackets 32 mm (1.3 in).
