Takisawa Mill-Turn / Multi-Tasking Machines

Takisawa TS-2000

Specs verified 2026-10-03 · takisawa.co.jp Updated 2026-10-03

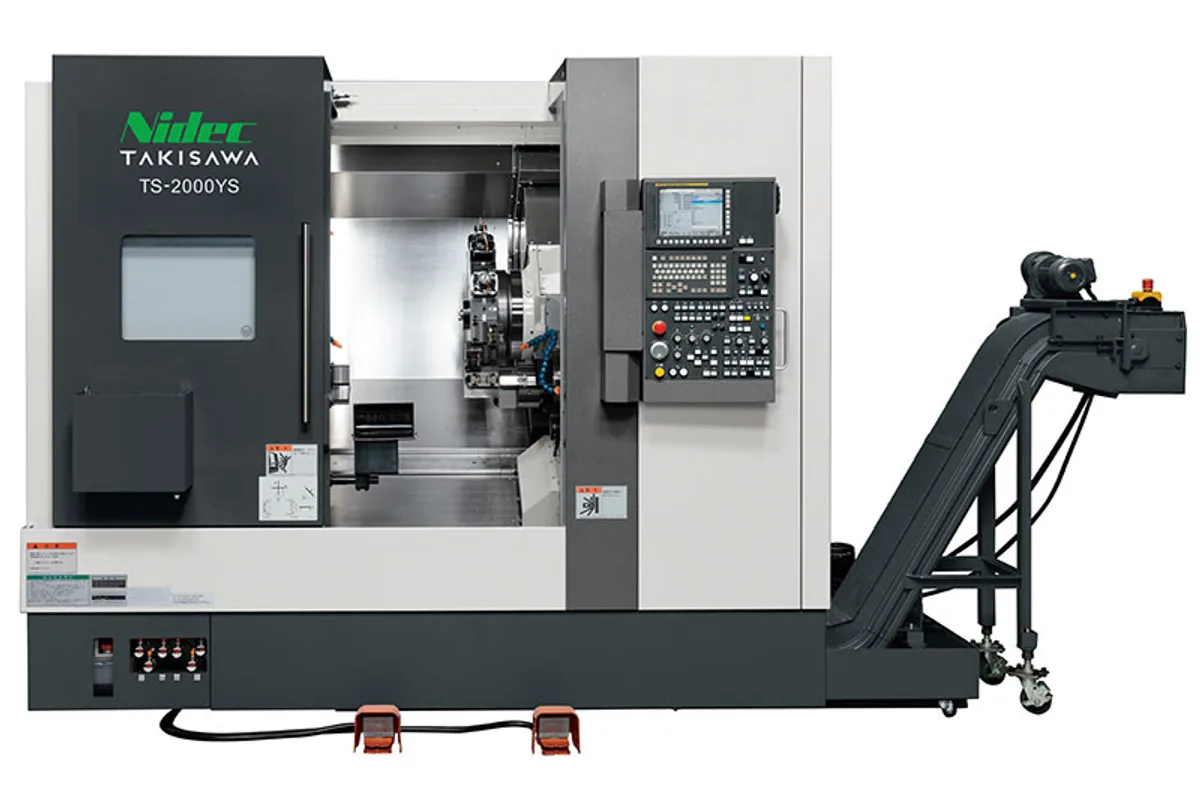

Image: takisawa.co.jp, Takisawa

Key Specifications

Max Spindle

6,000 rpm left spindle

Rapid Traverse

X 30 / Z 30 / Y 10 / A 30 m/min (1,181 / 1,181 / 394 / 1,181 in/min) (TS-2000YS; A 13 m/min on TS-2000Y)

Spindle Power

11 / 7.5 kW (14.8 / 10.1 hp) left spindle, 30-min / continuous

Max Turn Length

565 / 550 / 565 mm (22.2 / 21.7 / 22.2 in) (12- or 10- / 15- / 20-station turret)

versions

TS-2000YS (right spindle) and TS-2000Y (NC servo tailstock)

chuck size

6 + 6 in (152 + 152 mm) (TS-2000YS); 6 in (152 mm) (TS-2000Y)

How much does the Takisawa TS-2000 cost?

Price estimate

Uncertain

We do not have a price for the Takisawa TS-2000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Takisawa TS-2000 is a 6 in (152 mm) chuck turning centre with live tools and a Y axis, sold as the TS-2000YS with a right spindle or the TS-2000Y with an NC servo tailstock. Its left spindle runs to 6,000 rpm on an 11 kW (14.8 hp) motor, and the standard 12-station turret turns up to 370 mm (14.6 in) in diameter and 565 mm (22.2 in) in length.

On the TS-2000YS the two spindles are a matched pair. The right spindle is also listed at 6,000 rpm and 11 / 7.5 kW (14.8 / 10.1 hp), and it carries the same 6 in chuck. Front and back operations can therefore be split evenly, or the heavier cut can go on whichever side suits the part. On the TS-3000 and TS-4000 the left chuck grows while the right one stays at 6 in, so the TS-2000 is the balanced member of the family.

Live tools turn at 6,000 rpm with 7.5 kW (10.1 hp) at S3 25% and 3.7 kW (5.0 hp) continuous. The rapid-traverse row lists the Y axis at 10 m/min (394 in/min), a third of the 30 m/min (1,181 in/min) on X, Z and A, and the table gives no Y travel, so ask for the stroke before planning off-centre features. On the TS-2000Y the A axis is listed at 13 m/min.

Bar capacity is 51 mm (2.0 in), depending on chuck and cylinder, which with the 6,000 rpm spindle makes this a natural bar machine for small parts. The turret is an all-holder type. Besides the standard 12 stations, 10, 15 or 20 stations are optional, and the larger turrets cost diameter: 315 mm (12.4 in) with 15 stations and 292 mm (11.5 in) with 20. For bar work under 51 mm that loss is irrelevant, so the 20-station turret is the logical choice when tool count matters.

The TS-2000YS occupies 2,800 × 2,140 mm (110.2 × 84.3 in) and weighs 6,200 kg (13,668 lb); the TS-2000Y occupies 2,800 × 2,070 mm (110.2 × 81.5 in) and weighs 6,000 kg (13,228 lb). Both footprints exclude the oil pan and chip conveyor, and height is 2,300 mm (90.6 in).

Full Specifications

Parameter	Value
Versions	TS-2000YS (right spindle) and TS-2000Y (NC servo tailstock)
Chuck Size	6 + 6 in (152 + 152 mm) (TS-2000YS); 6 in (152 mm) (TS-2000Y)
Turret Stations	12 stations standard; 10, 15 or 20 stations optional (all-holder turret)
Max Turning Diameter	370 mm (14.6 in) with 12- / 10-station turret; 315 mm (12.4 in) with 15-station; 292 mm (11.5 in) with 20-station
Max Turning Length	565 / 550 / 565 mm (22.2 / 21.7 / 22.2 in) (12- or 10- / 15- / 20-station turret)
Bar Capacity	51 mm (2.0 in) (depends on chuck and cylinder)
Max Spindle Speed	6,000 rpm left spindle
Sub Spindle	Yes on TS-2000YS, right spindle 6,000 rpm, 11 / 7.5 kW (14.8 / 10.1 hp)
Spindle Motor Power	11 / 7.5 kW (14.8 / 10.1 hp) left spindle, 30-min / continuous
Live Tool Speed	6,000 rpm
Live Tool Power	7.5 / 3.7 kW (10.1 / 5.0 hp), S3 25% / continuous
Rapid Traverse Rate	X 30 / Z 30 / Y 10 / A 30 m/min (1,181 / 1,181 / 394 / 1,181 in/min) (TS-2000YS; A 13 m/min on TS-2000Y)
Machine Height	2,300 mm (90.6 in)
Machine Dimensions	TS-2000YS: 2,800 × 2,140 mm (110.2 × 84.3 in); TS-2000Y: 2,800 × 2,070 mm (110.2 × 81.5 in) (without oil pan and chip conveyor)
Machine Weight	TS-2000YS: 6,200 kg (13,668 lb); TS-2000Y: 6,000 kg (13,228 lb)

Specifications sourced from takisawa.co.jp — verified 2026-10-03

Strengths & Limitations

Strengths

Matched spindles on the TS-2000YS: both 6,000 rpm and 11 / 7.5 kW (14.8 / 10.1 hp) with 6 in (152 mm) chucks
6,000 rpm live tools with 7.5 / 3.7 kW (10.1 / 5.0 hp)
All-holder turret with 12 stations as standard and up to 20 stations as an option
370 mm (14.6 in) maximum turning diameter and 565 mm (22.2 in) turning length with the standard turret
30 m/min (1,181 in/min) rapids on X, Z and A on the TS-2000YS

Limitations

Bar capacity is 51 mm (2.0 in); the TS-3000 passes 67 mm (2.6 in) and the TS-4000 82 mm (3.2 in)
Left spindle power is 11 / 7.5 kW (14.8 / 10.1 hp), lower than the 15 / 11 kW (20.1 / 14.8 hp) of the TS-3000
Y rapid is 10 m/min (394 in/min), and the table gives no Y travel
The 15- and 20-station turrets reduce turning diameter to 315 mm (12.4 in) and 292 mm (11.5 in)

Best For

Small bar-fed parts up to 51 mm (2.0 in) at up to 6,000 rpm Parts needing equal front and back operations on the TS-2000YS Turned parts with drilled and milled features from 6,000 rpm live tools Jobs with many tools, on the optional 15- or 20-station turret

Frequently Asked Questions

01 What is the difference between the TS-2000YS and the TS-2000Y?

The TS-2000YS has a right spindle with a second 6 in (152 mm) chuck, rated 6,000 rpm and 11 / 7.5 kW (14.8 / 10.1 hp). The TS-2000Y has an NC servo tailstock instead. The YS weighs 6,200 kg (13,668 lb) and takes 2,800 × 2,140 mm (110.2 × 84.3 in); the Y weighs 6,000 kg (13,228 lb) and takes 2,800 × 2,070 mm (110.2 × 81.5 in). The A axis rapids at 30 m/min on the YS and 13 m/min on the Y.

02 How many turret stations can the TS-2000 have?

12 stations are standard, and 10, 15 or 20 stations are optional, all on an all-holder turret. Maximum turning diameter is 370 mm (14.6 in) with 12 or 10 stations, 315 mm (12.4 in) with the 15-station turret and 292 mm (11.5 in) with the 20-station turret. Turning length is 565 mm (22.2 in) in every case except the 15-station turret, which is listed at 550 mm (21.7 in).

03 How powerful are the live tools?

Live tools run to 6,000 rpm on a motor rated 7.5 kW (10.1 hp) at S3 25% and 3.7 kW (5.0 hp) continuous. The TS-3000 and TS-4000 list the same 6,000 rpm live-tool speed, so tool speed does not change with the larger models.

04 Does the TS-2000 have a Y axis?

The rapid-traverse row lists a Y axis at 10 m/min (394 in/min), alongside X, Z and A at 30 m/min (1,181 in/min) on the TS-2000YS. The table does not give the Y travel, so the stroke available for off-centre milling and drilling has to be confirmed with Takisawa before a part is planned around it.

05 How does the TS-2000 compare with the TS-3000?

The TS-3000 has a larger left spindle: an 8 in (203 mm) chuck, 67 mm (2.6 in) of bar capacity and 15 / 11 kW (20.1 / 14.8 hp), with top speed reduced to 5,000 rpm. The TS-2000 has a 6 in (152 mm) chuck, 51 mm (2.0 in) of bar capacity, 11 / 7.5 kW (14.8 / 10.1 hp) and 6,000 rpm. Turning diameter, turret options, rapids and listed weights are the same on both.
