Sodick AL800P
Image: sodick.co.jp, Sodick
Key Specifications
X Travel
Y Travel
Z Travel
work tank size
uv axis travel
max taper angle
How much does the Sodick AL800P cost?
Estimated price range
Our best estimate for a wire edm in this class — not a quote from Sodick. Configuration moves it a long way.
Overview

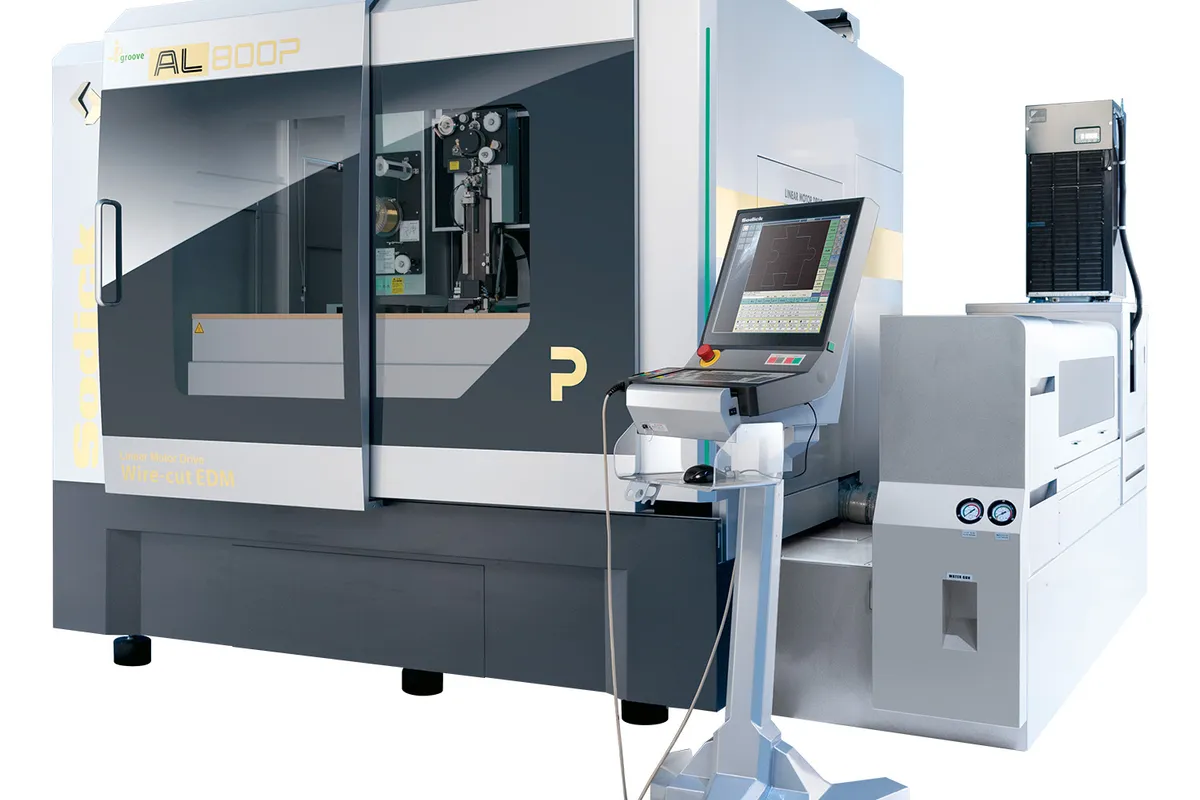

The Sodick AL800P is a large-table wire EDM built for area rather than height: 31.50 in (800 mm) of X and 23.62 in (600 mm) of Y, but only 9.84 in (250 mm) of Z. It accepts a plate of up to 49.21 in × 40.16 in × 9.45 in (1250 × 1020 × 240 mm) weighing up to 3,307 lb (1500 kg), inside a 55.51 in × 43.70 in (1410 × 1110 mm) work tank.
Those proportions point at progressive die plates, stripper plates, large punch holders and multi-cavity mold plates, where a long, wide part carries many openings but is rarely more than a few inches thick. Several separate profiles can be cut across one plate without moving it, which saves the re-indicating a smaller machine would need.
Buyers comparing it with the AL800G should look closely at Z. The AL800G has the same 800 × 600 mm of X/Y but 500 mm of Z, and the ALN800G also lists 19.69 in (500 mm). If any job involves blocks thicker than 240 mm, the AL800P cannot take it, however much table area is left.
Taper is the same as on the smaller AL400P and AL600P: 5.91 in × 5.91 in (150 × 150 mm) of U/V and ±25° at a plate thickness of 5.12 in (130 mm). Wire diameter runs from 0.05 to 0.30 mm (.002 to .012 in), tension from 3 to 23 N, and wire feeds at up to 16.54 in/sec (420 mm/sec).
Installation is the heavy part of the decision. The machine covers 129.92 in × 143.70 in (3300 × 3650 mm), stands 95.08 in (2415 mm) tall and weighs 12,676 lb (5750 kg), yet it runs on the same 3-phase, 50/60 Hz, 13 kVA supply as the AL400P.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 31.50 in (800 mm) |
| Y-Axis Travel | 23.62 in (600 mm) |
| Z-Axis Travel | 9.84 in (250 mm) |
| Work Tank Size | 55.51 in × 43.70 in (1410 × 1110 mm) |
| Uv Axis Travel | 5.91 in × 5.91 in (150 × 150 mm) |
| Max Taper Angle | ± 25° plate thickness: 5.12 in (130 mm) |
| Max Workpiece Size | 49.21 in × 40.16 in × 9.45 in (1250 × 1020 × 240 mm) |
| Max Workpiece Weight | 3,307 lb (1500 kg) |
| Wire Diameter | .002 in - .012 in (0.05 - 0.30 mm) |
| Wire Tension | 3 - 23 N |
| Wire Feed Rate | 16.54 in/sec (420 mm/sec) |
| Floor to Table | 39.17 in (995 mm) |
| Floor Space Required | 129.92 in × 143.70 in × 95.08 in (3300 × 3650 × 2415 mm) |
| Machine Weight | 12,676 lb (5750 kg) |
| Power Supply | 3-phase, 50/60 Hz, 13 kVA |
Specifications sourced from sodick.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 31.50 in × 23.62 in (800 × 600 mm) of X/Y travel, the largest cutting area of the AL400P, AL600P and AL800P
- Takes plates up to 49.21 in × 40.16 in (1250 × 1020 mm) and 3,307 lb (1500 kg)
- Work tank of 55.51 in × 43.70 in (1410 × 1110 mm) for large die and mold plates
- ±25° taper at a 5.12 in (130 mm) plate thickness, with 5.91 in × 5.91 in (150 × 150 mm) of U/V
- Supply requirement of 13 kVA, unchanged from the smallest model in the line
Limitations
- Z travel is only 9.84 in (250 mm) and part height is limited to 9.45 in (240 mm), half the 500 mm Z of the AL800G
- Footprint of 129.92 in × 143.70 in (3300 × 3650 mm) and a 2415 mm overall height need a large bay
- The foundation has to carry the 12,676 lb (5750 kg) machine plus a part of up to 3,307 lb (1500 kg) and a full tank of dielectric
- U/V stroke does not grow with the frame, staying at 150 × 150 mm
Best For
Frequently Asked Questions
01
The table lists 9.84 in (250 mm) of Z and a maximum workpiece height of 9.45 in (240 mm). The machine is sized for wide, relatively thin plates. For thicker work at the same 800 × 600 mm area, the AL800G lists 500 mm of Z.
02
49.21 in × 40.16 in × 9.45 in (1250 × 1020 × 240 mm), up to 3,307 lb (1500 kg), in a 55.51 in × 43.70 in (1410 × 1110 mm) tank. The cut path must fall inside the 800 × 600 mm of X/Y travel.
03
Both move 31.50 in (800 mm) in X and 23.62 in (600 mm) in Y. The ALN800G lists 19.69 in (500 mm) of Z against 9.84 in (250 mm) on the AL800P, and weighs 12,125 lb (5,550 kg) against 12,676 lb (5750 kg).
04
The machine measures 129.92 in × 143.70 in × 95.08 in (3300 × 3650 × 2415 mm) and weighs 12,676 lb (5750 kg). It needs a 3-phase, 50/60 Hz supply of 13 kVA. The table top is 39.17 in (995 mm) above the floor.
