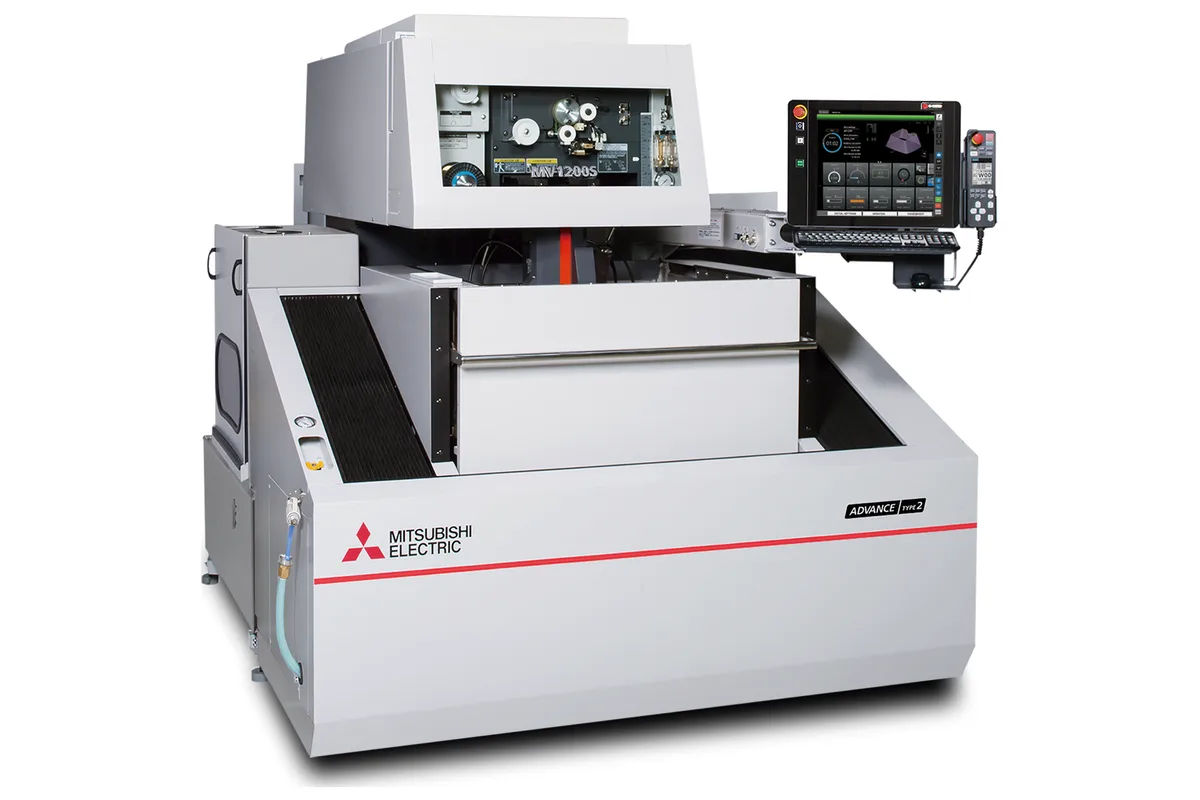

Mitsubishi Electric MV1200S

$180,000 - $250,000 Updated 2026-03-16

Key Specifications

X Travel

1,200 mm (47.2 in)

Y Travel

800 mm (31.5 in)

Z Travel

250 mm (9.84 in)

Accuracy

±0.002 mm

uv taper range

±15° / 100 mm height

work table size

1,450 x 1,000 mm (57.1 x 39.4 in)

Overview

The Mitsubishi Electric MV1200S is a mid-size wire EDM with 1,200 mm (47.2 in) X-axis travel, 800 mm (31.5 in) Y-axis travel, and 250 mm (9.84 in) Z-axis height. It is the backbone machine in Mitsubishi Electric's MV-S series, designed for production tooling shops, aerospace suppliers, and medical device manufacturers who need a reliable, high-precision wire EDM platform with a travel envelope large enough to cover the majority of practical part sizes without moving to a dedicated large-format machine.

The MV1200S is powered by Mitsubishi Electric's AI pulse control generator, which uses real-time feedback from the discharge gap to adapt spark parameters continuously across the cut. The AI system monitors gap voltage, current waveform shape, and discharge frequency in real time, adjusting pulse width and off-time to maintain the most efficient cutting condition for the current material, wire diameter, and flushing state. In practice, this adaptive control produces faster cutting speeds and better surface finishes compared to fixed-parameter generators, particularly when cutting difficult materials like carbide, titanium, and polycrystalline diamond (PCD) inserts.

Mitsubishi Electric's SL-III automatic wire threading system threads the wire reliably through the start hole even after a break, using a pipe-jet threading mechanism that can thread in water without draining the tank. The MV1200S supports wire diameters from 0.10 to 0.30 mm and offers full submerged cutting for thermal stability.

The MV1200S uses Mitsubishi Electric's proprietary ADVANCE digital CNC controller, which provides a touchscreen programming interface with conversational NC capability, automatic technology selection, and CAM import via DXF/DWG. Remote monitoring and diagnostics are available through the machine's Ethernet interface, supporting cell integration and Industry 4.0 connectivity.

Pricing for a new Mitsubishi Electric MV1200S typically falls in the $180,000-$250,000 range. In North America, the MV1200S is sold and serviced by MC Machinery Systems, Mitsubishi Electric's dedicated machine tool division. The MV1200S competes with the Sodick ALC600G, GF AgieCharmilles Cut 400 Sp, and Fanuc ROBOCUT α-C600iB.

Full Specifications

Parameter	Value
X-Axis Travel	1,200 mm (47.2 in)
Y-Axis Travel	800 mm (31.5 in)
Z-Axis Travel	250 mm (9.84 in)
Uv Taper Range	±15° / 100 mm height
Work Table Size	1,450 x 1,000 mm (57.1 x 39.4 in)
Max Workpiece Weight	1,500 kg (3,307 lb)
Max Workpiece Height	250 mm (9.84 in)
Wire Diameter Range	0.10 - 0.30 mm
Drive System	High-precision ball screws with linear scales
Generator	AI pulse control (Mitsubishi Electric proprietary)
Surface Finish	Ra 0.12 um achievable
Positioning Accuracy	±0.002 mm
CNC Control	ADVANCE digital CNC
Awt	SL-III automatic wire threading (in-water capable)
Machine Dimensions	2,750 x 2,350 x 2,250 mm (108 x 92.5 x 88.6 in)
Machine Weight	7,500 kg (16,535 lb)
Connectivity	Ethernet, remote monitoring, Industry 4.0 interface
Manufacturer	Mitsubishi
Model	MV1200R ADVANCE PLUS
Power Requirement	200 - 230 kW

Specifications sourced from machinio.com — verified 2026-03-28

Strengths & Limitations

Strengths

AI pulse control generator adapts spark parameters in real time to material and flushing conditions — consistently faster than fixed-parameter generators on difficult materials like carbide, titanium, and PCD
1,200 mm X-travel covers a wide range of large tooling work without moving to the extra-large machine tier, offering the right sizing for most production die and mold shops
SL-III automatic wire threading operates in water without tank draining, enabling faster recovery from wire breaks on overnight unmanned runs
ADVANCE digital CNC with touchscreen and conversational programming reduces setup time and makes the machine accessible to operators without specialized EDM controller training
1,500 kg workpiece capacity handles large die blocks and heavy fixtures across the full 1,200 x 800 mm travel envelope
MC Machinery Systems' established North American service and parts network provides strong post-sale support with trained field technicians in most major manufacturing regions

Limitations

Ball-screw drive system (vs. linear motors on Sodick) means positioning accuracy degrades over time with wear — periodic ball screw inspection and eventual replacement are maintenance realities
Z-axis height of 250 mm limits maximum workpiece height — shops with tall-workpiece requirements should evaluate the MV2400S or MV4800S
ADVANCE CNC, while capable, is less familiar to operators trained on Fanuc or Siemens controls than Mitsubishi's interface adaptation suggests
AI pulse control's full benefits are most apparent on difficult materials — on standard steel cutting, the performance advantage over conventional generators is less pronounced

Best For

Production die and mold shops where the 1,200 x 800 mm travel covers the majority of workpieces and AI pulse control provides measurable speed improvements on carbide and titanium inserts Aerospace tier-2 and tier-3 suppliers cutting mid-to-large titanium, Inconel, and aluminum structural components that regularly span 800-1,200 mm Medical device manufacturers producing large implant fixturing, surgical tool blanks, and precision titanium components requiring Ra 0.12 um surface finishes Job shops that want the reliability of Mitsubishi Electric's established technology and the confidence of MC Machinery's North American service network Operations integrating wire EDM into automated cells — the MV1200S's Ethernet connectivity and remote monitoring support cell integration without third-party interface hardware

Frequently Asked Questions

01 How does Mitsubishi Electric's AI pulse control work?

The AI pulse control system samples the discharge gap voltage and current waveform at high frequency for every spark. An embedded AI model — trained on Mitsubishi Electric's extensive process data — classifies each discharge as normal, short, open, or abnormal and adjusts the next pulse's width and off-time accordingly. This allows the generator to maintain optimal cutting conditions even as flushing efficiency changes through a tall workpiece or when the cut moves from a solid section to a complex profile. The practical result is fewer wire breaks, faster average cutting speed, and more consistent surface finish compared to time-constant generators.

02 How does the MV1200S compare to the Sodick ALC600G?

The ALC600G uses Sodick's linear motor drives for zero-backlash positioning and a 10-year accuracy guarantee. The MV1200S uses ball screws with linear scale feedback for positioning and Mitsubishi's AI pulse control for generator performance. The ALC600G is the stronger choice for shops that prioritize long-term mechanical accuracy and zero-maintenance drives; the MV1200S is more competitive for shops prioritizing AI-driven cutting speed on difficult materials and MC Machinery's service network. Travel envelopes are similar — the MV1200S's 1,200 mm X is somewhat larger than the ALC600G's 600 mm X.

03 What wire types work best in the MV1200S?

For most production steel cutting, 0.25 mm coated brass wire (zinc-diffused surface layer) provides optimal cutting speed with the AI pulse control generator. Mitsubishi Electric has tuned the AI system specifically for coated wire's improved flushing efficiency. For carbide cutting, 0.20 mm plain brass or 0.20 mm coated wire with carbide-specific technology tables is recommended. For PCD and ceramic cutting, 0.15 mm plain brass at reduced feed rates with the AI system's material-specific mode gives the best results.

04 Does the MV1200S support lights-out operation?

Yes. The MV1200S is designed for unattended operation with the SL-III automatic wire threading (which re-threads after breaks without operator assistance), job queue management through the ADVANCE CNC, and remote monitoring via Ethernet. Most shops run the MV1200S overnight on queued jobs without staffing. The AI pulse control's adaptive discharge management reduces break frequency compared to fixed-parameter generators, further improving the reliability of overnight runs.

05 What is MC Machinery Systems' service coverage for the MV1200S?

MC Machinery Systems operates service centers across North America with factory-trained field service engineers. Response times vary by region but typically run 1-3 business days for most manufacturing areas. Emergency service options with faster response are available on service contracts. MC Machinery maintains a parts inventory for current MV-S series machines and provides telephone technical support as well as remote diagnostic access through the machine's Ethernet interface. When evaluating the MV1200S, ask your local MC Machinery representative for specific response time commitments for your location.
