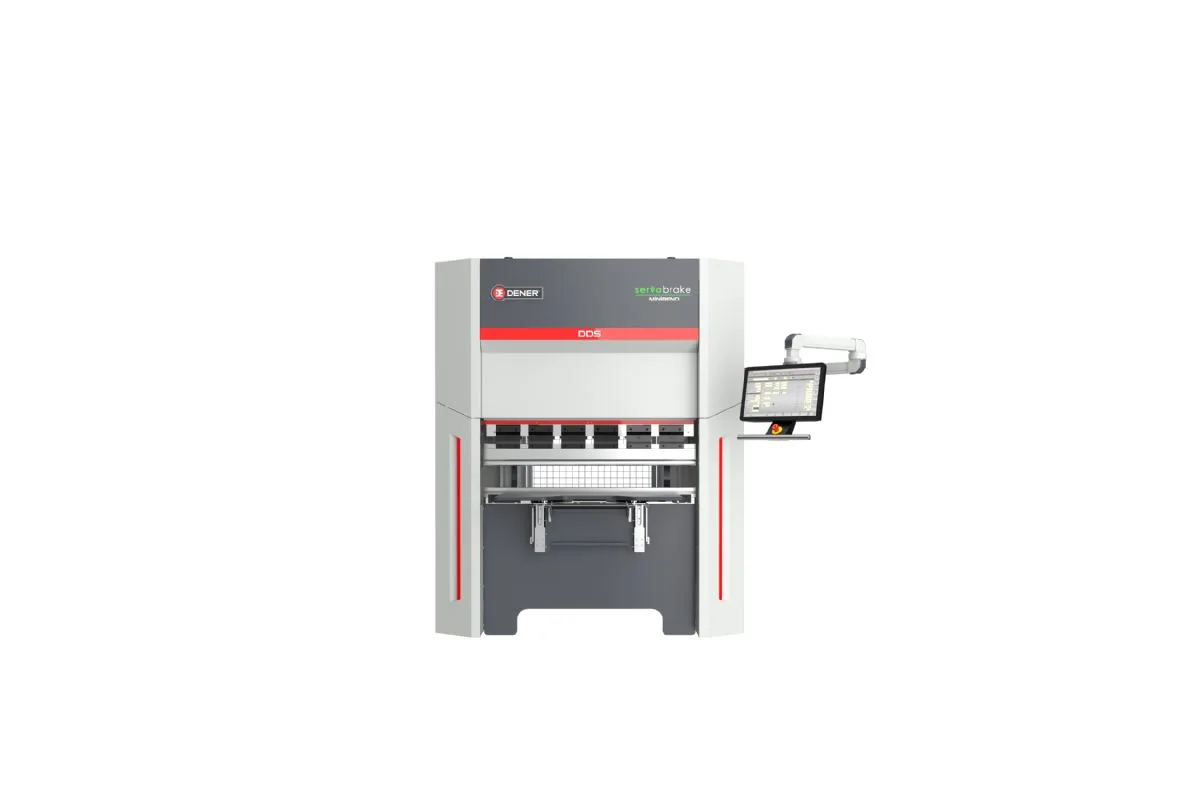

Dener DDS-2090
Image: en.dener.com, Dener
Key Specifications
bending length
bending capacity
daylight
stroke
approach speed
bending speed
How much does the Dener DDS-2090 cost?
Price estimate
We do not have a price for the Dener DDS-2090 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Twenty ton on a 900 mm (35.4 in) bed: the Dener DDS-2090 is a compact ball screw press brake for small parts. It needs one 3.8 kW motor, weighs 2,000 kg (4,409 lb) and stands on a footprint of 1,280 mm by 1,760 mm.
Machines like this are placed next to a laser or punch to bend small parts as they come off the sheet, or in an assembly area where a full-size brake would be out of place. The electric drive helps there. Dener describes the series as free of hydraulic oil and points to reduced noise.
The ram approaches at 120 mm/sec, bends at 20 mm/sec and returns at 120 mm/sec. Maximum stroke is 150 mm, daylight 375 mm.
Despite its size, the standard specification is that of a full CNC brake. There are four axes (Y1, Y2, X, R), an ESA S 640 control and a DSP front laser safety system. Tooling is held in European-style sectional holders, with pneumatic or Wila clamping as options.
The DDS-2060 is the same machine with a 600 mm bed. Height is 2,190 mm on both, and both run from a 380 V three-phase supply.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Length | 900 mm (35.4 in) |
| Bending Capacity | 20 ton |
| Daylight | 375 mm (14.8 in) |
| Stroke | 150 mm (5.9 in) |
| Approach Speed | 120 mm/sec |
| Bending Speed | 20 mm/sec |
| Return Speed | 120 mm/sec |
| Motor Power | 3.8 kW |
| Machine Weight | 2,000 kg (4,409 lb) |
| Machine Length | 1,280 mm (50.4 in) |
| Machine Width | 1,760 mm (69.3 in) |
| Machine Height | 2,190 mm (86.2 in) |
Specifications sourced from en.dener.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Compact: 1,280 mm long, 1,760 mm wide, 2,000 kg (4,409 lb)
- A single 3.8 kW motor drives the ram
- 20 mm/sec bending speed, as on larger DDS models
- Y1, Y2, X and R axes with an ESA S 640 control as standard
Limitations
- Capacity is limited to 20 ton
- Bending length is only 900 mm
- 150 mm stroke and 375 mm daylight
Best For
Frequently Asked Questions
01
Overall length is 1,280 mm, width 1,760 mm and height 2,190 mm. It weighs 2,000 kg (4,409 lb), light enough for many upper floors, subject to a structural check.
02
Parts up to 900 mm (35.4 in) long with up to 20 ton of force. Stroke is 150 mm and daylight 375 mm, which suits flat parts and shallow boxes.
03
Bending length. The DDS-2060 bends 600 mm, is 1,410 mm wide and weighs 1,700 kg. Force, speeds, stroke, daylight and motor are the same on both.
04
Approach and return speeds are 120 mm/sec and bending speed is 20 mm/sec, the same as on the larger DDS-4013 with its two motors.
