You Ji VTH6000ATC

Q: How much does the You Ji VTH6000ATC cost?

The price estimate for the You Ji VTH6000ATC is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/you-ji-vth6000atc#price; the request is passed to You Ji or an authorised dealer.

Specs verified 2026-10-04 · image.youji.com Updated 2026-10-04

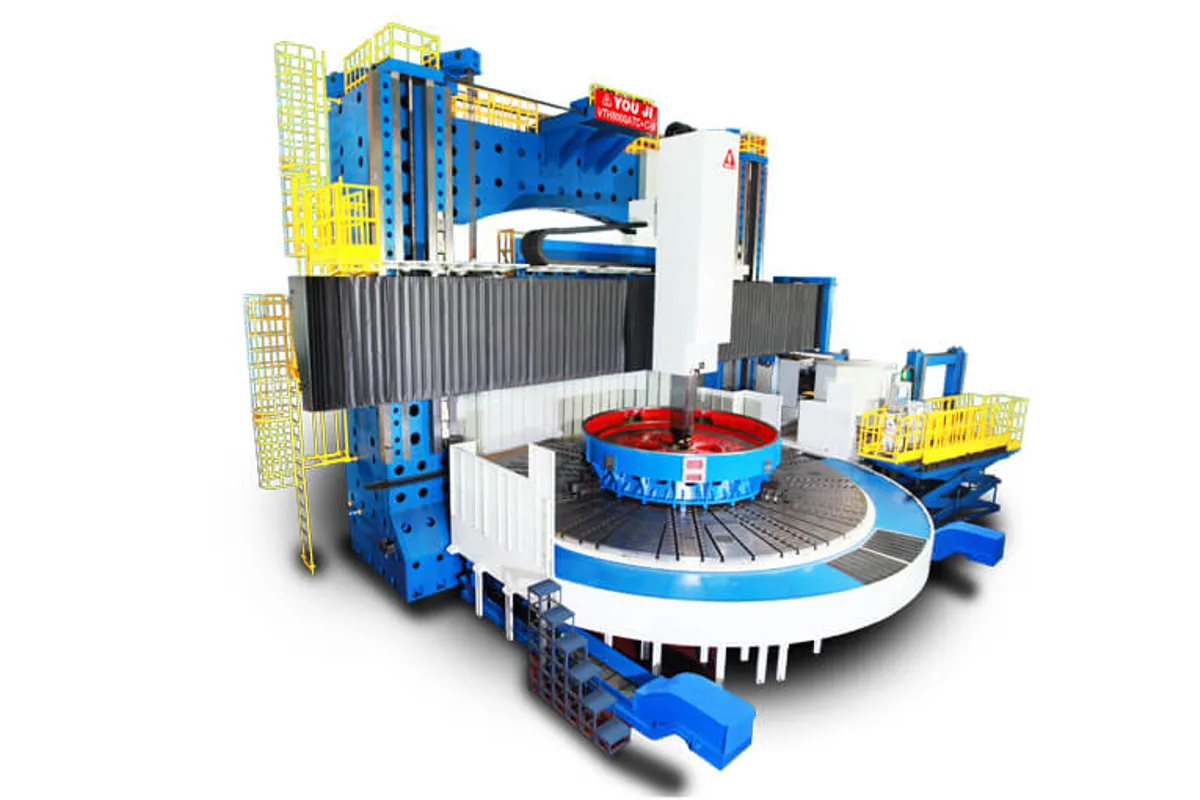

You Ji VTH6000ATC CNC vertical turning lathe (VTH series)

Image: image.youji.com, You Ji

Key Specifications

Max Spindle

3-25 rpm

Spindle Power

2 x 60/84 kW (2 x 80.5/112.6 hp)

table diameter

Ø6,000 mm (236.2 in)

max swing diameter

Ø7,400 mm (291.3 in)

max turning diameter

Ø6,900 mm (271.7 in)

max turning height

2,100 mm (82.7 in)

How much does the You Ji VTH6000ATC cost?

Price estimate

Uncertain

We do not have a price for the You Ji VTH6000ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A Ø6,000 mm (236.2 in) table rated for 150,000 kg (330,688 lb) is what the You Ji VTH6000ATC offers. The machine is a hydrostatic-bearing CNC vertical turning lathe that turns up to Ø6,900 mm (271.7 in) inside a Ø7,400 mm (291.3 in) swing.

It shares its drive and its height with the VTH5000ATC: the spindle motor is listed as 2 x 60/84 kW (2 x 80.5/112.6 hp), turning height is 2,100 mm (82.7 in) and the machine stands 9,700 mm (381.9 in) tall. The table speed range drops to 3-25 rpm. With the same installed power spread over a slower range, the available table torque goes up, which is what a 150-tonne workpiece demands on start-up and in interrupted cuts.

The floor dimension is 18,000 x 12,500 mm (708.7 x 492.1 in), a metre deeper than the smaller sibling and no longer.

Who needs seven metres? Builders of large hydro and wind components, makers of mining mill heads and girth-gear segments, and yards machining ship propulsion parts. For such work the usual alternative is to move the tool around a stationary part; a table this size lets the part rotate instead, which keeps turned diameters round and concentric. The key lists ATC, ATC+C, double ram and three raised-column builds; the tool shank is BT-50/BT-60.

Full Specifications

Parameter	Value
Table Diameter	Ø6,000 mm (236.2 in)
Max Swing Diameter	Ø7,400 mm (291.3 in)
Max Turning Diameter	Ø6,900 mm (271.7 in)
Max Turning Height	2,100 mm (82.7 in)
Max Table Load	150,000 kg (330,688 lb)
Spindle Motor Power	2 x 60/84 kW (2 x 80.5/112.6 hp)
Tool Shank	BT-50/BT-60
Max Spindle Speed	3-25 rpm
Floor Space	18,000 x 12,500 mm (708.7 x 492.1 in)
Machine Height	9,700 mm (381.9 in)

Specifications sourced from image.youji.com — verified 2026-10-04

Strengths & Limitations

Strengths

150,000 kg (330,688 lb) loading weight on a hydrostatic table bearing
Ø6,900 mm (271.7 in) turning diameter with Ø7,400 mm (291.3 in) swing
Same 9,700 mm (381.9 in) height as the VTH5000ATC
BT-50/BT-60 tooling with ATC, ATC+C and double ram builds

Limitations

Table speed range is only 3-25 rpm
Motor rating of 2 x 60/84 kW (2 x 80.5/112.6 hp) is no higher than on the VTH5000ATC
Floor dimension of 18,000 x 12,500 mm (708.7 x 492.1 in)

Best For

Mining mill heads and girth-gear segments Hydro and wind components up to Ø6,900 mm (271.7 in) Workpieces up to 150,000 kg (330,688 lb)

Frequently Asked Questions

01 What is the capacity of the VTH6000ATC?

Table Ø6,000 mm (236.2 in), maximum swing Ø7,400 mm (291.3 in), maximum turning diameter Ø6,900 mm (271.7 in), maximum turning height 2,100 mm (82.7 in) and maximum loading weight 150,000 kg (330,688 lb).

02 How fast does the table turn?

The speed range is 3-25 rpm. The VTH5000ATC, with the same motor row, runs 5-40 rpm. The catalogue prints no torque figure.

03 How does it compare with the VTH5000ATC?

The VTH6000ATC adds table diameter and load: 150,000 kg (330,688 lb) against 100,000 kg (220,459 lb) on the VTH5000ATC. Turning height, machine height and the 2 x 60/84 kW (2 x 80.5/112.6 hp) motor row are the same.

04 What plot does the machine need?

18,000 x 12,500 mm (708.7 x 492.1 in) of floor at 9,700 mm (381.9 in) height in the standard column build. Raised-column versions are taller, and the catalogue does not give their height.
