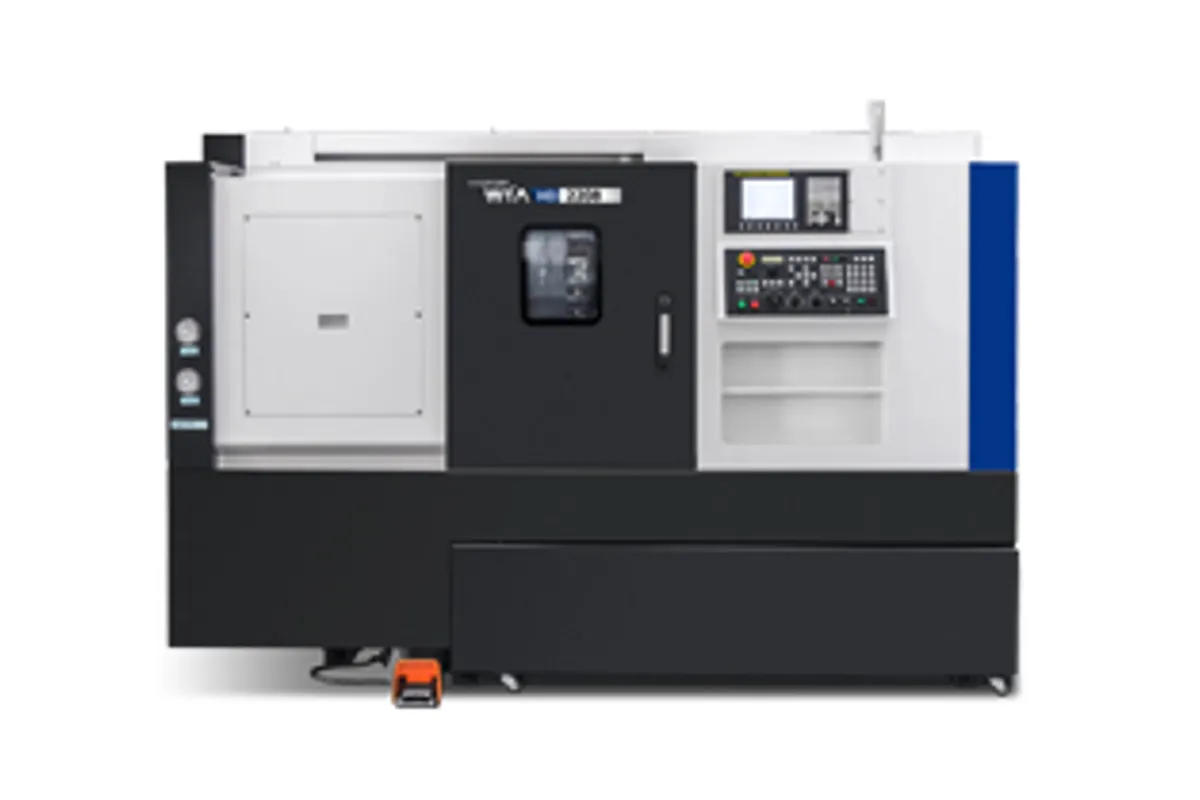

Hyundai WIA HD2208/2600
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
max turning diameter
chuck size
spindle torque
Overview
The Hyundai WIA HD2208/2600 is a compact heavy-duty turning center family available in 8-inch (HD2208) and 10-inch (HD2600) chuck configurations, both with optional milling variants (HD2208M/HD2608M). Built on box-way guideways with belt-driven spindles, these machines target production shops that need robust small-to-mid-size turning capacity at competitive price points.
Both the HD2208 and HD2600 share 18.5/15 kW (25/20 hp) spindle power at 4,000 RPM, with the torque difference reflecting the chuck size: 206/125 Nm for the 8-inch HD2208 and 300/183 Nm for the 10-inch HD2600. The box-way slide construction provides the vibration damping advantage over linear-guide machines in the same size class, making these machines well-suited for interrupted cuts and aggressive roughing in steel and cast iron.
Maximum turning diameter is 410 mm with 565 mm turning length for the base models, or 330 mm diameter with 500 mm length on the M variants that accommodate live milling tooling. The 12-station turret handles 25/40 mm tooling, and the M variants add 6,000 RPM live milling capability — notably faster than the 4,000 RPM milling speed on the larger L300 platform. Rapid traverse of 24/30 m/min (X/Z) is competitive for the class.
With X/Z axis travel of 235/580 mm and the Fanuc 0i-TF Plus control standard, the HD2208/2600 family is priced at approximately $55,000-$100,000 depending on configuration. These machines compete directly with the Haas ST-10/ST-15, DN Solutions Lynx 2100, and Mazak QT-200 in the compact heavy-duty turning segment.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 410 mm (16.1 in) [base] / 330 mm (13.0 in) [M variants] |
| Max Turning Length | mm |
| Chuck Size | inch |
| Max Spindle Speed | 4,000 RPM |
| Spindle Motor Power | 18.5/15 kW (25/20 hp) |
| Spindle Torque | N.m |
| Spindle Drive | Belt |
| X Axis Travel | 235 mm (9.3 in) |
| Z Axis Travel | 580 mm (22.8 in) |
| Rapid Traverse X | 24 m/min (945 ipm) |
| Rapid Traverse Z | 30 m/min (1,181 ipm) |
| Turret Stations | 12 |
| Tool Size | mm |
| Live Tool Speed | 6,000 RPM (M variants only) |
| Guideway Type | Box ways (X and Z) |
| CNC Control | Fanuc 0i-TF Plus |
| Description | Unit |
| Max Turning Dia | mm |
| Spindle Rpm | r/min |
| Spindle Output | kW |
| Travel | mm |
| Rapid Travel | m/min |
| No Of Tools | EA |
| Milling Tool Speed | r/min |
| Type Of Business | Business Type 1VehiclesIT/ElectronicsMachinery/ShipbuildingComplex & Precise PartsDie&Mold IndustryEnergyOthersBusiness Type 2 |
| E Mail | @ |
Specifications sourced from wiamachine.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Box-way construction in a compact package provides heavy-duty rigidity uncommon at this price point
- 4,000 RPM spindle with 30 m/min Z-axis rapid traverse balances speed and cutting performance
- M variants offer 6,000 RPM live milling — 50% faster than L300 platform milling speed
- Dual chuck-size options (8" and 10") allow shops to right-size the machine to their part mix
- Competitive pricing from $55,000 undercuts comparable Haas and Mazak offerings
- 12-station turret provides adequate tooling for complex multi-operation programs
Limitations
- 235 mm X-axis travel is limited for larger-diameter facing operations
- 580 mm Z-axis travel constrains maximum turning length versus longer-bed competitors
- Belt-driven spindle produces lower torque than gear-driven alternatives in the same power class
- Hyundai WIA's dealer network in North America is smaller than Haas and Mazak
Best For
Frequently Asked Questions
01
The primary difference is chuck size: 8-inch (HD2208) versus 10-inch (HD2600). The HD2600 produces higher torque (300 Nm versus 206 Nm) due to the larger chuck and spindle. Both share identical axis travel, spindle power, rapid traverse, and turret specifications. Choose based on your typical workpiece diameter range.
02
The base HD2208 starts around $55,000-$70,000. The HD2600 with 10-inch chuck runs $65,000-$80,000. M variants with live milling add $15,000-$20,000 to the base price. Used machines from recent years appear in the $30,000-$50,000 range depending on configuration and condition.
03
Both are compact 8-inch chuck turning centers at similar price points. The HD2208 features box-way construction for better vibration damping in heavy cuts, while the Haas ST-10 uses a cast-iron A2-5 spindle with a larger dealer network. The HD2208M offers 6,000 RPM live milling versus the Haas ST-10Y's lower milling speed.
04
The 6,000 RPM milling speed on the M variants enables higher surface speeds on small-diameter milling cutters, resulting in better surface finish and shorter cycle times on cross-holes, flats, and threaded features. This is 50% faster than the 4,000 RPM milling available on Hyundai WIA's larger L300 platform.
