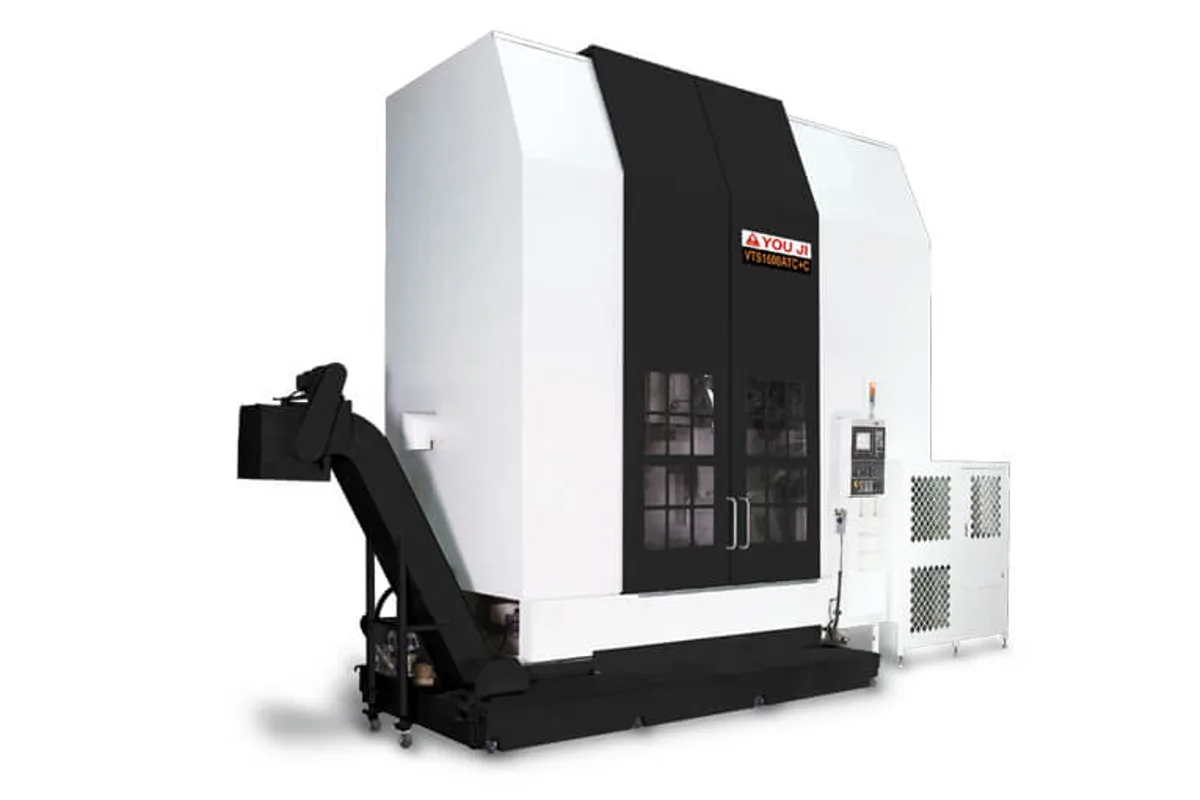

You Ji VTS2500ATC
Image: image.youji.com, You Ji
Key Specifications
Max Spindle
Spindle Power
table diameter
max swing diameter
max turning diameter
max turning height
How much does the You Ji VTS2500ATC cost?
Price estimate
We do not have a price for the You Ji VTS2500ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The You Ji VTS2500ATC carries 15,000 kg (33,069 lb) on a Ø2,500 mm (98.4 in) table and turns up to Ø2,800 mm (110.2 in). It is a fixed cross-rail vertical turning lathe with an automatic tool changer and the Capto C6 tool shank common to the VTS series.
In the VTS key, pallet changers stop here. APC is listed for sizes 1000 to 2500, so this is the largest fixed-rail model that can exchange a finished part for a fresh one without stopping for a crane lift. For ring producers that is a real consideration, since setting and clocking a 2.8 m ring can take as long as cutting it.
Turning height is 800 mm (31.5 in), the last VTS size with that figure; the VTS3000ATC rises to 1,000 mm (39.4 in). The motor is 60/75 kW (80.5/100.6 hp) and the speed range 1-160 rpm, the same pairing as the VTL2500ATC.
The frame is long and low. Floor dimension is 9,850 x 6,035 mm (387.8 x 237.6 in) and height 5,930 mm (233.5 in), identical in height to the VTS2000ATC. Swing is Ø3,000 mm (118.1 in). A double ram version and an ATC+C version with C-axis function are available according to the model key.
Full Specifications
| Parameter | Value |
|---|---|
| Table Diameter | Ø2,500 mm (98.4 in) |
| Max Swing Diameter | Ø3,000 mm (118.1 in) |
| Max Turning Diameter | Ø2,800 mm (110.2 in) |
| Max Turning Height | 800 mm (31.5 in) |
| Max Table Load | 15,000 kg (33,069 lb) |
| Spindle Motor Power | 60/75 kW (80.5/100.6 hp) |
| Tool Shank | Capto C6 |
| Max Spindle Speed | 1-160 rpm |
| Floor Space | 9,850 x 6,035 mm (387.8 x 237.6 in) |
| Machine Height | 5,930 mm (233.5 in) |
Specifications sourced from image.youji.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Largest VTS size listed with an automatic pallet changer
- 15,000 kg (33,069 lb) loading weight and Ø2,800 mm (110.2 in) turning diameter
- 60/75 kW (80.5/100.6 hp) spindle motor
- Height of 5,930 mm (233.5 in), no taller than the VTS2000ATC
Limitations
- 800 mm (31.5 in) turning height; the VTL2500ATC lists 1,600 mm (63.0 in)
- Table speed range of 1-160 rpm
- Floor dimension of 9,850 x 6,035 mm (387.8 x 237.6 in)
Best For
Frequently Asked Questions
01
Yes. The model key lists APC, automatic pallet changer, for VTS sizes 1000 to 2500, and this is the top of that span. Pallet size and change time are not in the catalogue.
02
Table Ø2,500 mm (98.4 in), maximum swing Ø3,000 mm (118.1 in), maximum turning diameter Ø2,800 mm (110.2 in), maximum turning height 800 mm (31.5 in), maximum loading weight 15,000 kg (33,069 lb).
03
Table, swing, turning diameter, load, motor and speed range are the same. The VTL2500ATC has 1,600 mm (63.0 in) of turning height and a BT-50 shank and stands 6,650 mm (261.8 in) high. The VTS2500ATC has 800 mm (31.5 in), Capto C6 and a height of 5,930 mm (233.5 in).
04
A 60/75 kW (80.5/100.6 hp) motor turning the table at 1-160 rpm. The catalogue gives no torque figure for the table.
