Colchester Magnum HD CNC 1000

Q: How much does the Colchester Magnum HD CNC 1000 cost?

The price estimate for the Colchester Magnum HD CNC 1000 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/colchester-magnum-hd-cnc-1000#price; the request is passed to Colchester or an authorised dealer.

Specs verified 2026-10-04 · colchester.co.uk Updated 2026-10-04

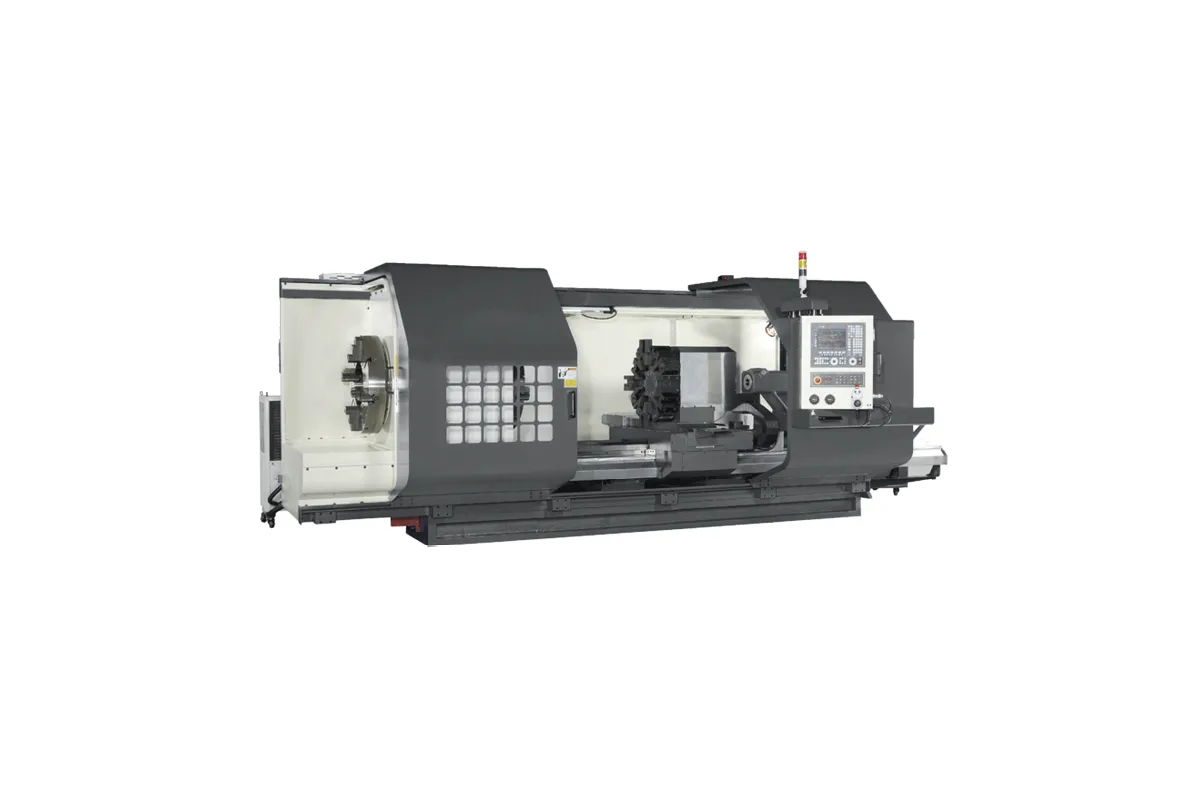

Colchester Magnum HD CNC 1000 (Magnum HD CNC series)

Image: colchester.co.uk, Colchester

Key Specifications

Spindle Power

22.5 kW (30.2 hp) / 30 kW (40.2 hp) option

swing over bed

1,000 mm (39.4 in)

distance between centres

2 / 3 / 4 / 5 / 6 m (78.7 / 118.1 / 157.5 / 196.9 / 236.2 in)

spindle bore

155 / 250 / 305 / 380 mm (6.1 / 9.8 / 12.0 / 15.0 in)

spindle nose

A2-11 / A2-15 / A2-20 / A2-20

spindle speed range

6 - 800 / 4 - 600 / 4 - 400 / 4 - 300 rpm

How much does the Colchester Magnum HD CNC 1000 cost?

Price estimate

Uncertain

We do not have a price for the Colchester Magnum HD CNC 1000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A 380 mm (15.0 in) spindle bore is available on the Colchester Magnum HD CNC 1000, the fourth and largest of the bore options on this 1,000 mm (39.4 in) swing heavy-duty CNC lathe. The full list reads 155 / 250 / 305 / 380 mm (6.1 / 9.8 / 12.0 / 15.0 in). Bed lengths run from 2 m to 6 m between centres.

Bores of that size exist for one kind of work: long hollow parts that must pass through the headstock so that only the end is machined. Drill pipe, casing, large hydraulic cylinders and flanged tube are the usual examples. Colchester lists rear chuck options with a manual or auto sliding rear chuck guard, which is how such parts are held at both ends of the spindle.

Speed falls as the bore grows. The four ranges are 6 - 800 / 4 - 600 / 4 - 400 / 4 - 300 rpm, on noses A2-11 / A2-15 / A2-20 / A2-20. Spindle power is 22.5 kW (30.2 hp) with a 30 kW (40.2 hp) option. That is the same motor as the Magnum HD CNC 800, so this model is the larger-capacity machine and no stronger in the cut.

Swing over the cross slide is 710 mm (28.0 in), well beyond what the smaller model allows, and the gap takes 1,300 mm (51.2 in). The structure is the one-piece bed, floor-type casting common to the series, with an alloy steel spindle on opposed taper roller bearings. A 4-way hydraulic tool post, rear swarf conveyor and FANUC 0i-TF Plus control with Manual Guide i are standard.

Full Specifications

Parameter	Value
Swing Over Bed	1,000 mm (39.4 in)
Distance Between Centres	2 / 3 / 4 / 5 / 6 m (78.7 / 118.1 / 157.5 / 196.9 / 236.2 in)
Spindle Bore	155 / 250 / 305 / 380 mm (6.1 / 9.8 / 12.0 / 15.0 in)
Spindle Nose	A2-11 / A2-15 / A2-20 / A2-20
Spindle Speed Range	6 - 800 / 4 - 600 / 4 - 400 / 4 - 300 rpm
Spindle Motor Power	22.5 kW (30.2 hp) / 30 kW (40.2 hp) option
Swing in Gap	1,300 mm (51.2 in)
Swing Over Cross Slide	710 mm (28.0 in)
CNC Control	Fanuc 0i-TF Plus

Specifications sourced from colchester.co.uk — verified 2026-10-04

Strengths & Limitations

Strengths

Four spindle bores up to 380 mm (15.0 in)
1,000 mm (39.4 in) swing over the bed and 710 mm (28.0 in) over the cross slide
Swing in the gap of 1,300 mm (51.2 in)
Rear chuck options with manual or auto sliding guard for long hollow work
One-piece bed, floor-type casting with a 4-step auto change headstock

Limitations

The 380 mm (15.0 in) bore version is limited to 4 - 300 rpm
Spindle power is the same 22.5 kW (30.2 hp) as on the Magnum HD CNC 800
The page publishes no machine weight, footprint or maximum workpiece weight
Chucks, steady rests and the turret are all options to be specified

Best For

Pipe, casing and cylinders passed through a bore of up to 380 mm (15.0 in) Heavy shafts up to 6 m between centres and 710 mm (28.0 in) over the cross slide Large flanges and rings in the 1,300 mm (51.2 in) gap End-working long hollow parts with a rear chuck

Frequently Asked Questions

01 What spindle bores does the Magnum HD CNC 1000 offer?

155 / 250 / 305 / 380 mm (6.1 / 9.8 / 12.0 / 15.0 in). The corresponding noses are A2-11 / A2-15 / A2-20 / A2-20 and the speed ranges 6 - 800 / 4 - 600 / 4 - 400 / 4 - 300 rpm.

02 How does it differ from the Magnum HD CNC 800?

The Magnum HD CNC 800 swings 800 mm (31.5 in) over the bed and 510 mm (20.1 in) over the cross slide, and its largest bore is 305 mm (12.0 in). This model swings 1,000 mm (39.4 in) and 710 mm (28.0 in) and adds the 380 mm (15.0 in) bore. Spindle power and bed lengths are the same.

03 How much power does the spindle have?

22.5 kW (30.2 hp) as standard, with 30 kW (40.2 hp) listed as an option. Colchester describes the headstock as a 4-step auto change variable speed unit and the spindle as alloy steel with opposed taper roller bearings. No torque figure is published.

04 What tooling arrangement is standard?

A 4-way hydraulic tool post with tool holders. An auto indexing tool turret is optional, and so is C-axis functionality with a driven tool turret for milling, drilling and tapping. The tailstock is carriage driven with manual quill movement.
