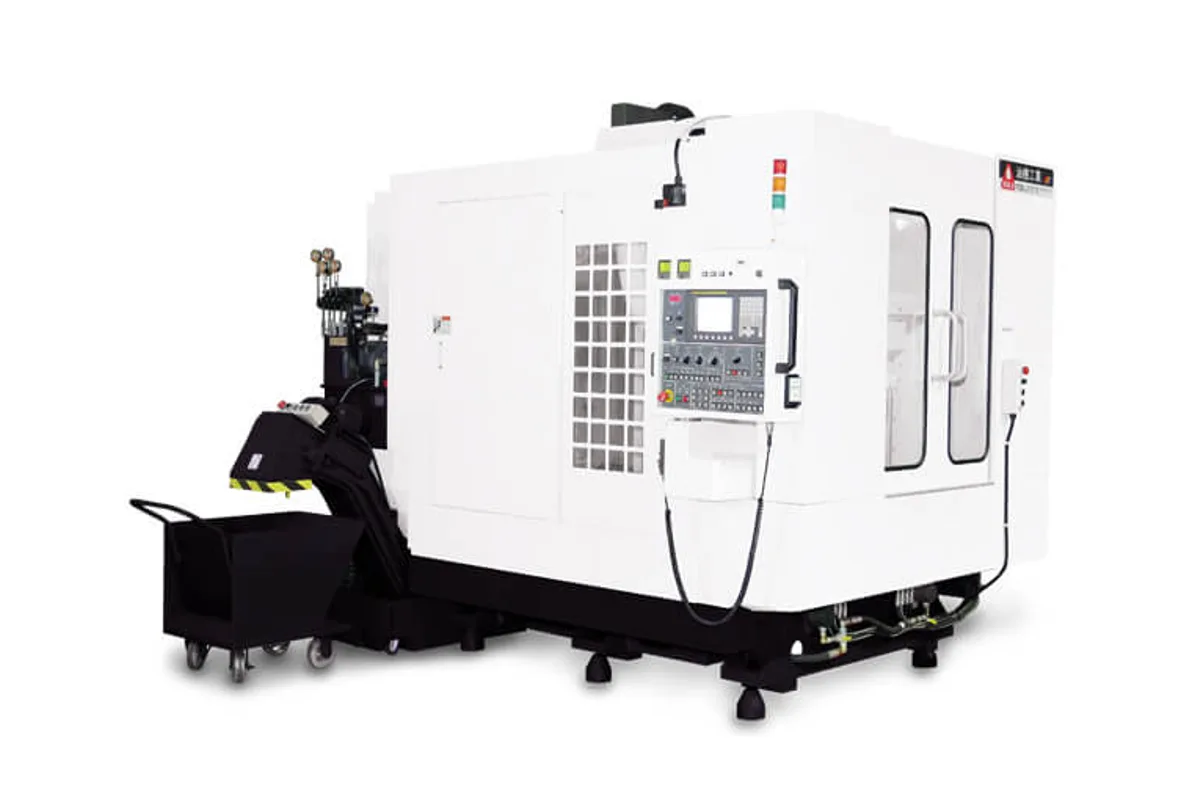

You Ji TMV600
Image: image.youji.com, You Ji
Key Specifications
Max Spindle
Spindle Taper
Table Size
y axis travel
z axis travel
distance spindle nose to table
How much does the You Ji TMV600 cost?
Price estimate
We do not have a price for the You Ji TMV600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The You Ji TMV600 is a travelling column tapping center. The column carries the BT-40 spindle through all the axis moves while the 700 x 450 mm (27.6 x 17.7 in) table stays put, which is the layout You Ji uses to hang different work-holding units on one base machine.
Four table arrangements are in the model key. T is a fixed table. A adds an A-axis rotary table, A+B adds A-axis and B-axis rotary tables, and S is a swing table, which lets an operator load one side while the spindle works on the other. Because the work does not move in the linear axes, a rotary unit or a heavy fixture does not have to be accelerated on every positioning move.
Y-axis travel is 410 mm (16.1 in) and Z-axis travel 460 mm (18.1 in). The spindle is listed at 8,000 rpm, and the nose sits 220-680 mm (8.7-26.8 in) above the table. The 220 mm (8.7 in) minimum is deliberate: it leaves height for a trunnion or swing table under the tool.
The X-axis travel is not shown in the spec table on this page. The catalogue and You Ji's website print different figures for it, so confirm the stroke with the maker. Also missing from the published table are rapid rates, tapping speed and tool capacity. The machine takes 2,290 x 3,170 mm (90.2 x 124.8 in) of floor and is 2,835 mm (111.6 in) high.
Full Specifications
| Parameter | Value |
|---|---|
| Y Axis Travel | 410 mm (16.1 in) |
| Z Axis Travel | 460 mm (18.1 in) |
| Distance Spindle Nose to Table | 220-680 mm (8.7-26.8 in) |
| Max Spindle Speed | 8,000 rpm |
| Spindle Taper | BT-40 |
| Table Size | 700 x 450 mm (27.6 x 17.7 in) |
| Floor Space | 2,290 x 3,170 mm (90.2 x 124.8 in) |
| Machine Height | 2,835 mm (111.6 in) |
Specifications sourced from image.youji.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Travelling column design keeps the workpiece and fixture stationary
- Four table builds: fixed (T), A-axis rotary (A), A-axis plus B-axis rotary (A+B) and swing table (S)
- BT-40 spindle at 8,000 rpm on a tapping-center footprint
- 220-680 mm (8.7-26.8 in) spindle nose to table distance leaves room for rotary fixtures
- Compact floor space of 2,290 x 3,170 mm (90.2 x 124.8 in)
Limitations
- Y-axis travel of 410 mm (16.1 in) limits part depth
- The maker's two published X travel figures disagree, so the stroke needs confirming
- No rapid traverse, tool change time or tool capacity in the table
- With 220 mm (8.7 in) minimum nose height, short tools cannot reach a low part on the fixed table without a riser
Best For
Frequently Asked Questions
01
On the TMV600 the column moves in the linear axes and the table is fixed. You Ji describes the machine as a CNC travelling column tapping center and offers it with a fixed table, rotary tables or a swing table on the same base.
02
The model key lists T (fixed table), A (A-axis rotary table), A+B (A-axis and B-axis rotary tables) and S (swing table). The table size in the catalogue is 700 x 450 mm (27.6 x 17.7 in).
03
Spindle taper is BT-40 and spindle speed 8,000 rpm. Z-axis travel is 460 mm (18.1 in), with 220-680 mm (8.7-26.8 in) between the spindle nose and the table.
04
Floor space is 2,290 x 3,170 mm (90.2 x 124.8 in) and machine height 2,835 mm (111.6 in). Y-axis travel is 410 mm (16.1 in). The X-axis stroke is left out of this page's table because the maker's catalogue and website differ on it.
