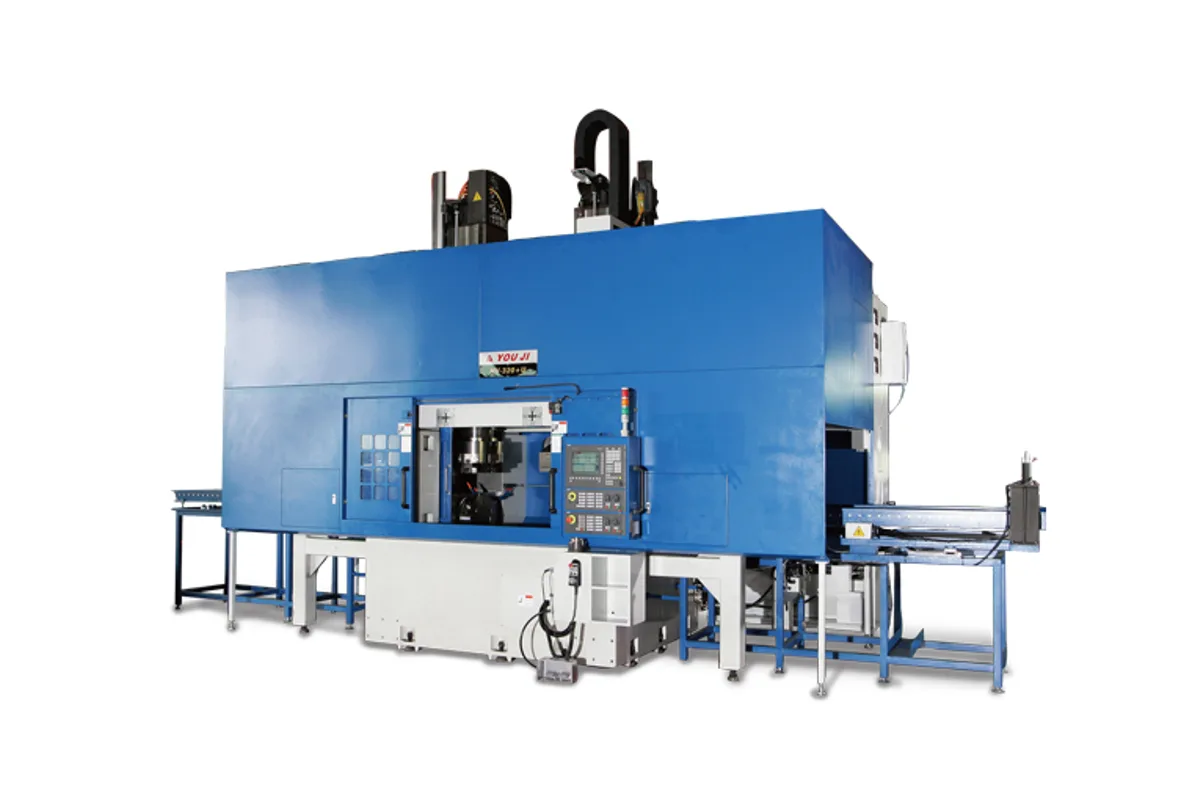

You Ji HV320
Image: image.youji.com, You Ji
Key Specifications
Max Spindle
Spindle Power
chuck size
max swing diameter
max turning diameter
max turning height
How much does the You Ji HV320 cost?
Price estimate
We do not have a price for the You Ji HV320 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The You Ji HV320 combines two lathes in one machine: a CNC vertical turning lathe and an inverted spindle lathe. The catalogue table has one column for each, the inverted spindle labelled OP1 and the vertical turning lathe OP2, so a part is turned on one side, handed over and finished on the other without leaving the enclosure.
Both sides carry identical figures. Each has a 15 in (381 mm) chuck, Ø450 mm (17.7 in) maximum turning diameter, Ø600 mm (23.6 in) swing and 300 mm (11.8 in) turning height. Each spindle has an A2-11 nose, a 37/45 kW (49.6/60.3 hp) motor and a 50-1,600 rpm range, and each is served by a 10-st. turret with Capto C6 tooling.
That is a lot of spindle for the diameter. You Ji's YV500, also a 15 in chuck machine, has an 18.5/22 kW (24.8/29.5 hp) motor; the HV320 doubles the rating on each of its two spindles. The machine is aimed at parts such as brake discs, hubs and gear blanks made in volume from forgings or castings, where both faces need heavy cuts.
It is a large installation for the part size. The floor dimension is 5,450 x 3,800 mm (214.6 x 149.6 in) and the height 4,400 mm (173.2 in), and those figures are printed once for the combined machine. No loading weight is given.
Full Specifications
| Parameter | Value |
|---|---|
| Chuck Size | 15 in (381 mm) |
| Max Swing Diameter | Ø600 mm (23.6 in) |
| Max Turning Diameter | Ø450 mm (17.7 in) |
| Max Turning Height | 300 mm (11.8 in) |
| Spindle Motor Power | 37/45 kW (49.6/60.3 hp) |
| Turret Type | 10-st. (Capto C6) |
| Spindle Nose | A2-11 |
| Max Spindle Speed | 50-1,600 rpm |
| Floor Space | 5,450 x 3,800 mm (214.6 x 149.6 in) |
| Machine Height | 4,400 mm (173.2 in) |
Specifications sourced from image.youji.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Two spindles, OP1 inverted and OP2 vertical, complete both sides in one machine
- 37/45 kW (49.6/60.3 hp) on each spindle with an A2-11 nose
- 10-st. turret with Capto C6 tooling on each side
- Ø450 mm (17.7 in) turning diameter within a Ø600 mm (23.6 in) swing
Limitations
- Floor dimension of 5,450 x 3,800 mm (214.6 x 149.6 in) is large for parts of this size
- Turning height is 300 mm (11.8 in), so only disc-type parts fit
- Top speed is 1,600 rpm; the catalogue lists no loading weight or axis travels
- A single size: the model key lists only the 320
Best For
Frequently Asked Questions
01
You Ji calls it a CNC vertical turning lathe and inverted spindle lathe. The inverted spindle performs the first operation (OP1) and the vertical turning lathe the second (OP2). The catalogue gives each side its own column of specifications, with the same values in both.
02
On each side: 15 in (381 mm) chuck, Ø450 mm (17.7 in) maximum turning diameter, Ø600 mm (23.6 in) maximum swing and 300 mm (11.8 in) maximum turning height.
03
Each spindle has an A2-11 nose, a 37/45 kW (49.6/60.3 hp) motor and a speed range of 50-1,600 rpm. The turret type is listed as 10-st. (Capto C6), meaning ten stations with Capto C6 tool holders.
04
The catalogue lists a floor dimension of 5,450 x 3,800 mm (214.6 x 149.6 in) and a machine height of 4,400 mm (173.2 in) for the complete machine. Weight is not listed, so the foundation plan must come from the maker.
