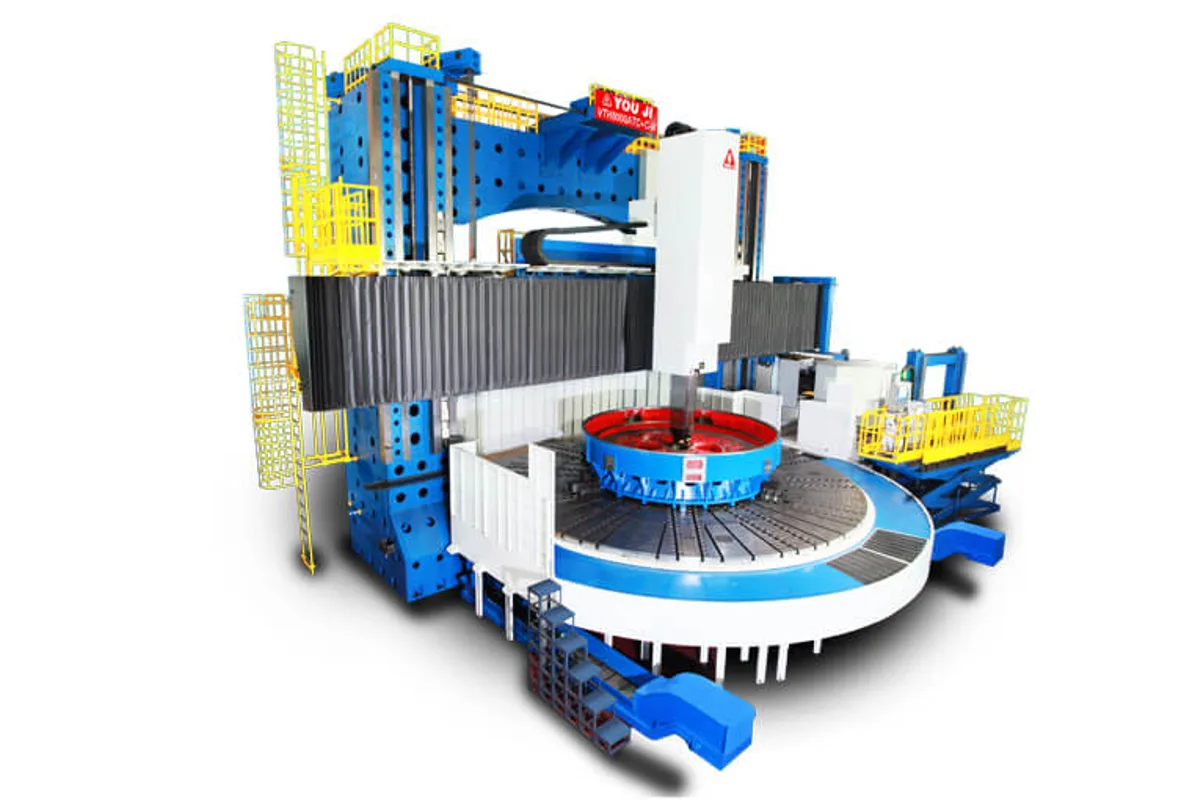

You Ji VTH8000ATC
Image: image.youji.com, You Ji
Key Specifications
Max Spindle
Spindle Power
table diameter
max swing diameter
max turning diameter
max turning height
How much does the You Ji VTH8000ATC cost?
Price estimate
We do not have a price for the You Ji VTH8000ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
You Ji's biggest vertical turning lathe is the VTH8000ATC. The hydrostatic table measures Ø8,000 mm (315.0 in), the maximum turning diameter is Ø8,900 mm (350.4 in) and the maximum loading weight is 300,000 kg (661,376 lb).
Every figure in its column is the largest of its kind in the maker's vertical lathe tables, or equal to the largest. Swing is Ø9,400 mm (370.1 in). Turning height is 2,600 mm (102.4 in). The spindle motor row reads 2 x 100/140 kW (2 x 134.1/187.7 hp), and the table turns at 3-20 rpm.
At the rim of a nine-metre part, 20 rpm is already a high cutting speed, so the narrow range is no handicap for turning. It does shape the tooling plan. Drilling and milling on the ATC+C build rely on the ram spindle, not on table speed, and the catalogue gives no figures for that spindle. Anyone specifying bolt-circle drilling or keyway milling on such a part should ask for them.
The machine stands on 21,000 x 15,000 mm (826.8 x 590.6 in) and is 10,400 mm (409.4 in) high in the standard column height; three raised-column steps and a double ram are listed. Tool shank is BT-50/BT-60. Work for a machine like this is ordered by the piece: large hydro runners, nuclear and petrochemical vessel rings, and the biggest slewing bearings.
Full Specifications
| Parameter | Value |
|---|---|
| Table Diameter | Ø8,000 mm (315.0 in) |
| Max Swing Diameter | Ø9,400 mm (370.1 in) |
| Max Turning Diameter | Ø8,900 mm (350.4 in) |
| Max Turning Height | 2,600 mm (102.4 in) |
| Max Table Load | 300,000 kg (661,376 lb) |
| Spindle Motor Power | 2 x 100/140 kW (2 x 134.1/187.7 hp) |
| Tool Shank | BT-50/BT-60 |
| Max Spindle Speed | 3-20 rpm |
| Floor Space | 21,000 x 15,000 mm (826.8 x 590.6 in) |
| Machine Height | 10,400 mm (409.4 in) |
Specifications sourced from image.youji.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 300,000 kg (661,376 lb) loading weight, the highest in You Ji's vertical lathe tables
- Ø8,900 mm (350.4 in) turning diameter and Ø9,400 mm (370.1 in) swing
- 2 x 100/140 kW (2 x 134.1/187.7 hp) spindle motor row
- 2,600 mm (102.4 in) turning height with three raised-column steps listed
Limitations
- Needs 21,000 x 15,000 mm (826.8 x 590.6 in) of floor and 10,400 mm (409.4 in) of height
- Table speed range of 3-20 rpm
- Catalogue lists no ram spindle, travel or tool magazine figures for the series
Best For
Frequently Asked Questions
01
The table diameter is Ø8,000 mm (315.0 in). Maximum turning diameter is Ø8,900 mm (350.4 in), maximum swing Ø9,400 mm (370.1 in) and maximum turning height 2,600 mm (102.4 in).
02
300,000 kg (661,376 lb), carried by the hydrostatic table bearing that defines the VTH series. The VTH7000ATC is rated 250,000 kg (551,146 lb).
03
The spindle motor row reads 100/140 kW x 2, written here as 2 x 100/140 kW (2 x 134.1/187.7 hp), with a table speed range of 3-20 rpm.
04
ATC (automatic tool changer), ATC+C (ATC plus C-axis function), three column height increases and 2R (double ram). The tool shank row is BT-50/BT-60.
