YCM NH630B

Q: How much does the YCM NH630B cost?

The price estimate for the YCM NH630B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-nh630b#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

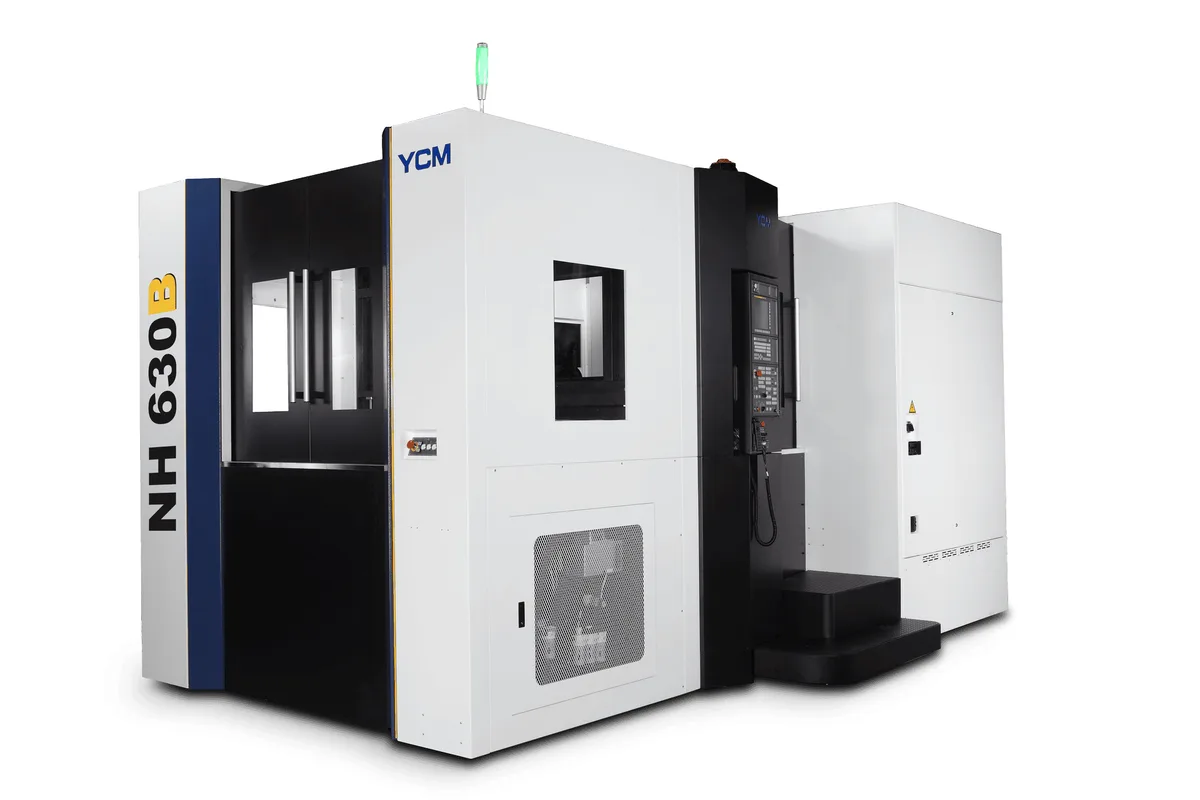

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

10,000 rpm; opt. 8,000 rpm

Spindle Taper

BBT50; opt. CAT

Tool Capacity

40 tools; opt. 60 / 120 tools

Table Size

630 x 630 mm (24.8 x 24.8 in)

Spindle Power

45 kW (60 hp); opt. 55 kW (74 hp)

x axis travel

1,050 mm (41.34 in)

How much does the YCM NH630B cost?

Price estimate

Uncertain

We do not have a price for the YCM NH630B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A built-in motorized spindle with 623 Nm of torque sits at the centre of the YCM NH630B, a 50-taper horizontal machining center with 630 x 630 mm (24.8 x 24.8 in) pallets. The spindle is rated 45 kW (60 hp) at up to 10,000 rpm, and the travels are 1,050 mm (41.34 in) in X and 850 mm (33.46 in) in both Y and Z.

YCM drives the Y axis with two drives so that the headstock is moved at its centre of gravity. On a horizontal machine the head is the heaviest thing travelling vertically, and driving it centrally keeps it from rocking as it accelerates, which protects both finish and tool life in heavy cuts. The base is a one-piece T-shaped casting, the column is dual-wall, and the guideways are oversize roller type.

Each pallet takes 1,200 kg (2,646 lb), and the maximum workpiece is ø1,100 x 1,000 mm (ø43.31 x 39.37 in). The B-axis table indexes in 1° steps as standard, with 0.001° as the option for full fourth-axis positioning. Pallets change in 12 sec under servo drive.

The feed rows carry two sets of figures: rapids of 60 m/min with 40 m/min in brackets, and cutting feed of 1~30,000 mm/min with 1~20,000 mm/min in brackets. The page does not say which configuration the bracketed values apply to. An 8,000 rpm spindle and 55 kW (74 hp) appear as options. Tools weigh up to 25 kg (55.12 lb), in magazines of 40, 60 or 120. The machine weighs 24,000~25,500 kg (52,910~56,217 lb).

Full Specifications

Parameter	Value
Max Spindle Speed	10,000 rpm; opt. 8,000 rpm
Spindle Motor Power	45 kW (60 hp); opt. 55 kW (74 hp)
Spindle Taper	BBT50; opt. CAT
X Axis Travel	1,050 mm (41.34 in)
Y Axis Travel	850 mm (33.46 in)
Z Axis Travel	850 mm (33.46 in)
Distance Spindle Center to Table Top	100~950 mm (3.94~37.4 in)
Distance Spindle Nose to Table Center	150~1,000 mm (5.91~39.37 in)
Table Size	630 x 630 mm (24.8 x 24.8 in)
Max Table Load	1,200 kg (2,646 lb)
Max Workpiece Size	ø1,100 x 1,000 mm (ø43.31 x 39.37 in)
Table Height From Floor	1,325 mm (52.17 in)
Table Indexing Angle	1°; opt. 0.001°
Pallet Change Time	12 sec
Rapid Traverse Xyz	60/60/60 (40/40/40) m/min
Cutting Feed Rate	1~30,000 (1~20,000) mm/min
Tool Capacity	40 tools; opt. 60 / 120 tools
Max Tool Weight	25 kg (55.12 lb)
Max Tool Size	40T/60T/120T: ø125 x 500 (ø250 x 500) mm
Machine Weight	24,000~25,500 kg (52,910~56,217 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Built-in motorized BBT50 spindle with 45 kW output and 623 Nm of torque
Y-axis dual drive system that moves the headstock at its centre of gravity
1,200 kg (2,646 lb) per pallet with a ø1,100 x 1,000 mm (ø43.31 x 39.37 in) work envelope
12-second servo driven pallet change
Tools up to 25 kg (55.12 lb) and ø250 x 500 mm without adjacent tools

Limitations

Table indexing is 1° as standard; 0.001° is an option
The lower bracketed feed figures, 40 m/min and 1~20,000 mm/min, are not explained on the page
Machine weight of 24,000~25,500 kg (52,910~56,217 lb) calls for a prepared foundation
Standard magazine holds 40 tools; 60 and 120 are options

Best For

Cast iron and steel housings, gearboxes and valve bodies up to 1,200 kg (2,646 lb) Heavy boring and face milling with 50-taper tools Multi-face machining on tombstones within ø1,100 x 1,000 mm

Frequently Asked Questions

01 What spindle does the NH630B have?

A built-in motorized spindle with a BBT50 taper, 10,000 rpm maximum speed and 45 kW output delivering 623 Nm. The options column lists 8,000 rpm, 55 kW (74 hp) and a CAT taper. Micro oil-air lubrication and an oil jacket cooling system are fitted.

02 How much can each pallet carry?

1,200 kg (2,646 lb) on a 630 x 630 mm (24.8 x 24.8 in) pallet. The maximum work dimensions are ø1,100 x 1,000 mm (ø43.31 x 39.37 in), and the pallet surface is 1,325 mm (52.17 in) above the floor.

03 What is the Y-axis dual drive?

The headstock is driven by two drives at its centre of gravity. YCM says the dual-driven design restrains vibration and delivers high speed, high quality machining while increasing machine performance and tool life.

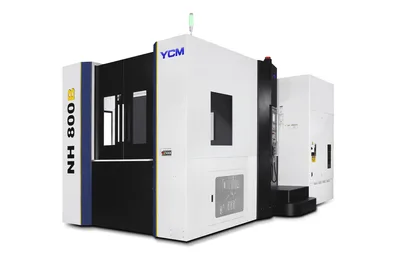

04 How does the NH630B compare with the NH800B?

The NH800B is the next size: 800 x 800 mm (31.5 x 31.5 in) pallets rated for 2,000 kg (4,409.2 lb) and travels of 1,300 mm (51.18 in) in X and 1,100 mm (43.31 in) in Y and Z. The NH630B has 1,050 mm (41.34 in) of X and 850 mm (33.46 in) of Y and Z.
